Avid Adrenaline Rack mount BoB interface, sn YQJ443191

Avid Model 0020-03332-02 Rev C in VVG condition. Removed from a small working corporate suite. This unit does NOT have the HD expansion board, but does have SDI ports.
Disponibilité: En stock

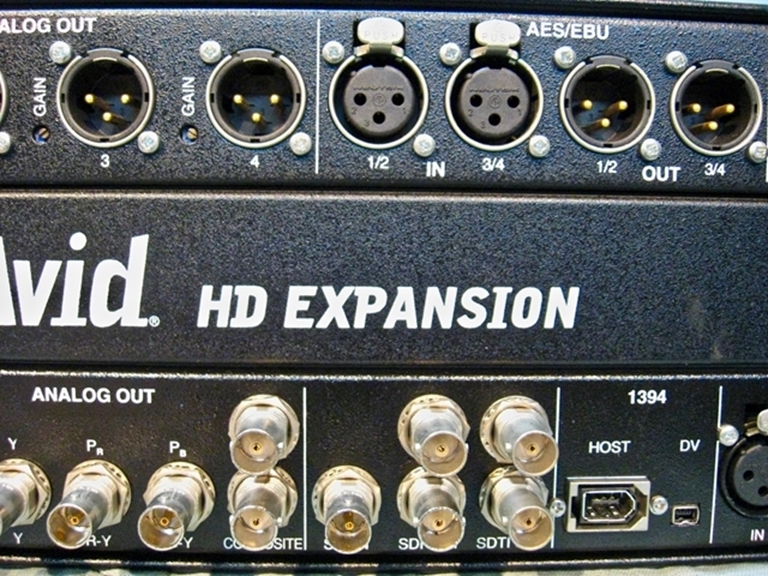

The rackmount interface for Avid Editing systems, this unit provides a central connection point for all of your editing sources, with both Digital and Analog inputs and outputs.

This unit checks out to the degree that it can be tested, however without the rest of the editing system or a dongle, there is no warranty or guarantee of any kind, and this item is being sold strictly AS IS.

From Avid:

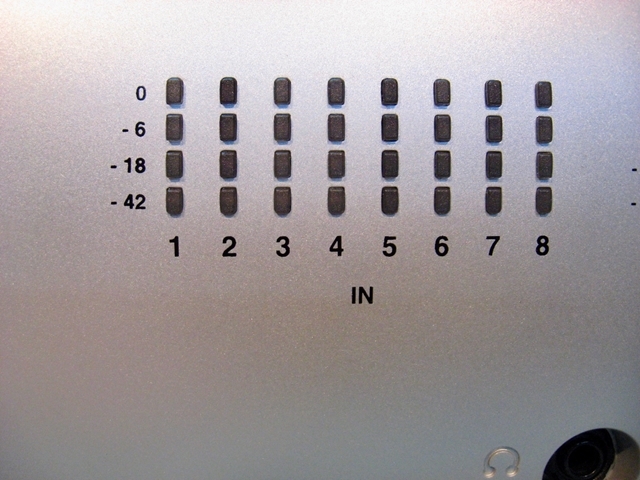

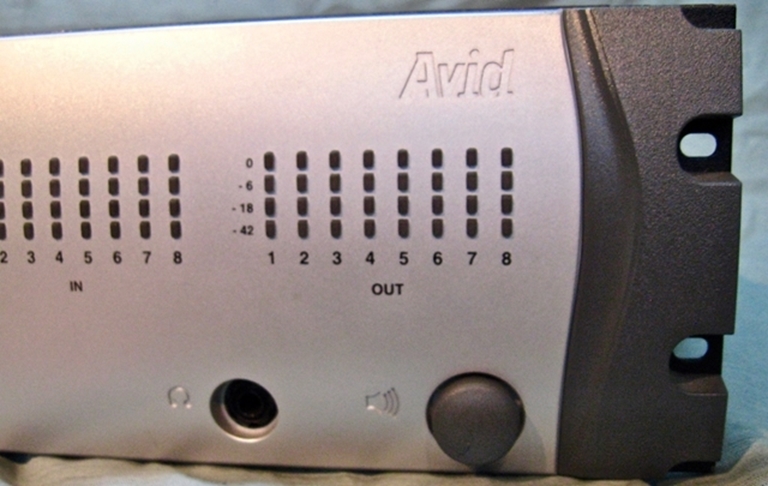

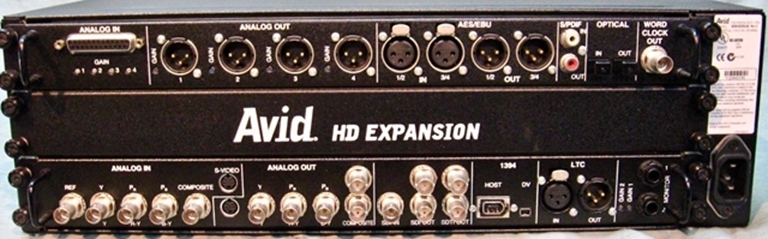

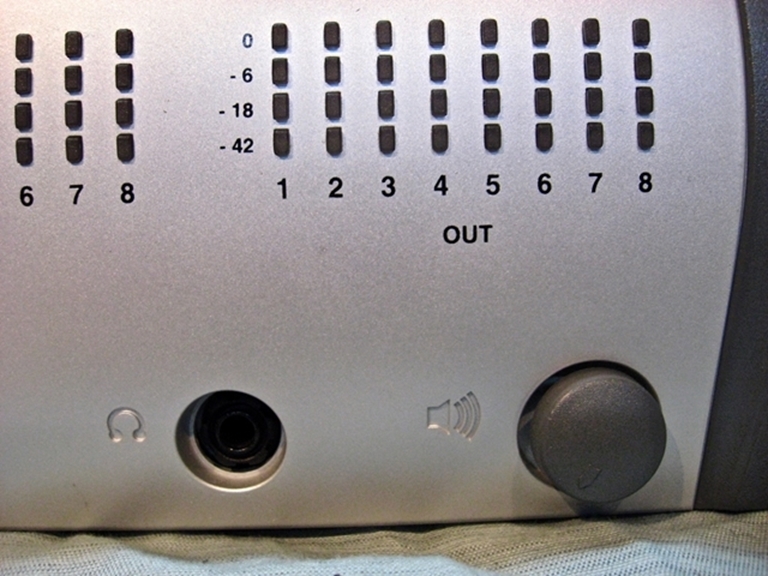

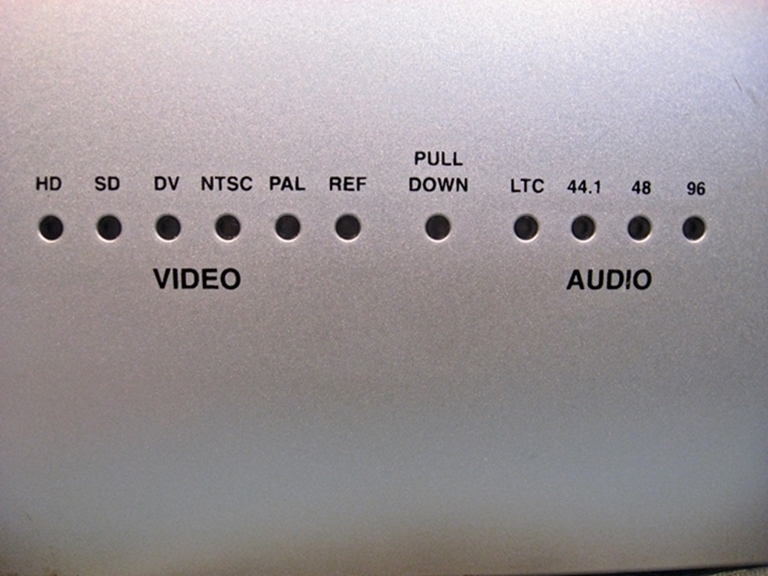

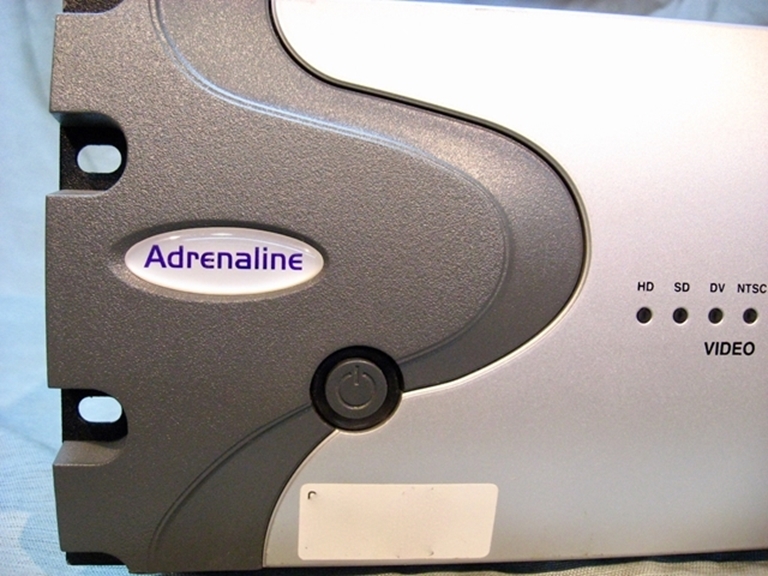

Video editing and composition just got a whole lot easier with the Avid Adrenaline Breakout Box digital video editor. The system includes a standard I/O board for video and high-definition I/O board called the Avid DNxcel. A four-channel audio board is also included with the Breakout Box edition. The front panel includes a series of status LEDs along with audio meters, and the power and volume controls with a headphone jack. In the rear panel, there are inputs for a variety of video and audio connections, including a monitor connection, and eight channels of optical ADAT. Simple to use, the Avid Adrenaline Breakout Box saves space when setting up that editing system at home or in the studio.

Model Details

It’s everything you expect from the industry’s leading nonlinear editing system, but it’s like nothing you’ve ever seen. The revolutionary Avid Adrenaline Digital Nonlinear Accelerator (DNA) delivers uncompressed SD video over a standard FireWire® connection – and built-in HD* video expandability gives you room to grow. And there’s lots more to shout about, including:

  • Real-time, multistream uncompressed SD finishing
  • Mixed resolutions in a single timeline
  • OpenGL for high-quality, real-time effects and accelerated rendering
  • 10-bit video I/O, 24-bit 96 kHz audio hardware
  • 10-bit automatic color correction
  • Native support for ABVB (AVR) and Meridien™
  • (JFIF) media
  • 24p and full Film Composer® editing capability
  • Windows XP and Mac OS X software included
  • MXF, AAF, AVX™, OMF® support
  • Media sharing/distribution and facility-class services via Avid Unity™ solutions
  • Industry-leading codec technology, A/D and D/A conversion, analog filtering and signal integrity
  • Features:

Video I/O - Standard Definition

  • 10-bit SMPTE 259M SDI serial digital I/O

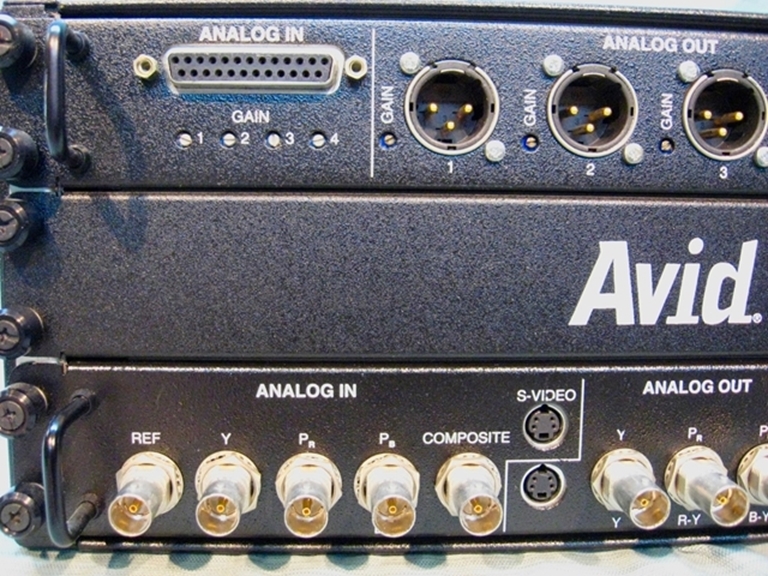

  • Component YPbPr, S-Video, and composite I/O
  • DV I/O with real-time analog-to-DV and DV-to-analog conversion
  • Uncompressed PAL and NTSC ITU-R-601 formats
  • Sync reference input
  • Serial deck control and 1394 deck control

HD Option Specifications

  • High-definition SMPTE 292M SDI video I/O
  • Innovative production-quality compressed HD formats at 145 MBit (8-bit 4:2:2) and 220 MBit (8/10-bit 4:2:2) in the following formats:
    • 1080I at 30, 29.97, 25 Hz
    • 1080 PsF at 30, 29.97, 25, 24, 23.976 Hz
    • 720p at 60, 59.94, 50 Hz

Audio I/O

  • 48 kHz, 44.1 kHz, and 32 kHz (hardware supports up to 96 kHz)
  • 16 or 24-bit resolution

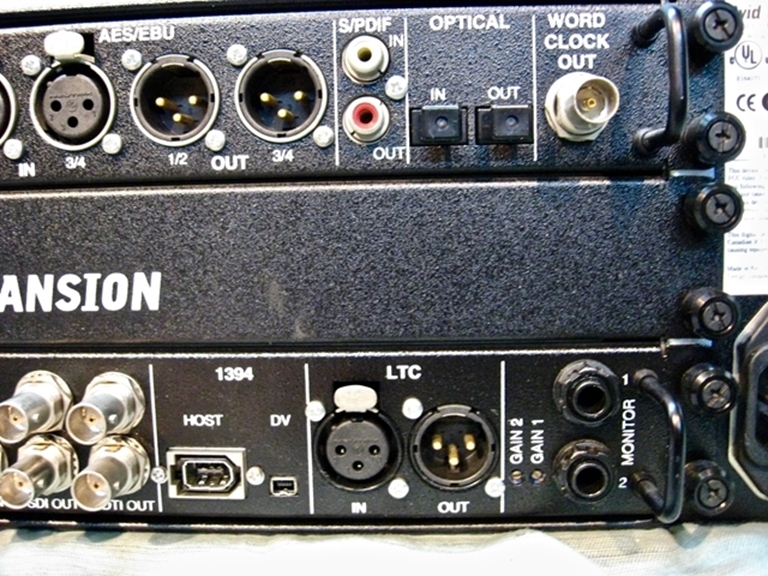

  • 8 channels ADAT audio I/O or stereo Toslink optical S/PDIF
  • 4 channels AES/EBU digital audio I/O
  • 4 channels RCA analog audio inputs
  • 4 channels XLR analog audio inputs
  • Separate stereo monitor output
