Crown International Tape deck Model LL802: 1/2 track Stereo Head assembly.

Parts from Crown International (yes that Crown) Model 700 and 800 series quarter inch decks. Head stack removed from an 800 series, model LL802. Windings tested for continuity only. See full description.
Fabricant: Crown
Appelez-nous pour connaître le prix

This head assembly was removed from a Crown Model LL802, a .250" , 3 speed, 1/2 track STEREO machine.

The assembly includes the Playback, Record and Erase heads, all 4 stationary guides, a tape sensor block and the orignal leads with connectors.

Replacing the original wiring is recommended.  The leads from the Top Play head windings are missing.

The silver plated 5 pin AMPHENOL connectors are tarnished on these assemblies.

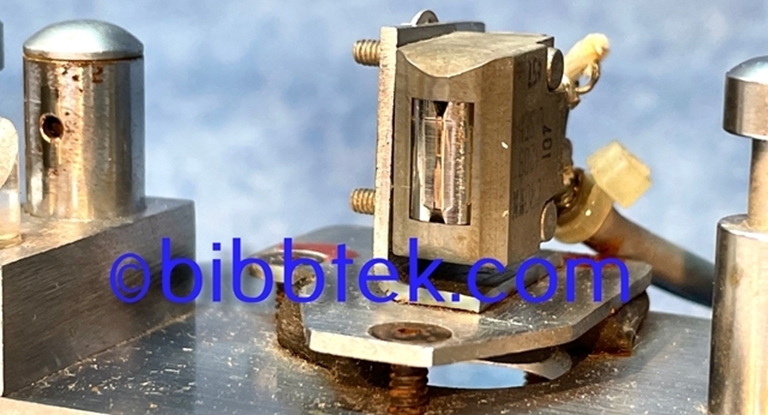

All 3 heads or covers are marked Crown, but it's likely they were still using heads manufactured by Nortronics and Brush companies.  The Erase head is marked SEH4.

DCR readings with Fluke DMM on top and bottom windings:

Play 112.2 and 114Ω

Record 119.3 and 120.4Ω

Erase 30 and 29.6Ω
