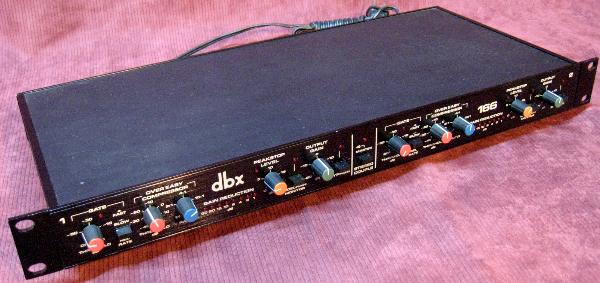

DBX 166 Compressor/Limiter

Good condition. Separate detector input enables an outboard processor to control compression or gating. Stereo or dual-mono operation of gating and compression, with hardwire bypass for each channel.

Fabricant: DBX

Disponibilité: 1 en stock

Appelez-nous pour connaître le prix

Quantité:

SPECIFICATIONS

Frequency Response: 20Hz-20kHz, ±0.5dB

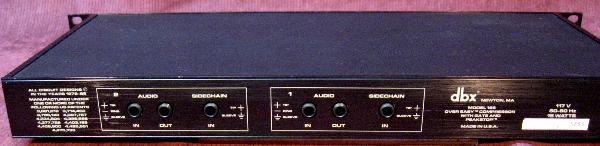

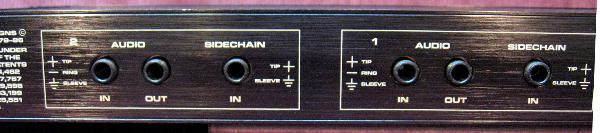

InputRear Panel: Balanced: 25k ohms; Unbalanced: 18.5k ohms
Maximum Input Level: + 24dB ohms
Connector Type: 1/4" TRS Phone Jack
Detector: Unbalanced: 6.8k ohms
Maximum Input Level: +24dBu
Connector Type: 1/4" Phone Jack
OutputRear Panel: Unbalanced 22 ohms
Minimum Load Impedance:    >600 ohms
Maximum Output Level: +21dBu into 600 ohms
Connector Type: 1/4" Phone Jack
Distortion THD:    <0.2%, Any Amount of Compression @ 1kHz
                   IMD:    <0.2% SMPTE
Equivalent Input Noise: -85dBu
Dynamic Range: 106dB
Gain Adjustment: -20 to +20dB
Threshold Range: Compressor: -40 to +20dBu; Gate: -60 to+10dBu; PeakStop: 0 to +21dBu
Threshold Characteristics: OverEasy
Compression Ratio: 1:1 to infinity:1; >60dB Maximum Compression
Attack Time: Program Dependent: Compressor: 15ms for 10dB, 5ms for 20dB, 3ms for 30dB; Gate: 2ms for 28dB (70% of Return to Unity Gain)
Release Time: Compressor: 8ms for 1dB, 80ms for 10dB, 400ms for 50dB; 125dB/sec Rate; Gate: Slow-100ms for 1dB, FasMOOms for 100dB

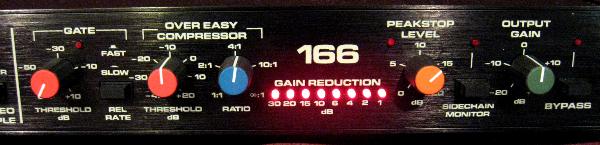

Controls: Stereo Couple Switch, Bypass Switch, Gate: Fast/Slow Switch, Sidechain Switch, Gate Threshold Knob, Compressor Threshold Knob, Ratio Knob, PeakStop Level Knob, Output Gain Knob
Indicators: Above Threshold for Gates: Red; Threshold for PeakStops: Green; Bypass: Red; Slave: Red
Metering: 8 Segment LED Bargraph Display Indicating Gain Reduction
Stereo Coupling: True Power Summing

Connector Type: Internal Strapping by Front Panel Stereo Couple Switch

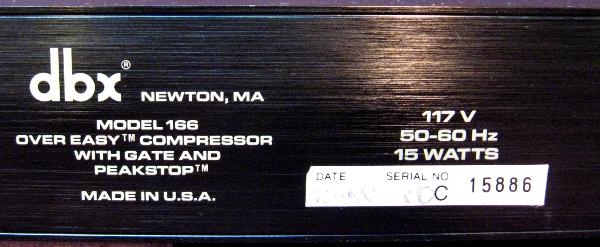

Power Line Requirements: 90-130VAC,50/60Hz; Switchable to 200 - 240VAC

Power Consumption: 15W
