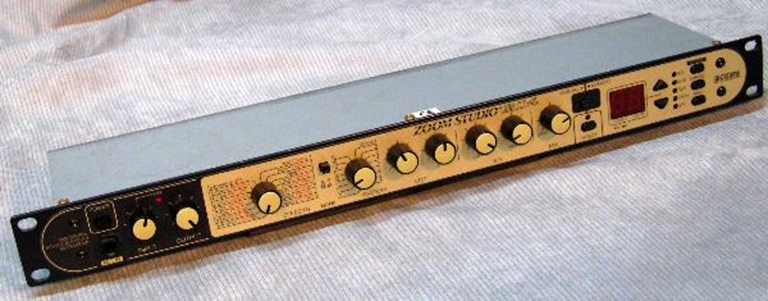

Zoom 1204 Multi-Effects Box

Zoom 1204 reverb/delay/chorus/flanger/gate, very flexible multi effects processor with MIDI, VVG condition w original Power supply.
Disponibilité: 1 en stock
€114,92
€87,72

FEATURES

  • 512 preset effect programs (32 effects x 16 patterns). Memory capacity for storing up to 100 of your own effect settings, resulting in a total of 612 available effect sounds
  • Easily changeable parameters let you create your own effect settings.
  • Manual mode allows editing parameters in real time while using an effect. Memory mode lets the user instantly choose any of 100 stored effects.
  • Control by external MIDI equipment possible.
  • Integrated 18-bit A/D and D/A converter with sampling frequency of 44.1 kHz achieves professional sound quality.

Multitude of different effects, some examples of which are:

  • REVERB - Opera House - Orchestra - Reverb with sonic character of old wooden hall
  • REVERB - Virtual Room - Studio - Adds room ambience to dry sound such as drums
  • REVERB - Distance Hit - Percussion - Powerful bass reverb for percussion
  • VOICE & VOCAL - Vocal Gate - Reverse - Exotic echo for vocals
  • EFFECT VARIATIONS - Organ Rotary Fast - Rotary - Distinct rotary sound
  • EFFECT VARIATIONS - Deep Rev Cho - Chorus+Reverb - Serial connection of chorus and deep reverb
  • HIGH GRADE REVERB - Air Simulation - Session - Gives a feeling of being up-close to the sound source
  • HIGH GRADE REVERB - Bright Plate - Plate - Surround-type sound with prominent high end
  • EFFECTS & DELAY/ECHO - Robot Voice - Delay - Turns a microphone signal into a robot voice
  • EFFECTS & DELAY/ECHO - Tremolo - Tremolo - Tremolo with delay

SPECIFICATIONS

• Number of preset programs: 512 (16 effects x 2 banks x 16 patterns)

• Program memory capacity: 100 settings (overwrite and store), 612 programs

• A/D converter: 18 bit, 128 times oversampling

• R/A converter: 18 bit, 128 times oversampling

• Sampling frequency: 44.1 kHz

• Frequency response: 10 Hz - 20 kHz

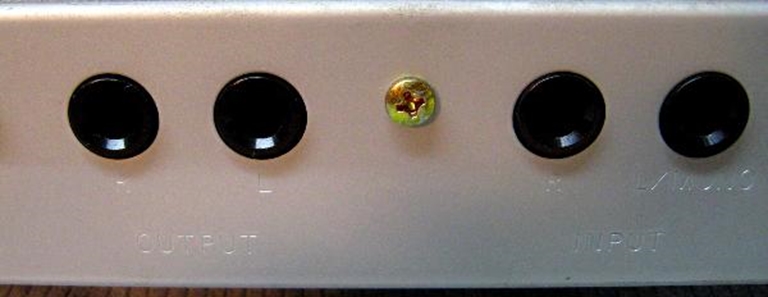

• Inputs: Rear inputs (L.'MONO, R):  Standard monaural phone jack x 2
                                                         Reference input level: -10 dBm to +4 dBm
                                                         Input impedance: 10 kilohms (MONO), 20 kilohms (STEREO)
               MIC input:                           Standard monaural phone jack x 1
                                                         Reference input level: -56 dBm to -36 dBm
                                                         Input impedance: 10 kilohms
• Outputs: Rear outputs (I.,, R):       Standard monaural phone jack x 2
                                                         Reference output level: -10 dBm lo +4 dBm
                                                         Input impedance: 2 kilohms or less

• Control connector: MIDI IN

• Power requirements: 9 V DC, 300 mA (from supplied AC adapter)
