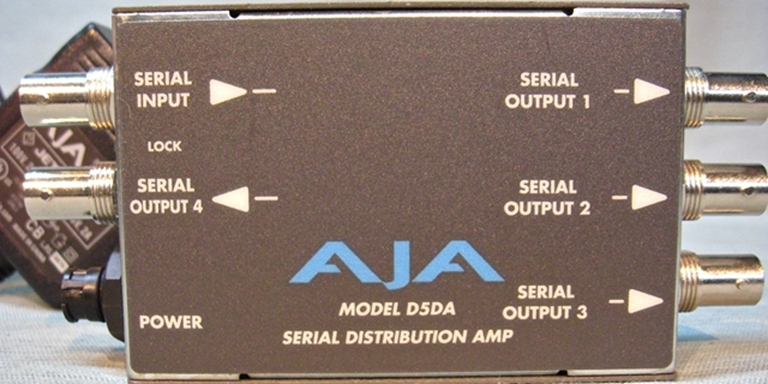

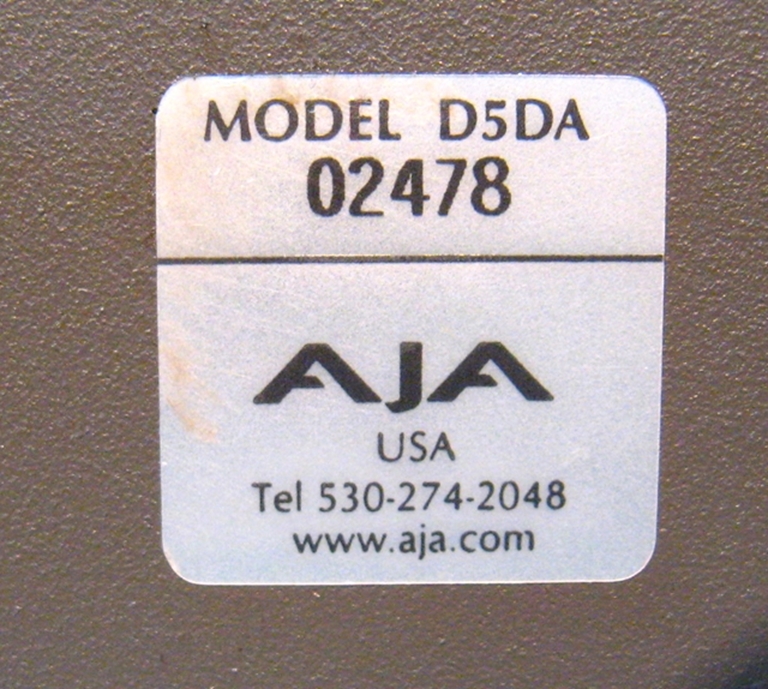

AJA Model D5DA SDI DA, sn02478

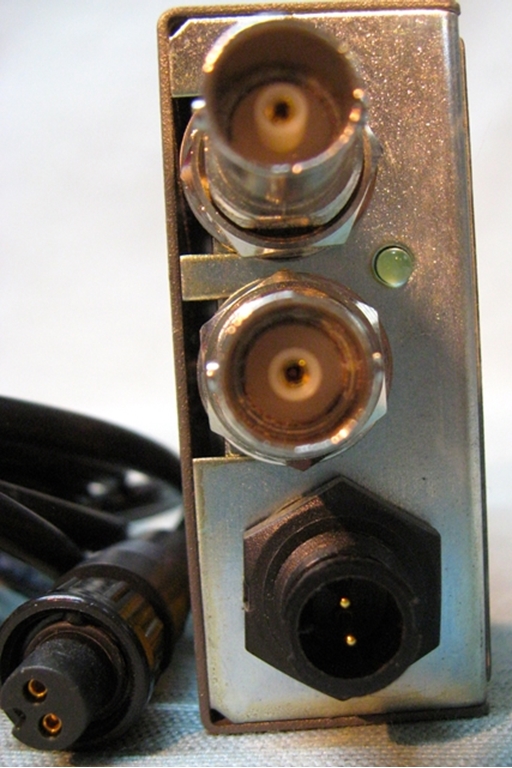

These boxes are great solutions in a variety of environments, perfect for a field kit or in a Post Production Rack. All BNC Inputs and Outputs, with the original Aja Locking power supply.

Here are the specs from Aja:

The D5DA is a multi-format, 1x4 reclocking SD-SDI Distribution Amplifier. The D5DA can be used as a low cost SD-SDI DA or repeater. The SD-SDI input is re-clocked and equalized to 300 meters of cable. In addition, the multi-standard feature allows the D5DA to automatically adapt to 143, 177, 270, or 360Mb SD-SDI inputs.

8 and 10 bit

SDI-SDI Reclocking Loop

 Specifications
Formats: 143, 177, 270, 360 Mb, auto select
Input: 1 SDI (SMPTE 259M), 1xBNC
Outputs: 4 SDI (SMPTE 259M), 4x BNC
Equalizing, Reclocking
Return Loss: >15 dB-270 MHz (Input and Output)
Size: 5.1” x 2.4” x 1” (131 x 61 x 25 mm)
Power: +5V DC regulated power, 2 Watts
Requires Power Supply
