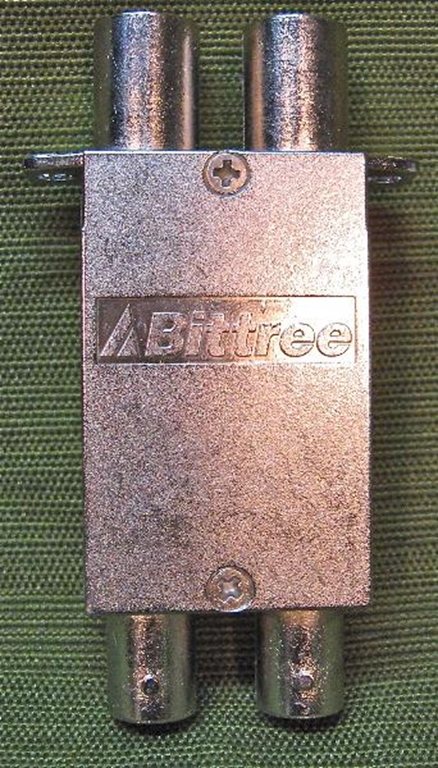

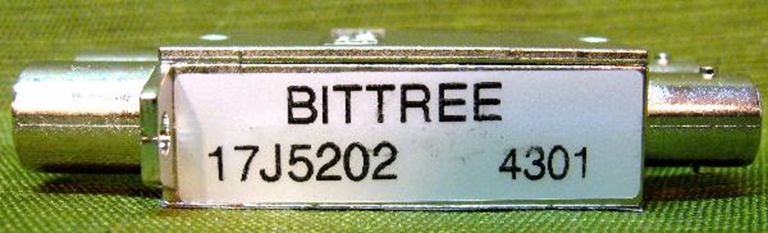

Bittree 2WNHD/S Dual Video Patch jacks

WECO patchbays are designed to meet all of your patching needs, from high bit-rate digital signals to base-band analog. Bittree WECO video patchbays are ideal for high-bandwidth applications such as HDTV, SDI, AES and high-resolution computer graphics, as well as conventional analog applications such as monitor routing, primary routing, re-routing, router backup and video distribution.

These jacks are of the highest quality and will provide superior performance in any video application.   Currently retailing for over $40 per jack, save yourself a bundle and build a very inexpensive high bandwidth panel.

Here's a condensed list of the features:

• Normalling
• 30,000 minimum insertion cycles
• True 75ohm impedance with low return loss

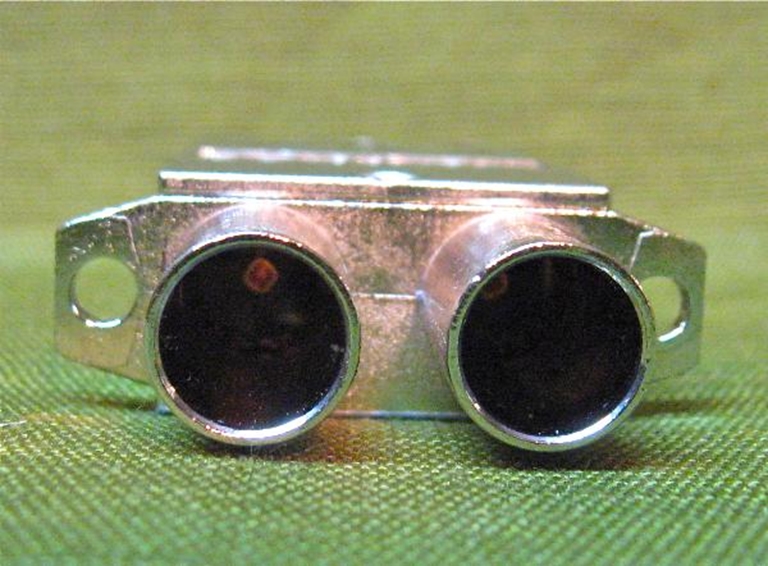

• WECO standard (.090") center pin
• HD Bandwidth (DC to 3 GHZ)
• HD/SDI, SD/SDI, 3Gb/s and 3-D applications

• SMPTE 292M and SMPTE 424M compliant

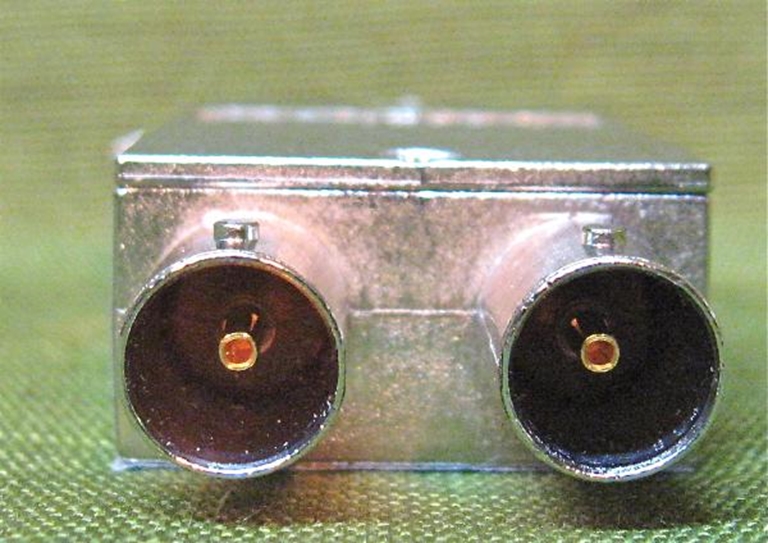

• BNC rear connections
