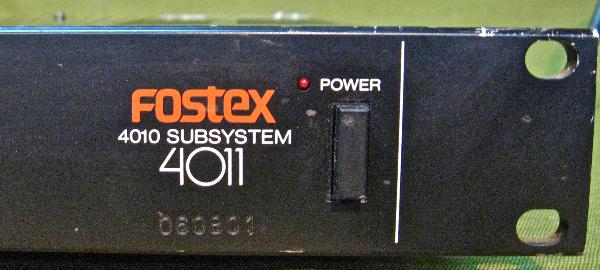

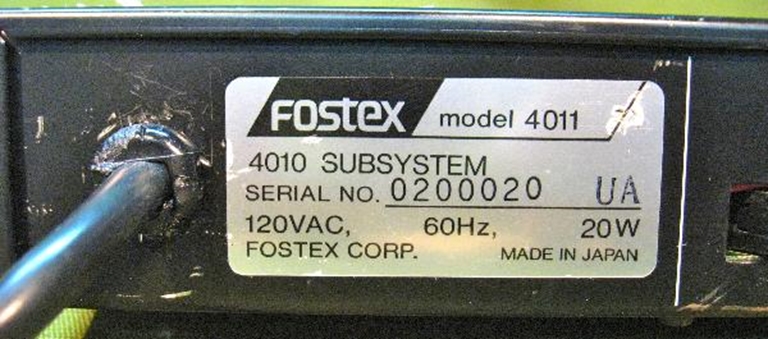

Fostex Model 4011 Time Code Gen/Reader

This unit is in good cosmetic condition, with some scratches to the top cover and mounting ears.   Removed from a working edit suite, this piece powers up and all of the functions appear to be working, but lacking the other components for this system we are unable to perform an exhaustive test.

Selections from the Fostex Manual:

Model 4011 is a sub-system for the Model 4010 Time Code Genera­tor/Reader possessing three separate functions - character inserter, VITC reader, VITC generator - which conform to the SMPTE/EBU/FILM spec time codes.
As the Model 4011 has been developed strictly as the sub-system for the Model 4010, it can perform in full only when connected to the Model 4010 (The character inserter and VITC generator can perform only when connected to the Model 4010. Therefore, it will not operate when connec­ted to a time code generator/reader other than the Model 4010. The Model 4011 11 VITC reader" section only can operate singly without connecting to the Model 4010.)

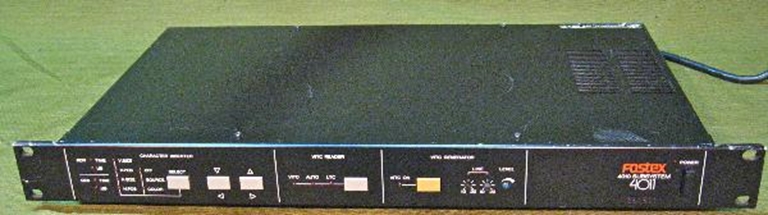

Front Panel

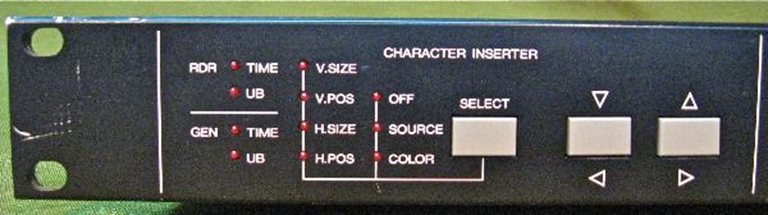

(1) Character inserter select switch [SELECT]

(2) Character inserter select indicator
[OFF/SOURCE/COLOR/V.SIZE/V.POS/H.SIZE/H.POS]

Insert source select indicator [RDR TIME/UB, GEN TIME/UB]

Insert parameter select switch [V <J ]

Insert parameter select switch [6 I>]

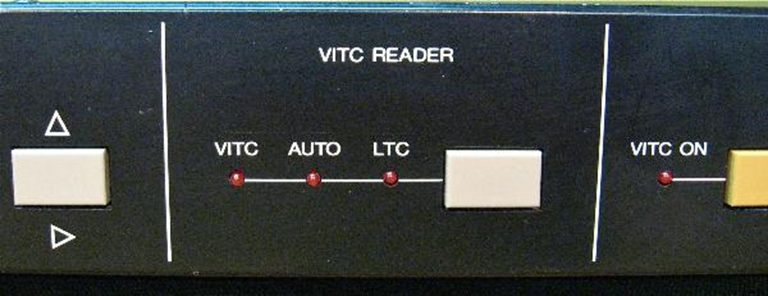

VITC reader select switch

( 7 )  VITC reader  select indicator [VITC/AUTO/LTC]

( 8 )   VITC generator select switch

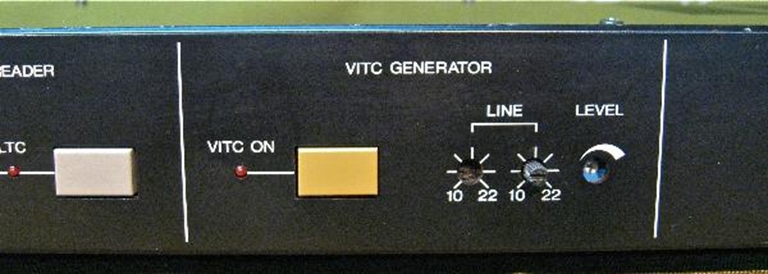

( 9 ) VITC indicator [VITC ON]

( 10 )  LINE selector switch [LINE] ( 11)  VITC level trimmer [LEVEL]

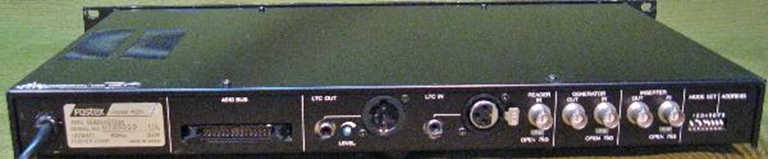

REAR PANEL

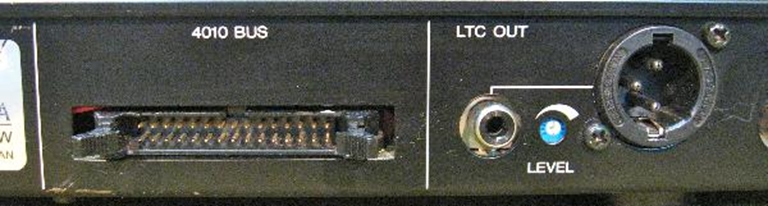

4010 buss connector [4010 BUS]

Character inserter input jack [INSERTER IN]

Character inserter input impedance selecter switch [OPEN 75Q] (16) Character inserter output jack [INSERTER OUT]

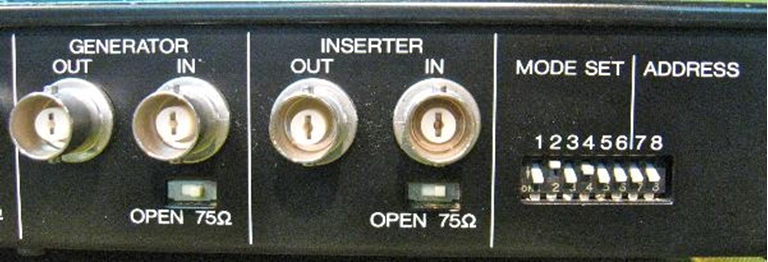

Generator input jack [GENERATOR IN]

Generator input impedance selector switch [OPEN 75Q] (19) Generator output jack [GENERATOR OUT]
Reader input jack [READER IN]

Reader input impedance selector switch [OPEN 75Q] (22) LTC input jack [LTC IN]
LTC output jack [LTC OUT]

LTC output level trimmer [LEVEL]

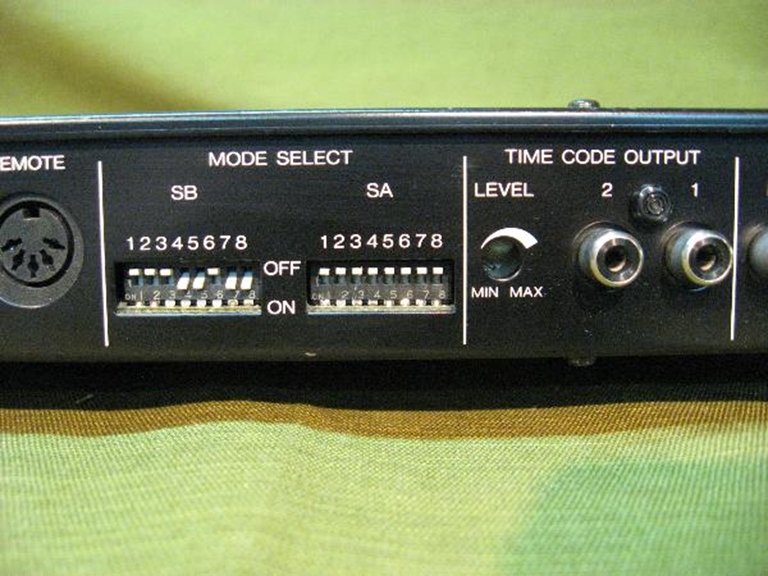

Mode set/address switch [MODE SET/ADDRESS]
