Garner (Audiolab) 2500 Industrial Demagger/Degausser **

A Garner CDS-2500A conveyor belt degausser, (sold under the Audiolab name).   This is one of the few units on the market that has the power to erase Digital Video tapes, and other digital media, up to 2400 Oersted.  It has had very little use and works perfectly.

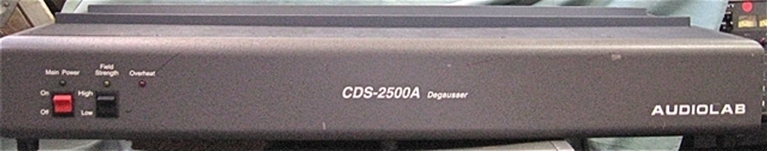

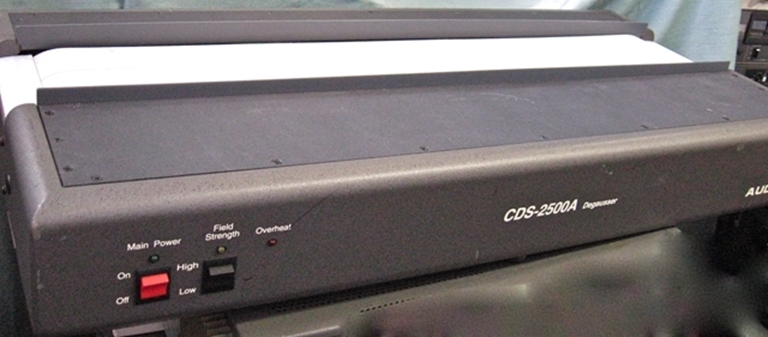

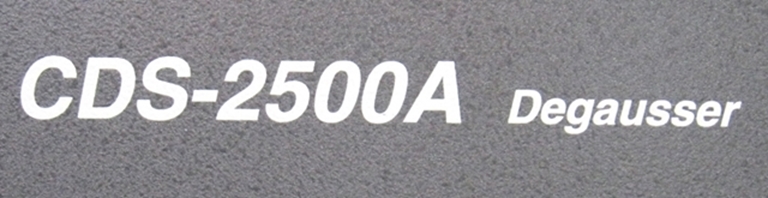

Garner  Model  CDS-2500A
Weight  129 lbs
Dimensions   16.5"H x 36.5"W x 6"D

Due to the weight and size, this item is available for local pickup by a carrier of your choice.   We cannot directly provide any crating or shipping for this item.

Here are the technical details from the manufacturer:

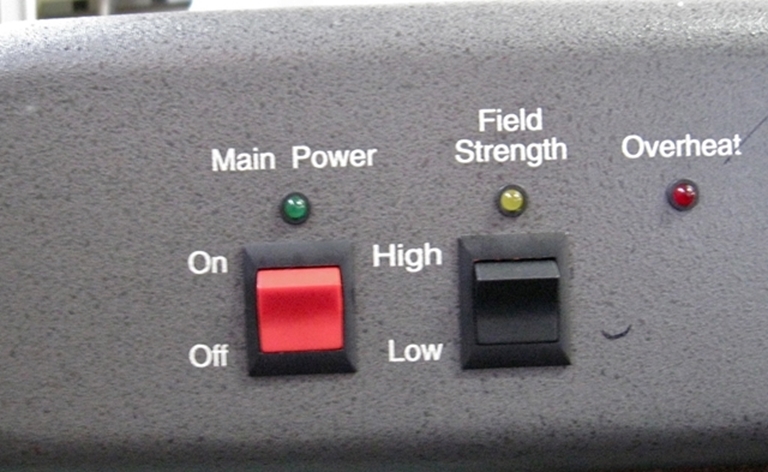

The Garner CDS-2500A Professional Degausser is designed to erase all formats of media that are up to 6 inches in width. The degaussing field strength switch provides the option to change between high and low field strengths. It is like having two degaussers in one. On low, the CDS-2500A is a continuous duty degausser capable of degaussing over 90 VHS tapes per minute without overheating. On high, the CDS-2500A is a high energy degausser capable of erasing the newest metal tape formats of up to 2400 Oersted.

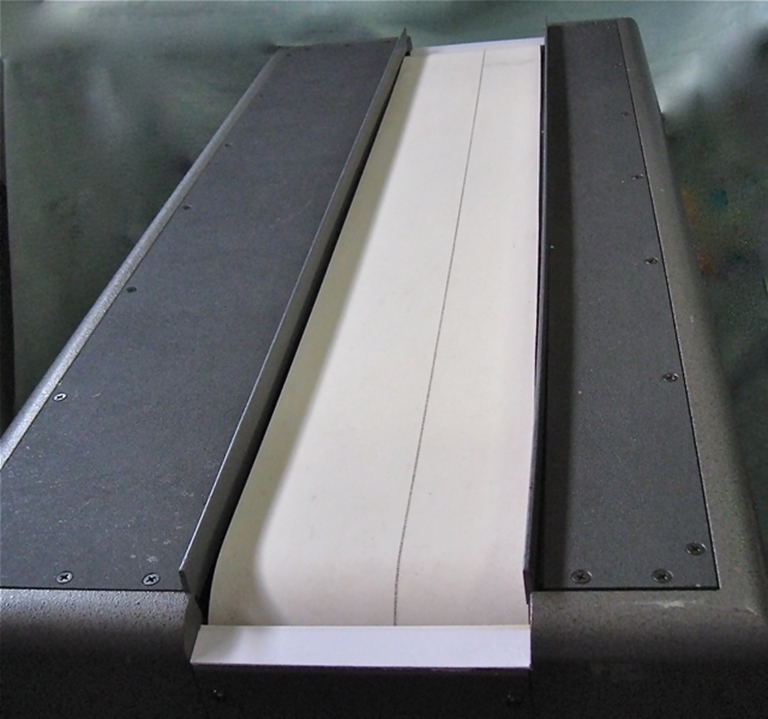

To start erasing, simply press the "on" button and place the media on the conveyor belt. The conveyor belt will transport the media through the strong horizontal and vertical degaussing fields produced by two degaussing coils placed at 90 degrees from each other ("V" coil design). For added convenience, the conveyor belt speed can be easily adjusted up to 60 feet per minute. At this rate, the CDS-2500A will erase more than 90 VHS tapes per minute. For more efficiency, add the optional FH-4 feed hopper.



Degaussing Coil: For long-lasting performance, the degaussing coils are vacuum dipped and baked. The vacuum process draws the air out of the coil allowing the potting compound to coat each winding of the coil. The coil is then baked "rock hard" to eliminate vibrations that could eventually lead to shorts in the windings of the coil. In addition, two thermal detection units have been wound into each coil to ensure that the operating temperature is safely maintained. When in operation, the coils are cooled by fans which are automatically turned on and off by the signals being sent from the thermal detection units.



MS-25 Magnetic Shield Option: For customers requiring an enclosed degaussing station, we have designed a magnetic shield that completely encloses the conveyor belt and magnetic fields. The MS-25 magnetic shield option reduces the magnetic field surrounding the degausser below the threshold limit values specified by the American Conference of Governmental Industrial Hygienists (ACGIH).


FH-4 Feed Hopper Option: The Garner model FH-4 is an automatic cassette feed hopper that attaches to the Garner CDS-2500A degausser. This low cost option dramatically increases the speed and simplicity of erasing large quantities of media. While the FH-4 was originally designed for VHS cassettes, the FH-4 can be adjusted to fit many other formats as well.

Made of stainless steel, the FH-4 is rugged, designed for continuous use, and is easily installed using existing hardware; Low - 2500, High - 3700 Gauss; Belt width: 6 inches (15.2 cm); and Tapes per minute: 90 - VHS, 45 - Metal Particle

Additional Information:

Degauss Per minute:  90 - VHS, 45 - Metal Particle

• Magnetic Field   Low - 2500, High - 3700 Gauss


• Types of Media
• DVCam
• DVCPro
• VHS
• 8mm
• S-VHS
• 3590
• Audio Cassettes
• DLT
• Beta SP
• Digital Beta Cam
• SuperDLT I
• LTO 4
• LTO 3
• LTO 2
• LTO 1
• DAT
• Super DLT
• 3480
• 3490
• D1-5
