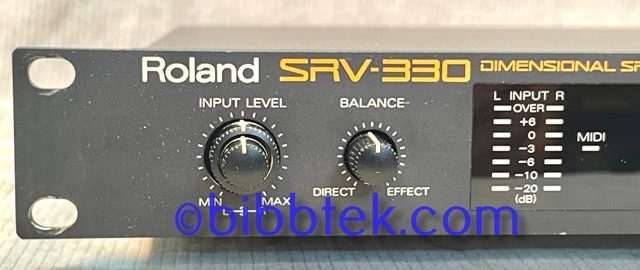

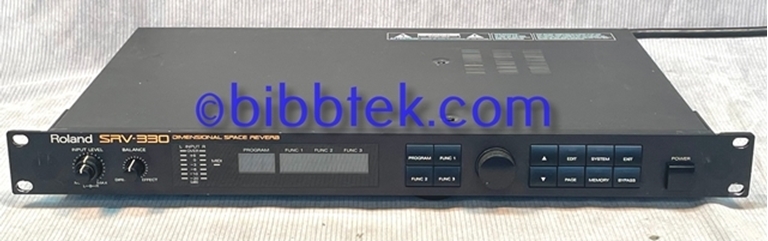

Roland SRV-330 Dimensional Reverb, Needs work.

This SRV330 has a failure of the control panel, specifically NONE of the controls to the right of the display are functioning.  Interestingly, the Program selection knob works, and the unit passes audio with the effect.  The level and balance controls work perfectly, and the outputs are clean.

At times the Bypass LED will randomly light and the unit will go into bypass mode.

This unit needs repair, and is sold strictly AS IS.

SRV-330 DIMENSIONAL SPACE REVERB

SIGNAL PROCESSING:
AD Conversion: 16 bit, D S Modulation
DA Conversion: 16 bit, D S Modulation

SAMPLING FREQUENCY:
44.1kHz

PROGRAM MEMORIES:
User Area: 1 to 100
Preset Area: 101 to 400

FREQUENCY RESPONSE:
5 Hz to 70 kHz – 3 / + 0.1 dB (Direct)
20 Hz to 20 kHz – 3 / + 0.3 dB (Effect)

NOMINAL INPUT LEVEL:
- 20 / + 4 dBm (Selectable with Output LEVEL Switch)

OUTPUT IMPEDANCE:
1.5 kW (Output LEVEL Switch : – 20 dBm)
9 kW (Output LEVEL Switch : + 4 dBm)

TOTAL HARMONIC DISTORTION:
0.012% or less (Direct, 1 kHz at Nominal Output Level)
0.02% or less (Effect, 1 kHz at Nominal Output Level)

DYNAMIC RANGE:
100 dB or Greater (Direct)
90 dB or Greater (Effect)

CONTROLS:
INPUT LEVEL Knobs (L, R)
BALANCE Knob
PROGRAM Button
Function Buttons (1, 2, 3)
Alpha – Dial
Increment / Decrement Buttons
EDIT Button
PAGE Button
SYSTEM Button
MEMORY Button
EXIT Button
BYPASS Button
POWER Button
Input LEVEL Switch
Output LEVEL Switch

DISPLAY:
3 Characters, 1 lines (Backlit LCD)
17 Characters, 2 lines (Backlit LCD)

INDICATORS:
Input Level Indicator
MIDI Indicator

CONNECTORS:
INPUT Jacks (L (MONO), R)
OUTPUT Jacks (L (MONO), R)
EXPRESSION Pedal Jack
CONTROL Jack
BYPASS Jack
MIDI Connectors (In, Out, Thru)

POWER CONSUMPTION:
25 W

DIMENSIONS:
482 (W) x 307 (D) x 44 (H) mm
19 (W) x 12 – 1 / 8 (D) x 1 – 3 / 4 (H) inches
(EIA – 1U Rack Mount Type)

WEIGHT:
3.8kg / 8lbs 7oz
