Ensemble Serial Box II, SDI to Analog video Converters

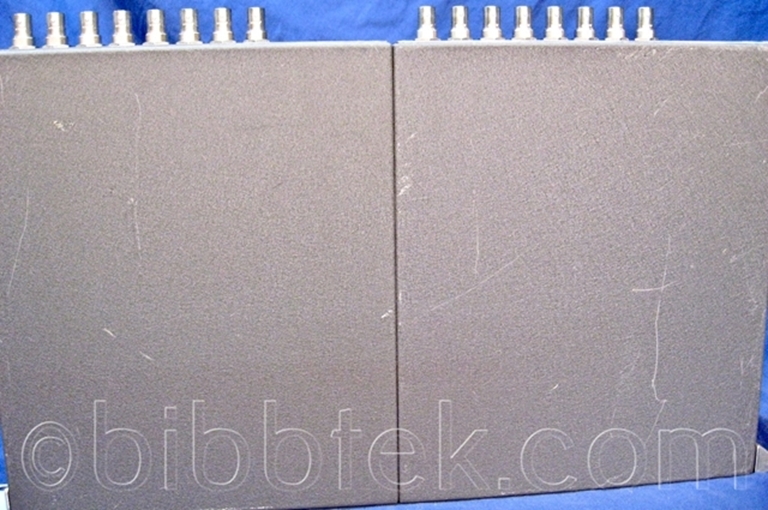

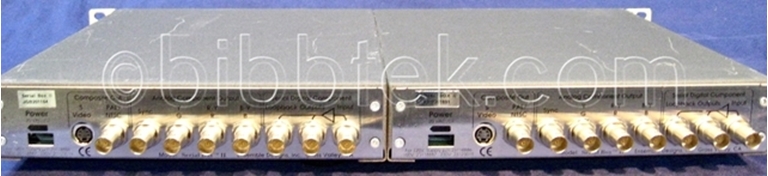

A 1 RU package with 2 SDI to Analog video converters, with original Power supplies. Good condition, tested, working. Price is for the pair.

Disponibilité: En stock

$75.00

Quantité:

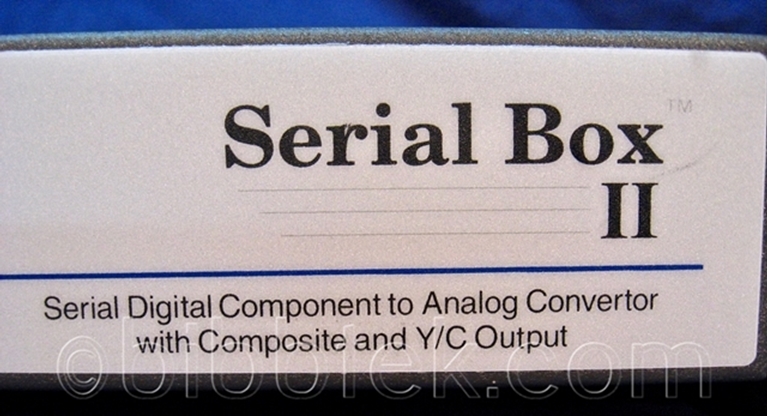

Serial Box II has all the features of Serial Box I, plus composite and S-video (Y/C) outputs. See the information on page 12 for more on its component analog output.

These converters have been tested without making any changes to the internal jumpers. They convert SDI video to multiple Analog video formats, and include a pair of Ensemble power supplies.

From Ensemble:

In addition to component output, Serial Box II also generates a digitally encoded NTSC output when operated in the 525 mode, and a PAL output when in the 625 domain. All component signals have full 10 bit resolution, while the composite output only is limited to the eight bit resolution of most composite digital VTR’s. S-VHS output is also available from the Serial Box II.

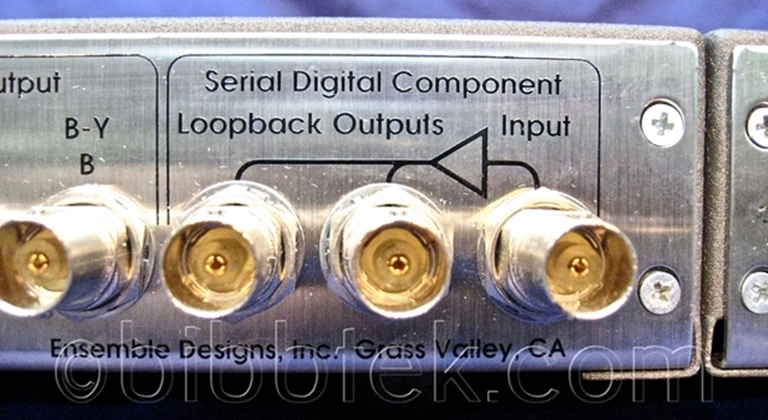

The Serial Box II composite output is digitally encoded from the original digital component signals resulting in accurate colorimetry and signal levels. With two active loopthrough ITU-R 601 connectors, Serial Box I and II can also act as a two output serial digital video distribution amplifier.

Product Specifications

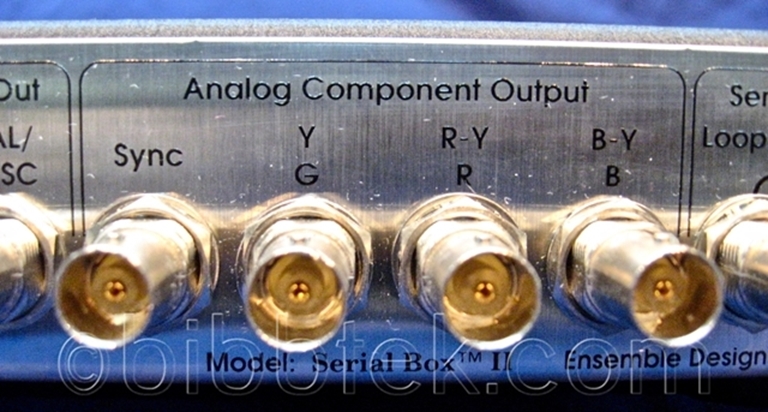

Analog Component Output

Standards 525 or 625 Line, switchable or auto select

Format RGB or Y/R-Y/B-Y, SMPTE or Beta, strappable, Setup ON/OFF, strappable, Sync on Y/G ou tput, strappable

Levels 0.7 / 1.0 V p-p Non-Comp / Comp

Sync Output1 V p-p Composite H & V

Response Y Chan: 6 MHz Bandwidth, 0.25dB to 5 MHz

Color Diff 2.5 MHz Bandwidth

2T K Factor <1% Y Channel

D to A 10 bit sampling of all components

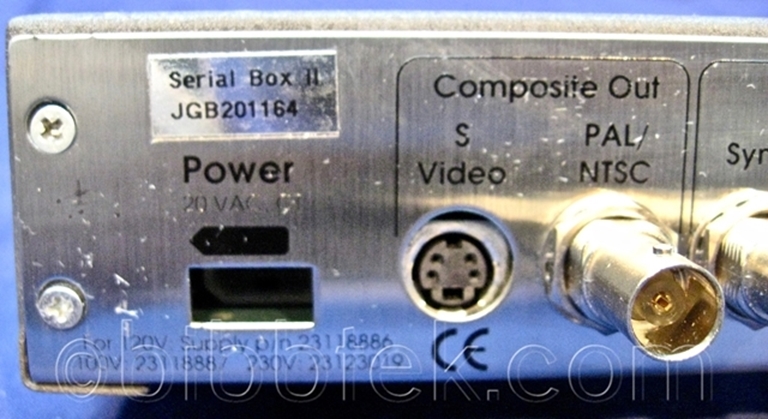

Analog Composite Outputs

NTSC/PAL and Y/C (follows line rate), Digitally Encoded

Response 0.25dB to 5 MHz

RGB or Y/R-Y/B-Y, SMPTE or Beta, strappable

Setup ON/OFF, strappable, Sync on Y/G ou tput, strappable

0.7 / 1.0 V p-p Non-Comp / Comp
1 V p-p Composite H & V
Y Chan: 6 MHz Bandwidth, 0.25dB to 5 MHz

2.5 MHz Bandwidth
<1% Y Channel
10 bit sampling of all components

NTSC/PAL and Y/C (follows line rate), Digitally Encoded 0.25dB to 5 MHz
<1%
<1.5%

SMPTE 259M / ITU-R 601 / CCIR 656, 10 bit words at 270 Mbits/sec.
Active loop-through from Serial Input provides 2 independently buffered, re-clocked outputs

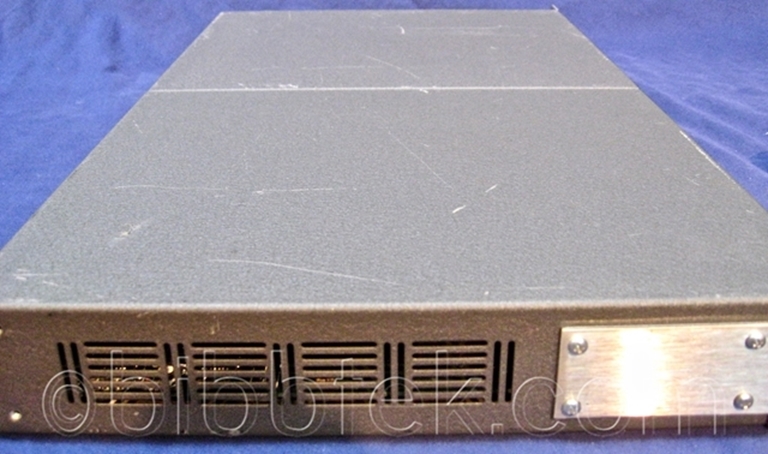

Mechanical & Power

Size 8.5" W, 1.75" H, 10" D
Weight 3 lbs

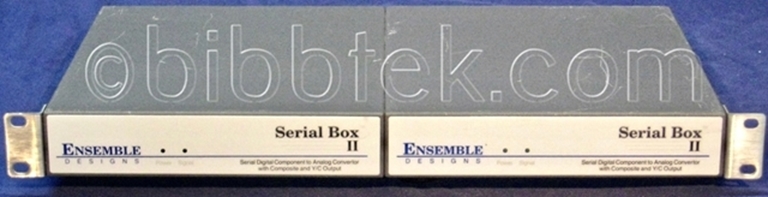

Two units can be rack mounted side by side using optional rack ears Chassis is completely enclosed
20VAC, 50/60 Hz, less than 10 VA

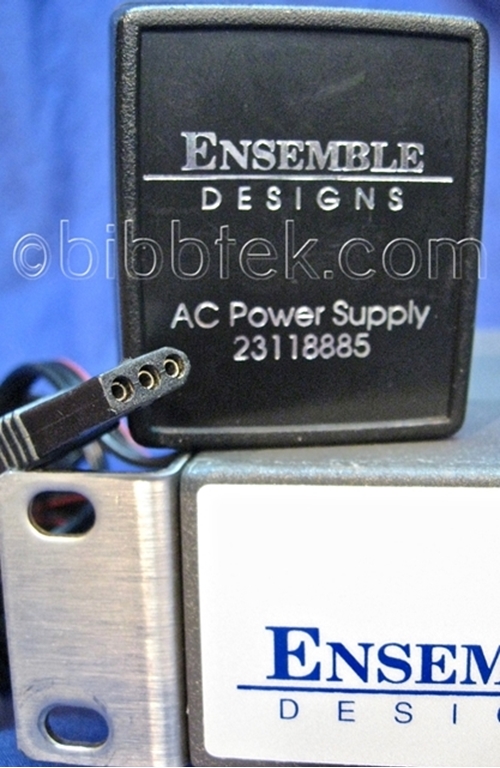

Power is supplied by a UL and CSA listed wallmount transformer Specify either 100, 120 or 230 volts
