Chicago Standard Transformer PWV 715 Power Transformer
A sealed 115/230 Volt power transformer for tube circuits. TF1A03YY, Part 5300436-001

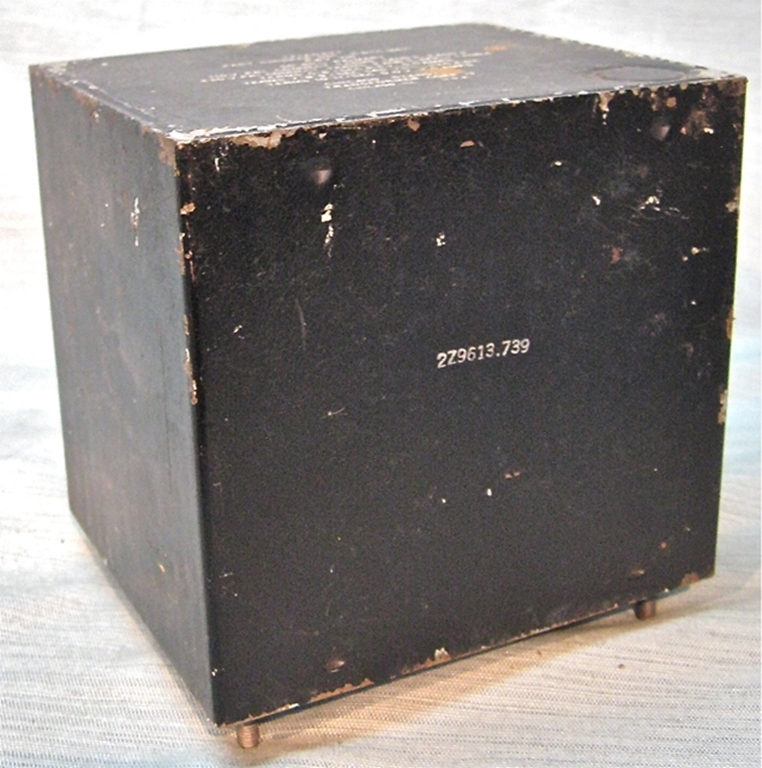

This is a Dual Voltage Chicago Transformer power transformer, Model PWV 715, in Fair condition with wear to the paint on the case. It measures 5" x 4.65" x 4.75" (H), and has 4 studs on the bottom of the case.

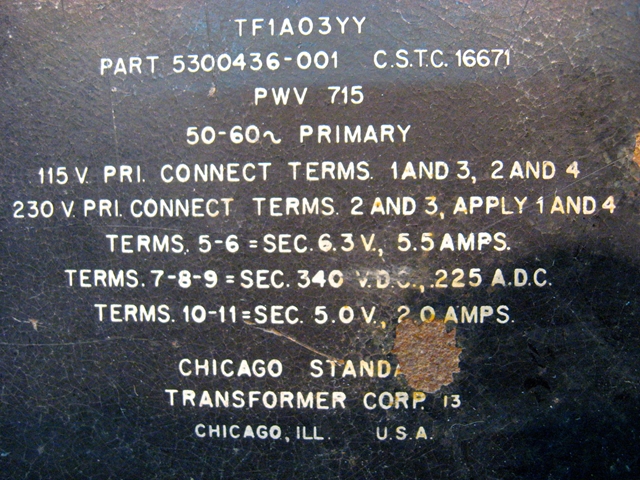

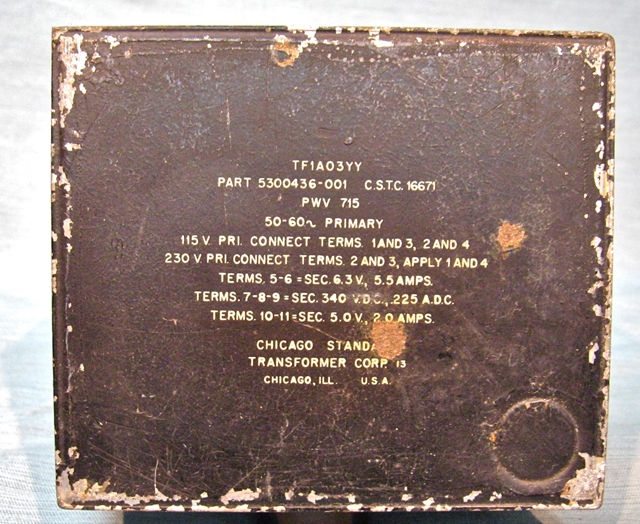

Case markings read:
- TF1A03YY
- Part 5300436-001
- C.S.T.C 16671
- PWV 715
Specifications:
- 115/230 Volt Primary terminals
- 6.3 Volt 5.5A Secondary
- 340 V.D.C., .225 A.D.C Center tapped secondary
- 5 Volt 2 A secondary
- 15 pounds

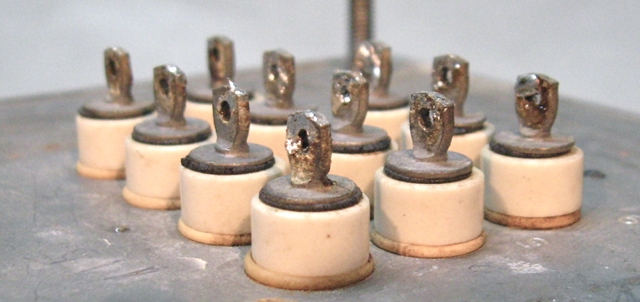

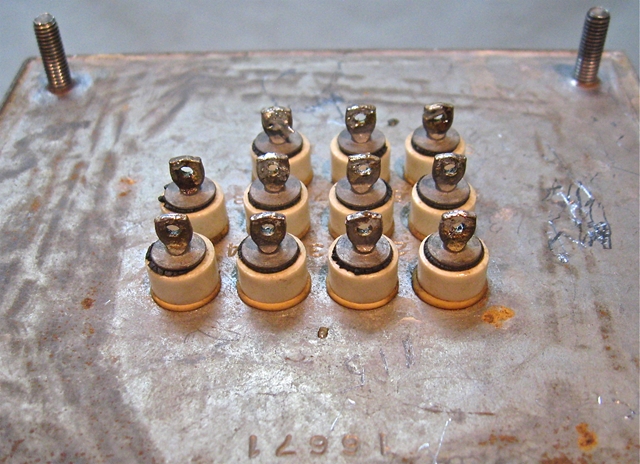

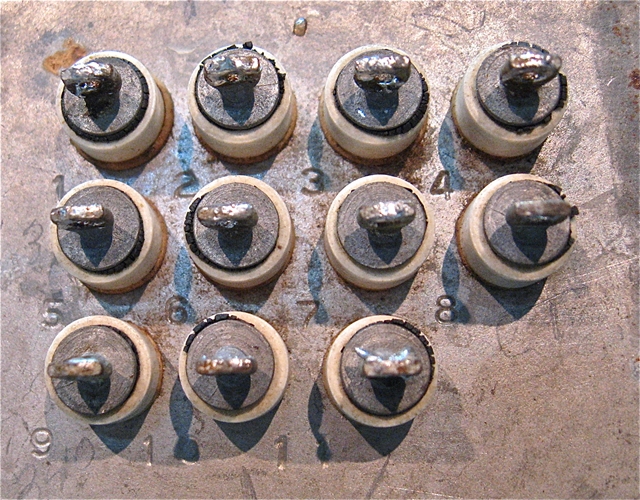

- 11 solder terminals
- 4 10-32 studs ~ 3.5 x 4.125" centers
