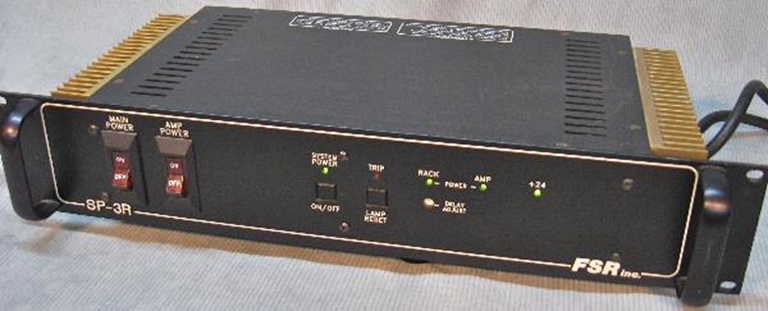

FSR SP-3R Rack Power Switcher

This FSR unit provides an adjustable turn on delay between two separately supplied 120 volt receptacles.   The primary supply would be used to power up the console, etc with a preset delay for power to power amplifiers.

• Delay adjustable from .5 to 15 seconds
• Built in 24 VDC 2.4 amp regulated supply
• Solid state zero crossing switching

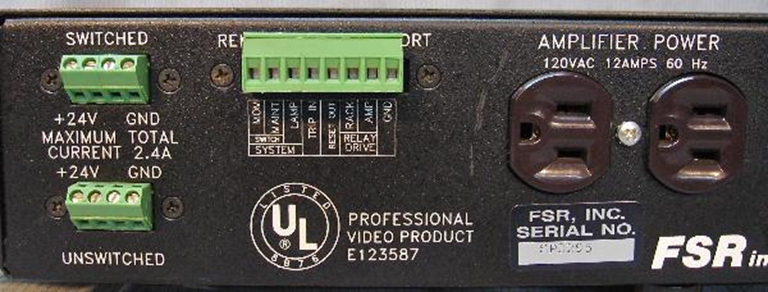

• Switched and unswitched 24 volt terminals
• Surge surpression
• Full sequencing on power up and down
• Fully remote controllable
• Led Indicators
• Front panel circuit breakers
• Remote emergency trip terminal
• rack lamp

Full manual can be viewed here:  ftp://doclib.fsrinc.com/DISCONTINUED_PRODUCTS/Power/SP3R.pdf
