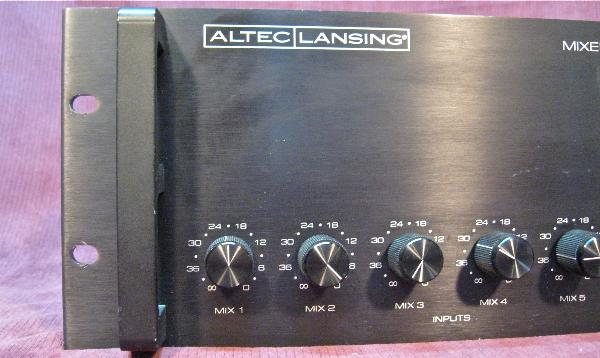

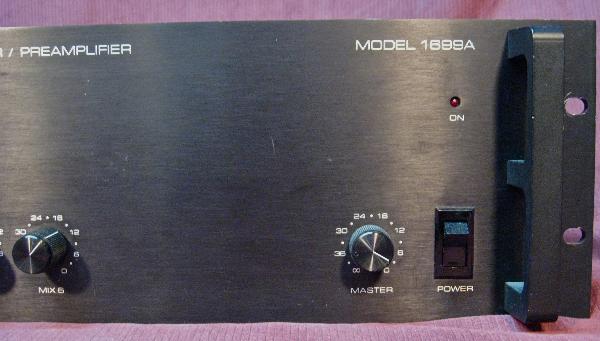

Altec Lansing 1699A 6 channel Mixer
This is the immediate successor to the popular Green Faced Altec 1599B. Very, Very clean.
1 op voorraad
This one owner unit was installed in a small conference center in 1982.
Like the Altec 1599, these mixers featured a very simple, clean, transformer coupled input circuit.
A full specification sheet is not available for the 1699 but here are some features:

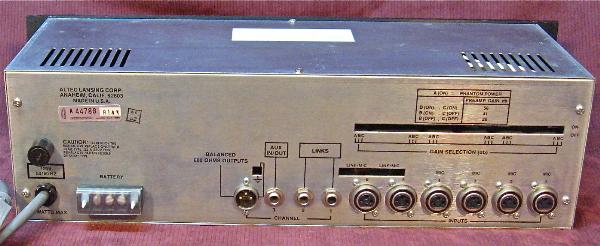

- 6 mic inputs, Channels 5 & 6 Mic/line

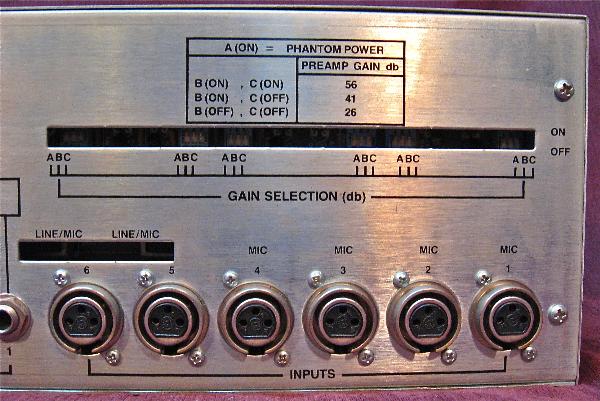

- Individual Phantom power switched
- 80 db gain
- Gain reduction Trim switches: -14db, -28db

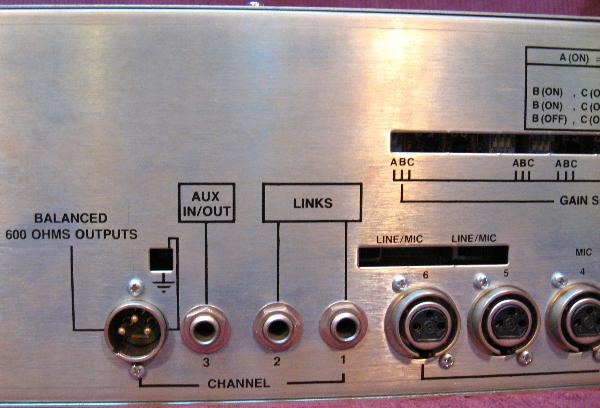

- Output +18dbm into 600Ω
- Low pass filter: 5KHZ, 6db/Oct (internal)
- High Pass filter per channel: 250 HZ, 6db/Oct (internal)
- Dims: 19" x 8" x 5.25" (3 RU high)
- 12 pounds
