Tannoy Reveal Active Monitor Pair

These are the original and apparently sought after Blue (Teal) versions. In very good condition. Priced per pair.
Beschikbaarheid:: 1 op voorraad
Bel voor prijsopgave

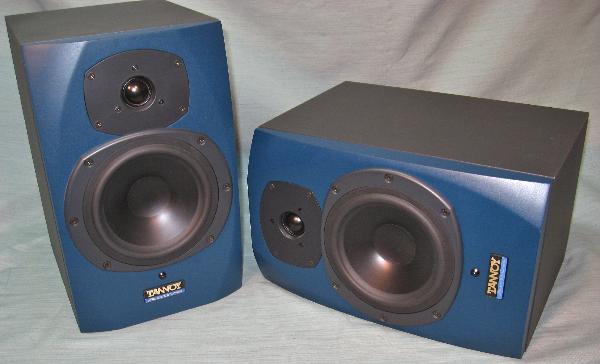

These Nearfield monitors have a 1" soft dome tweeter and a 6.5" woofer with a butyl surround that won't rot out.  The cabinets are a ported reflex design with tuned rear ports. They are biamplified with two 50 watt amplifiers. These cabinets are magnetically shielded, allowing operation close to CRTs for those still using them.

These speakers are solidly built, and nothing beats biamplification.  Very Accurate, with very low IM distortion.

This from the Tannoy Website:

Distinctive playback monitor providing sonic excellence at a budget price level.   A 1" soft dome tweeter is matched with a 6.5" long-throw bass unit, two 50 watt amplifiers and electronic crossover. Both drive units are magnetically shielded, allowing operation close to video monitors. Designed for budget conscious project studios and as a playback monitor in larger rooms.



SYSTEM
Frequency response (1) 62 Hz -- 20 kHz
Maximum SPL (2) 114 dB SPL
Distortion < 0.8%
Dispersion (@ -6dB) 90 degrees

ELECTRONIC SYSTEM

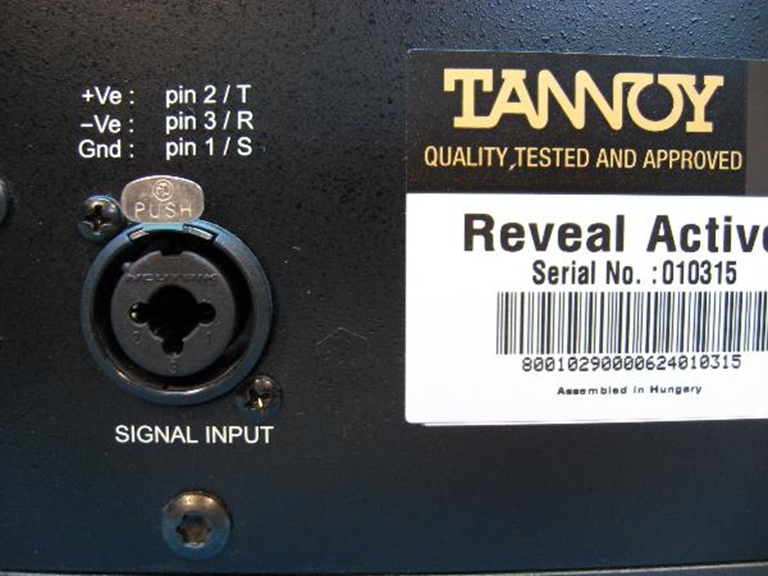

Input 32 kΩ balanced on combined XLR/ TRSjack
Sensitivity 0 dBu
Crossover frequency 3000 Hz
Amplifier output power LF channel (4 Ω load) 50 W rms HF channel (4 Ω load) 50 W rms
Output noise
(HF channel, 20Hz - 20 kHz unweighted) -80 dBV

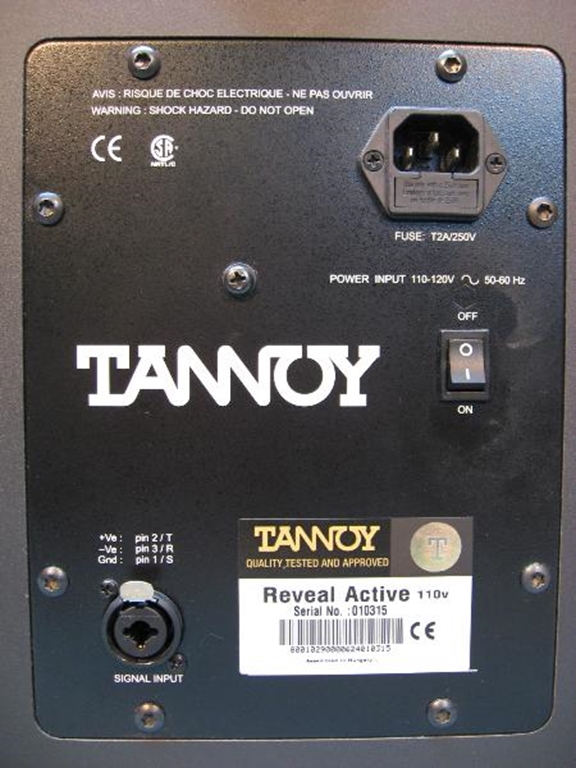

User controls and indicators Power ON/OFF switch, Power ON LED
Power Supply Fixed mains voltage
IEC inlet with detachable power cord
Power consumption 10 to 160 VA

CABINET
Drive unit Tannoy shielded 6.5" bass driver Tannoy shielded 1" soft dome tweeter
Low frequency design Optimised bass-reflex loaded, in 12 litres
Cabinet construction 40mm MDF front baffle,
16 mm high density particle board.
Cabinet finish Azure blue satin front
Grey suedette vinyl sides and back
Cabinet dimensions (HxWxD) 340 mm x 210 mm x 260 mm (13.4" x 8.3" x 10.2")
Cabinet weight 8.5 kg (19 lbs)
