BBE Maxie Model 462 Sonic maximizer

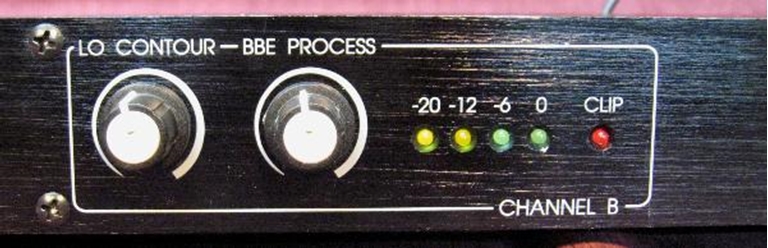

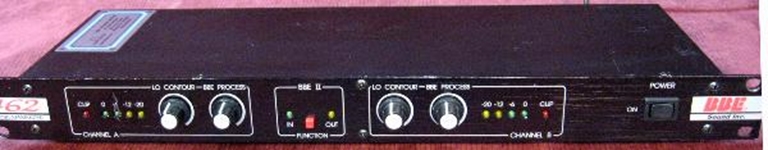

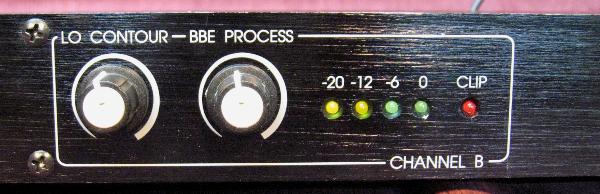

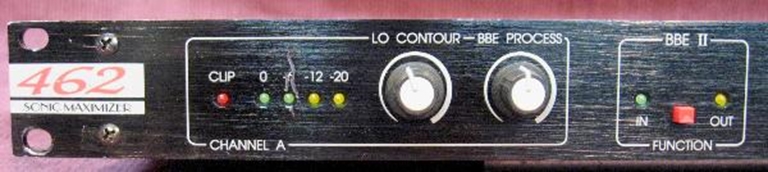

BBE Maxie Model 462 Sonic maximizer, similar to the Aphex Aural Exciter, Lo Contour and Process controls, has paralleled 1/4" and RCA jacks, 1 rack unit, Good condition, Note deep scratch over Channel 1 LED display.

Fabrikant: BBE

Beschikbaarheid:: 1 op voorraad

Oude prijs: $129.00

Prijs: $99.00

Aantal:

Applications

Pro and semi-pro sound reinforcement
Multitrack studios
Mobile DJ systems
Cassette copies
Nightclub sound systems
Instrument racks for guitar, bass and keyboards

Features

2 channels of process for stereo or separate mono mixes
5 segment LED output meters
+18dBu headroom

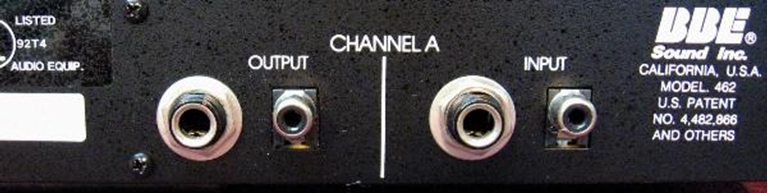

RCA and 1/4" inputs and outputs
Hardwire bypass
Bypass switch for comparison of processed to unprocessed signal

Specifications
Frequency Response,
Process Mode: Program controlled
Bypass Mode: 10Hz to 50kHz, +/- 0.5dBu, 10dBu input
Signal to Noise Ratio: 112dB Process IN
THD, Process mode: less than 0.025% at 20-20kHz
Bypass mode: less than 0.002% at 20-20kHz
Maximum Output: +18dBu (may vary due to control settings)
Input Impedance: 47K Ohms, unbalanced 1/4" phone jack or RCA jack.
Output Impedance: 1K Ohms, unbalanced 1/4" phone jack or RCA jack.
Sensitivity: -45dBu for maximum process
Maximum Process: +12dBu boost at 5kHz, -10dBu input
Lo Contour: +12dBu adjustment at 50Hz, -10dBu input
