Belden 8281 RG59 Precision Video Cable

Unused Belden 8281 Precision Video cable, on wooden reels. Footage marked, this cable is suitable for Digital Video and Analog applications. Several reels available, well below market prices,
Fabrikant: Belden
Beschikbaarheid:: 2000 op voorraad
Bel voor prijsopgave
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

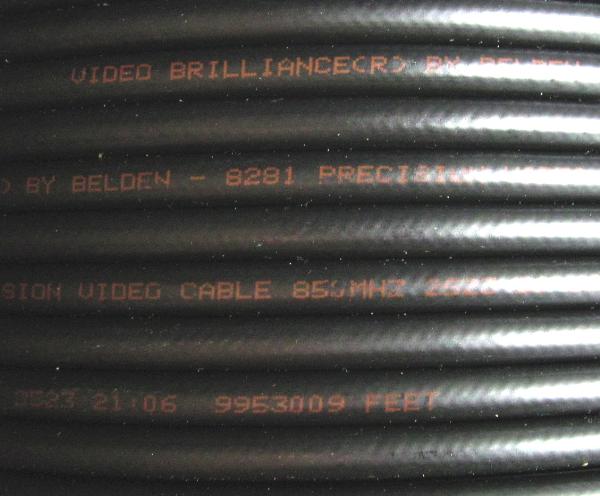

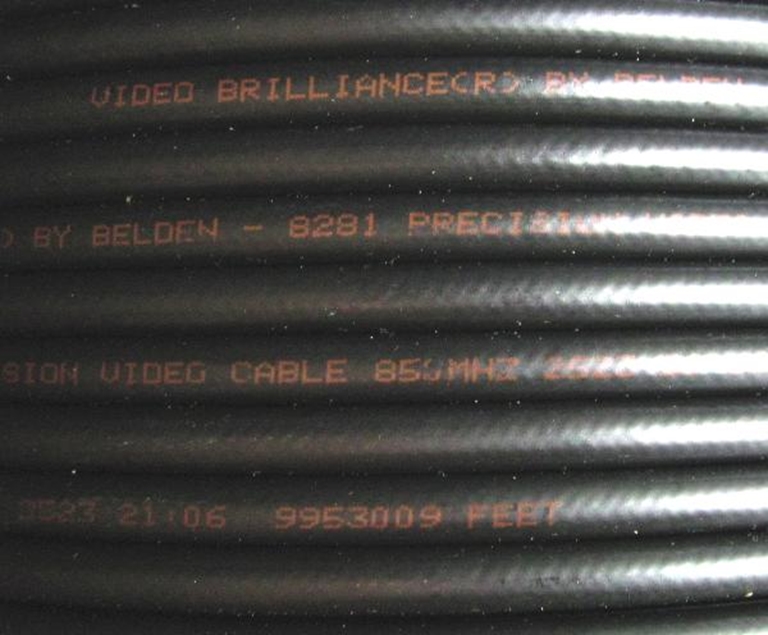

The cable is footage marked for easy calculation of run lengths, etc.

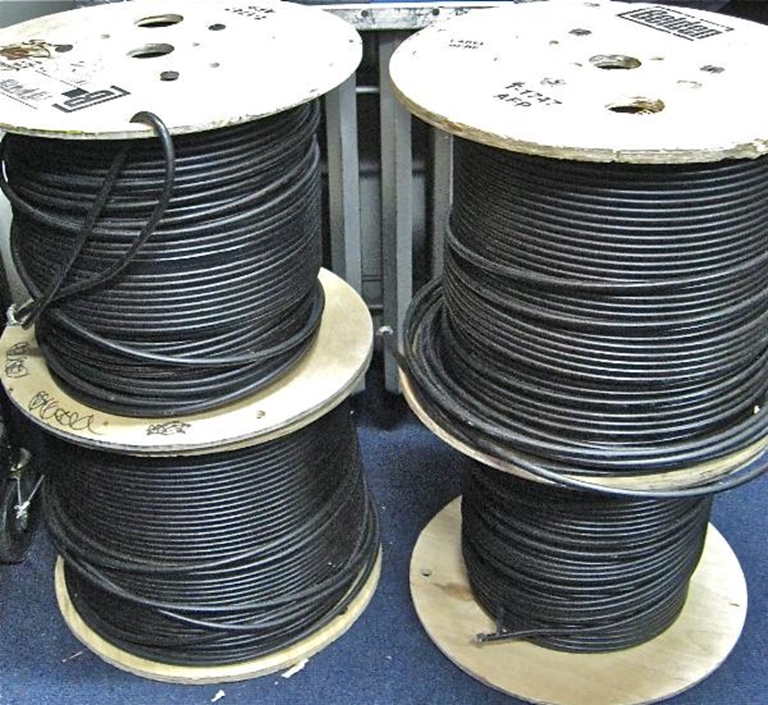

There are 5 spools of lengths:

  • 1000',
  • 740',
  • 500',
  • 290'
  • 250'

We can verify lengths with a TDR at time of purchase.  This is unused stock---we're open to any reasonable offer, closing up shop so feel free to make an offer, even if it's late and you've had a few.

Please note that inventory control requires email contact or phone call for orders of this cable.

Here are some of Belden's specifications:

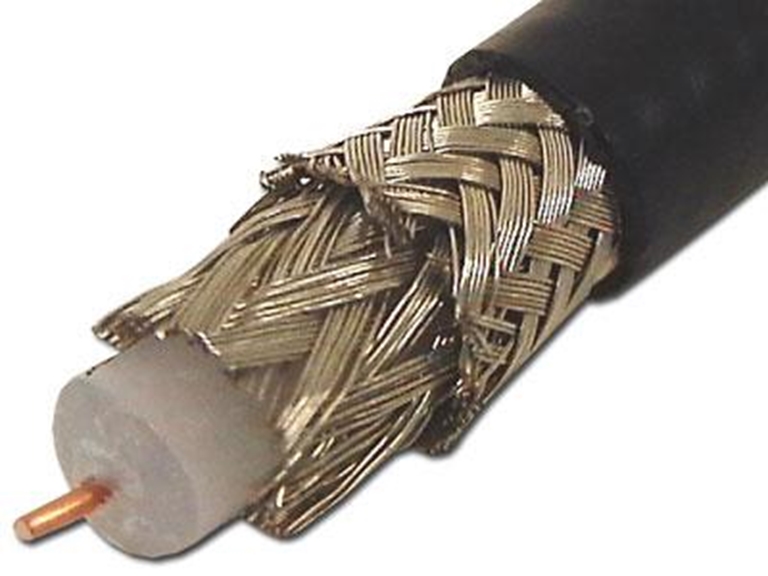

  • Coax - Double Braided RG-59/U Type
  • 20 AWG solid .031" bare copper conductor
  • Polyethylene insulation
  • Tinned copper/bare copper double braid shield (98% coverage)
  • Black polyethylene jacket.
Insulation Material:
Insulation MaterialDia. (in.)
PE - Polyethylene.198
Outer Shield
Outer Shield Material:
Layer #TypeOuter Shield MaterialCoverage (%)
1BraidTC - Tinned Copper98
2BraidTC - Tinned Copper98
Outer Jacket
Outer Jacket Material:
Outer Jacket Material
PE - Polyethylene
Overall Cabling
Overall Nominal Diameter:0.305 in.

Nom. Characteristic Impedance:
Impedance (Ohm)
75
Nom. Inductance:
Inductance (µH/ft)
0.131
Nom. Capacitance Conductor to Shield:
Capacitance (pF/ft)
21
Nominal Velocity of Propagation:
VP (%)
66
Nominal Delay:
Delay (ns/ft)
1.54
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
9.9
Nominal Outer Shield DC Resistance:
DCR @ 20°C (Ohm/1000 ft)
1.1
Nom. Attenuation:
Freq. (MHz)Attenuation (dB/100 ft.)
1.3
3.6.5
10.0.8
71.52.1
1353.0
2704.3
3605.1
5406.3
7207.4
7507.6
10009.2
Max. Operating Voltage - Non-UL:
Voltage
2900 V RMS
Start Freq. (MHz)Stop Freq. (MHz)Min. SRL (dB)
521627
21785023
Sweep Test
Sweep Testing:100% Sweep tested 5MHz to 850MHz.

Please note that inventory control requires email contact or phone call for orders of this cable.
