Calibration Standard Instruments MDM-TA3 Time Align Monitors by E.M. Long

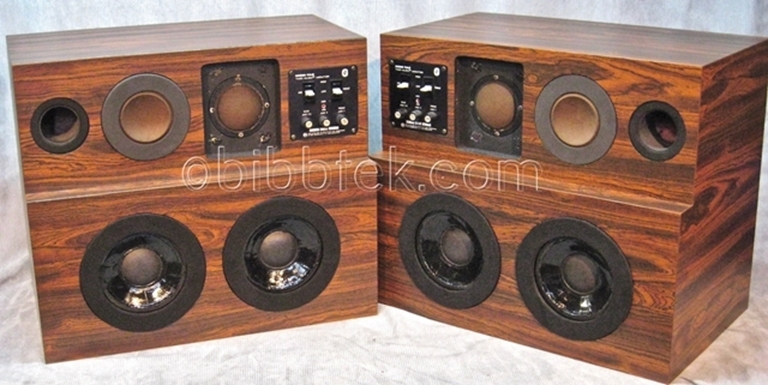

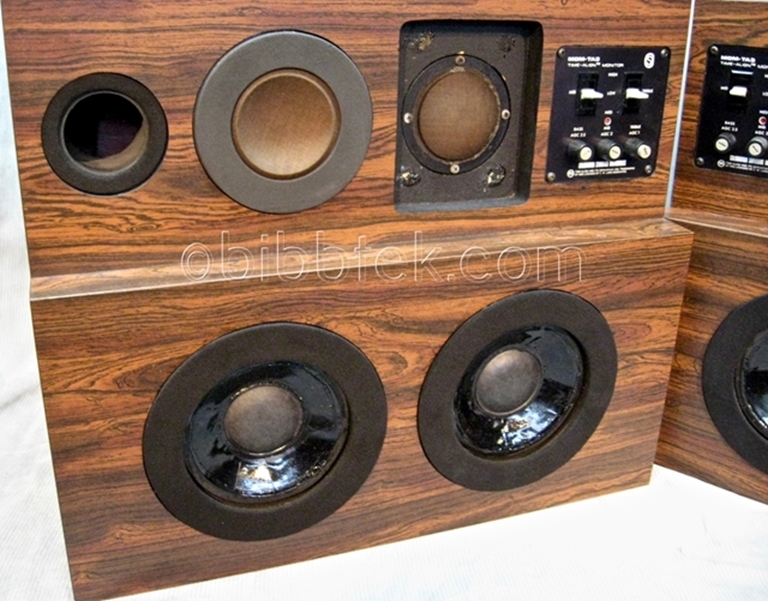

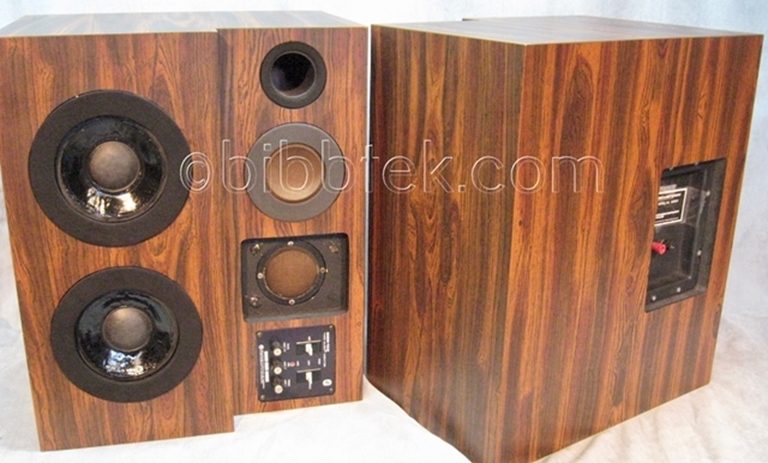

These are 3 way, dual woofer versions of the 2 way CSI MDM-TA2s.  These monitors used the same drivers found in the MDM-4 monitors (which were not time aligned).  This pair is from the original owner, who operated a small smoke and pet free studio doing original compositions for film and video.

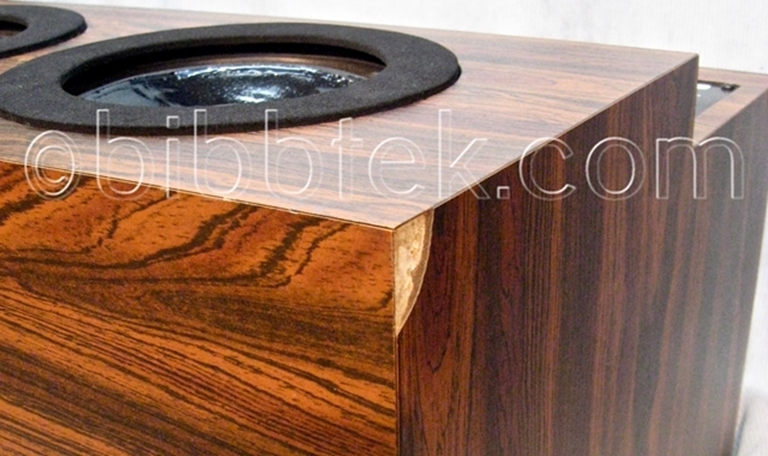

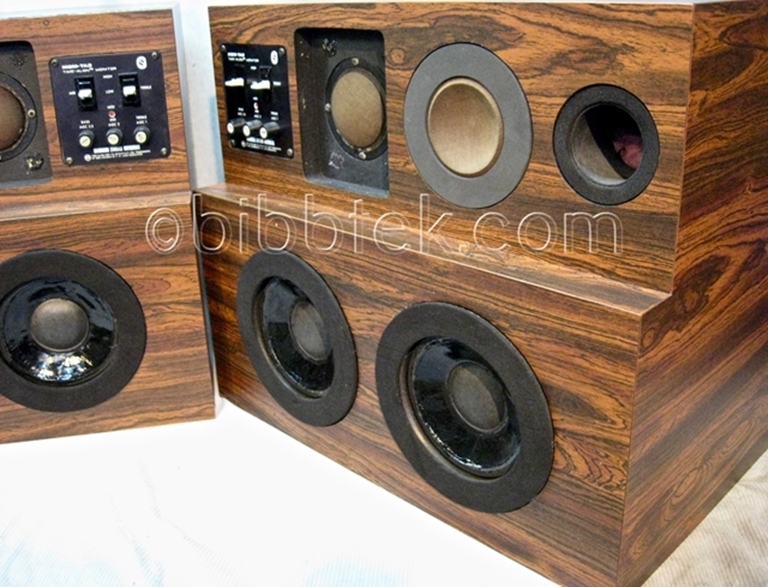

PLEASE NOTE:  The MDM-TA3 woofers have been refoamed, swept and tested.   The large O-rings on the woofers were re-attached to the outer mount with rubber cement.  The CSI woofers were constructed with a glossy doping compound over a paper cone, a foam surround and plain paper dust cap.  We’ve rebuilt several sets of CSI monitors and in every case the woofer cones showed some deformation at the surround seam.  This has not affected the sound at all.  Up close the cones appear bumpy and uneven, but they perform perfectly.  These cabinets have been swept for any rattles, whistles, air leaks, etc., and the low frequency output is tight and robust, well below 45Hz.

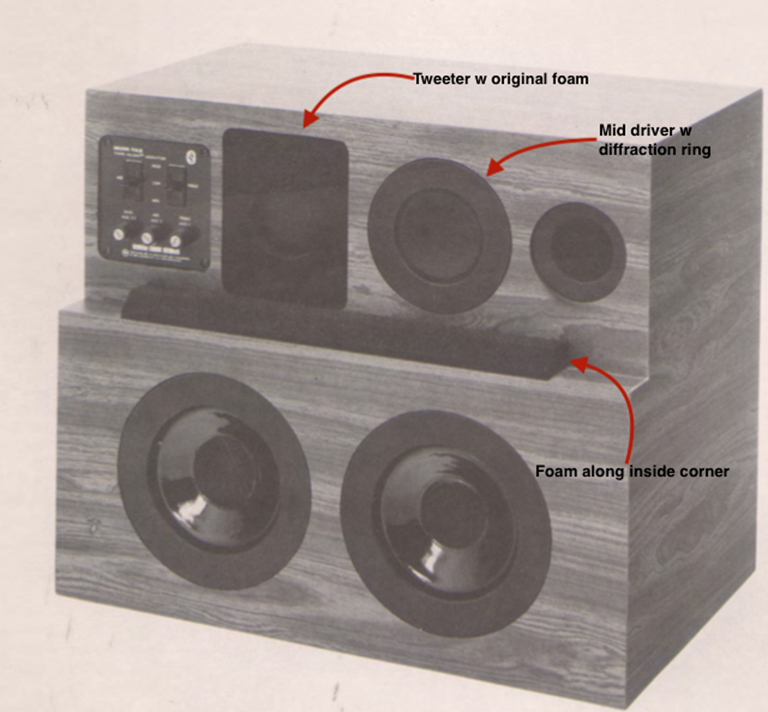

Other than the new woofer surrounds these monitors are original as far as we can tell.  There were 2 pieces of foam on each cabinet that were positioned to minimize cabinet reflections and improve the imaging.  Both have disintegrated from age.  One foam piece was fitted into the tweeter cutout, and the other was a beveled strip of foam that ran the length of the set back between the plane of the woofers and the mid and high frequency drivers (See photos for a B/W picture marked for reference.).

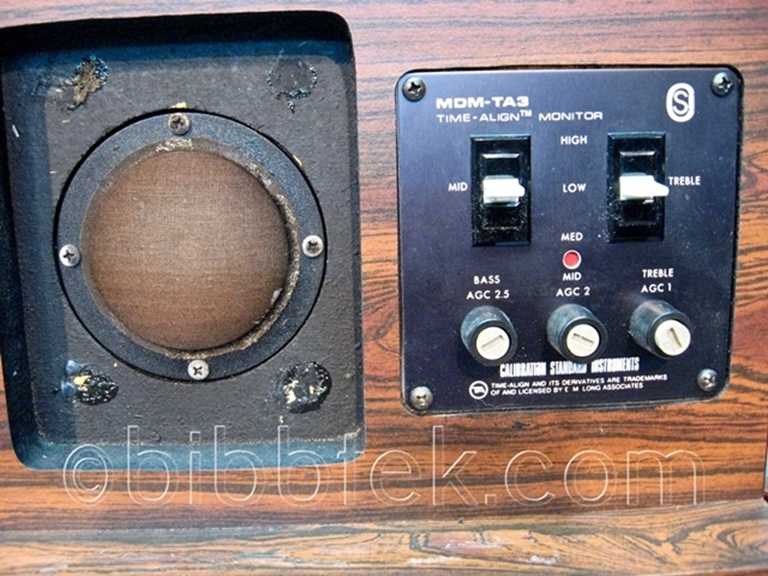

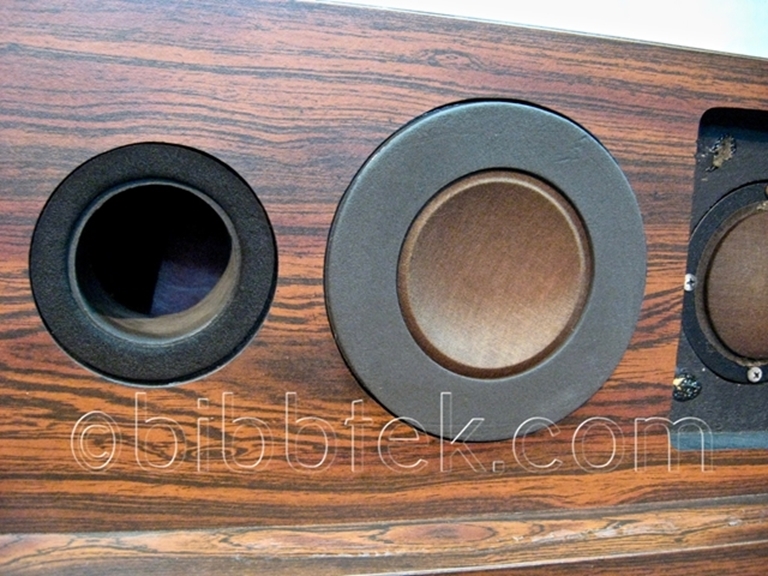

The tweeter screen covers were reattached to the drivers with rubber cement.

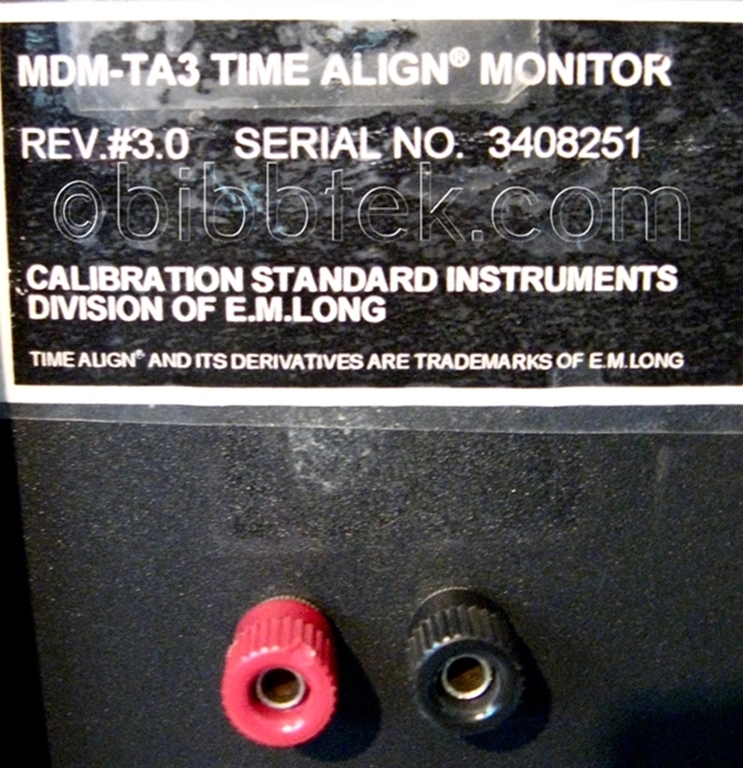

SPECIFICATIONS

• Response +3db 45Hz to 20Khz (2 Pi Steradians)
• Matched Pair Response +/- 0.5db
• Time Offset +/- 15 microseconds 200Hz to 16KHz
• 82 dB SPl/Volt/Meter. (1 Watt for 91dB at 1 meter)
• 100 watts per channel Recommended

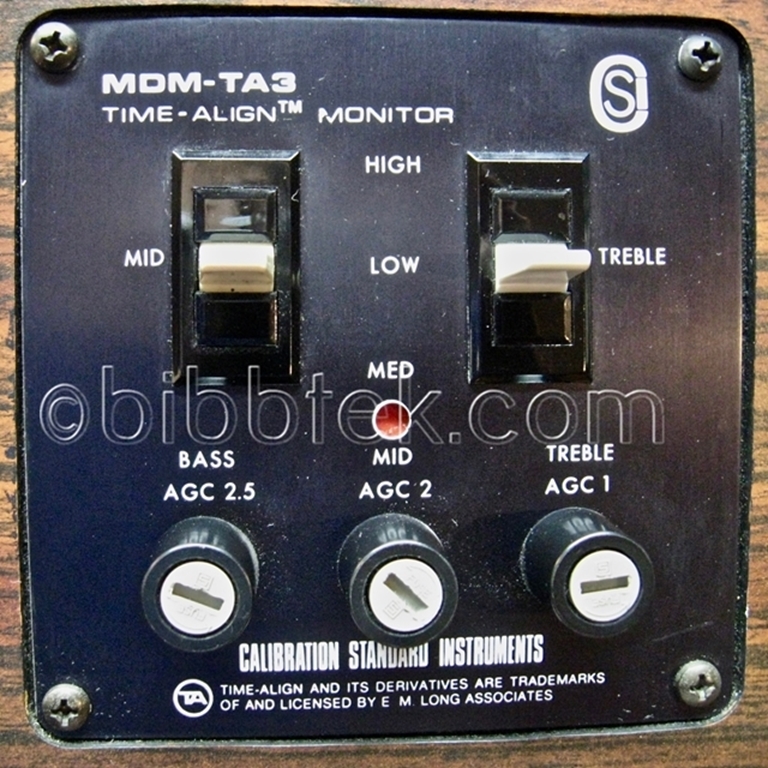

• Power Handling:  40 W continuous < 1KHz, 160 Watts instantaneous > 1Khz
• Distortion: <3% THD or IM, 60Hz to 20KHz.  Less than 1% 100 to 20KHz (94 db spl at 1 meter)
• 8Ω nominal, 5Ω minimum

• System type: Time Align three way, Dual Woofer, ported (32Hz tuning)
• Crossover:  Time Align EQ/Filter 1.8KHz, and 7KHZ, bass to port 68  Hz.
• 2 CSI BD16/102 (160mm) 6.5" Woofers
• 1 CSI MD 7/38 2.75" 70mm Mid freq driver
• 1 CSI TD2/3 Treble driver .75" (19 mm)
• 1.3 ft3 internal volume (37 L)
• Dimensions:  19" x 16" x 11.75"
• 35 pounds.
