EVM12L 12 Inch Pro Line driver, Vintage!

Electro Voice EVM12L Pro driver, This is the original version that has been replaced by the "classic" and Zakk Wylde Black Label versions. Hard to find. *Please note the price is for a single speaker.*
Fabrikant: EV Electro-Voice
Beschikbaarheid:: 1 op voorraad
Oude prijs: $199.00
$159.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Please note the price is for a single speaker.

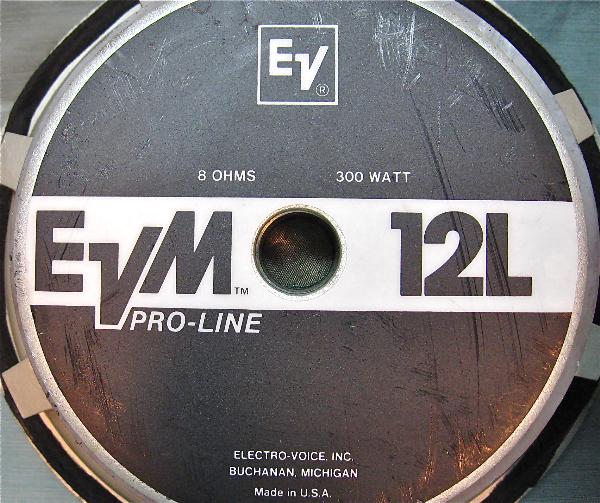

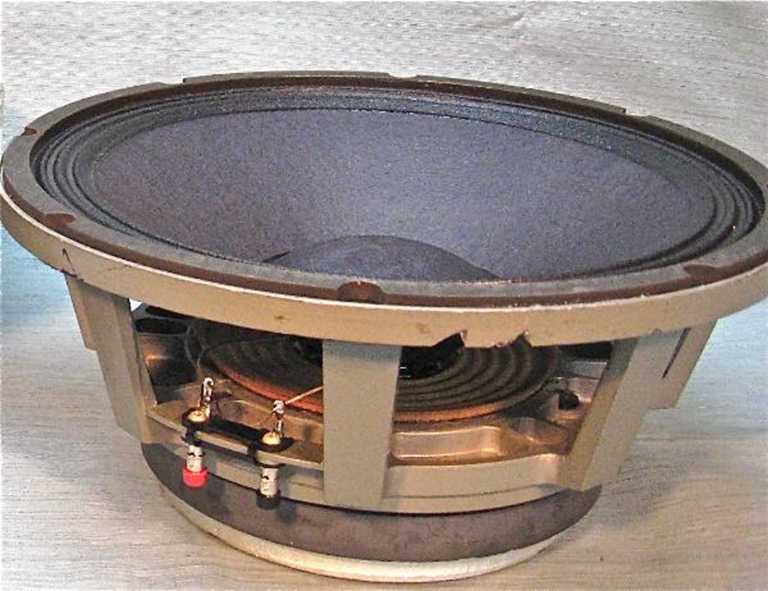

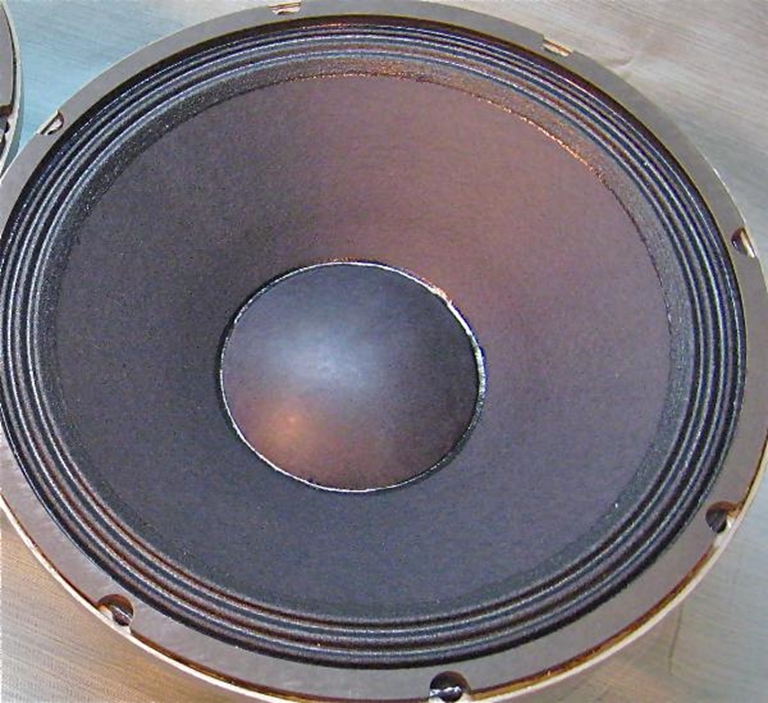

This listing shows a pair of ElectroVoice EVM 12L Pro Line 12" heavy duty drivers.  These speakers were factory reconed and held for an abandoned project.   Unused since they were reconed.   Just unwrapped for the photos.

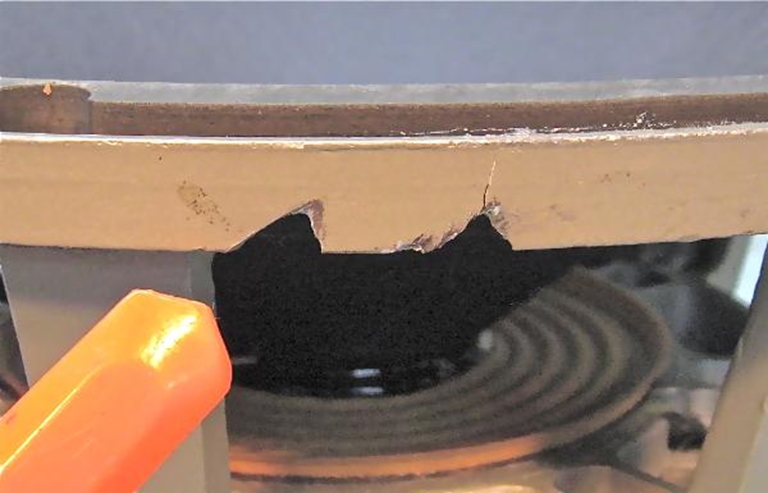

Please note that this driver has 2 chips in the edge of the frame.  It is indicated with the orange pointer in one of the photos.  It does not affect the performance.

You see the original specification sheet here:  http://archives.telex.com/archives/EV/Speakers/EDS/EVM-12L%20Pro-line%20EDS.pdf

Here are some of the specs from EV:

  • 12 Inch cast frame driver
  • 300 Watt  Long Term (RMS) power handling, 1200 Watt peak.
  • 2.5 Inch Edge Wound voice coil
  • 1 watt produces 90.5 db at 10' (3 meters)
  • 80-7000 Hz response
  • 8Ω, 6.4 minimum.
  • Vented pole piece
  • Vented Voice Coil
  • Magnet wt. 5 lbs.
  • Motor wt. 16 lbs.
  • Overall dims: 12.2" Diameter, 6" Deep.
  • Total wt. 19 lbs.

This speaker is a great way to hot rod your Fender Amp.   Very high efficiency with great power handling.
