FORA CSF-110 with MV-112s CCTV Modules

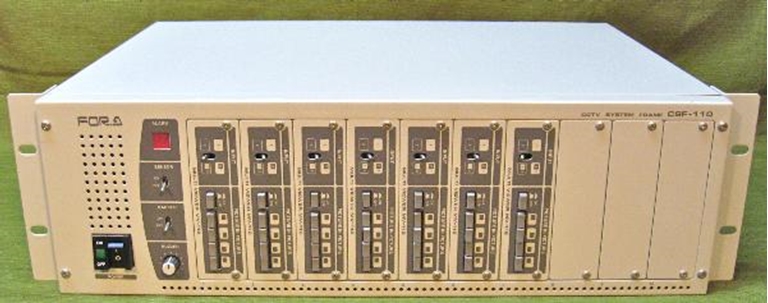

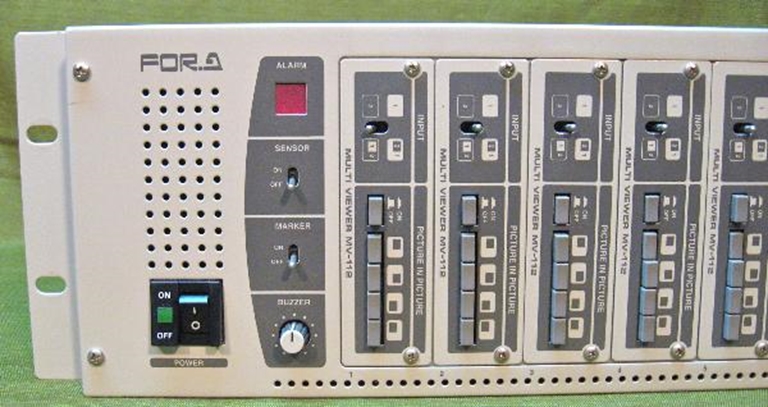

FORA model CSF-110 with seven MV-112 PIP Units in a Rackmount Frame with power supply. Willing to part out.
Beschikbaarheid:: 1 op voorraad
Bel voor prijsopgave
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

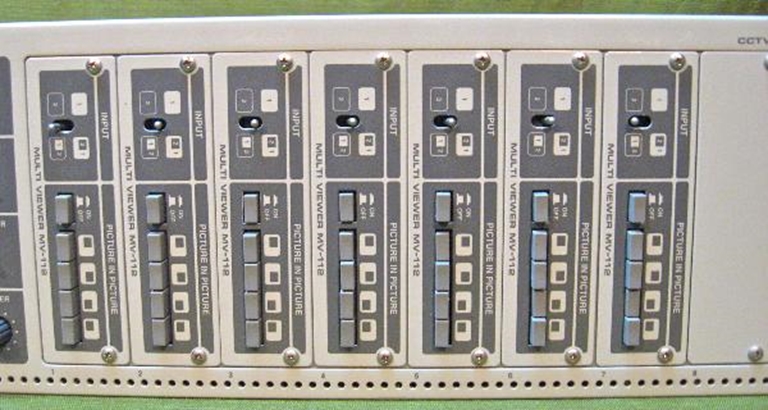

This is rack frame with 7 PIP (picture in picture) generators.   Each  MV-112 module is designed to display either of two Composite VIdeo signals as full screen or PIP.   The PIP window can be positioned in any corner of the screen.   These units are ideal for any security or manufacturing monitor setup where quick image access and switching is required.

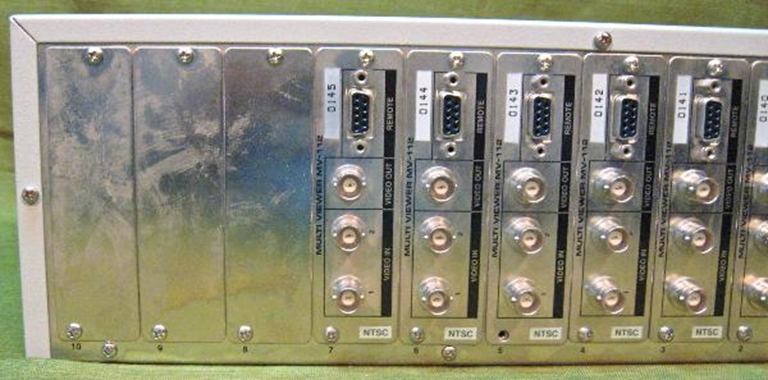

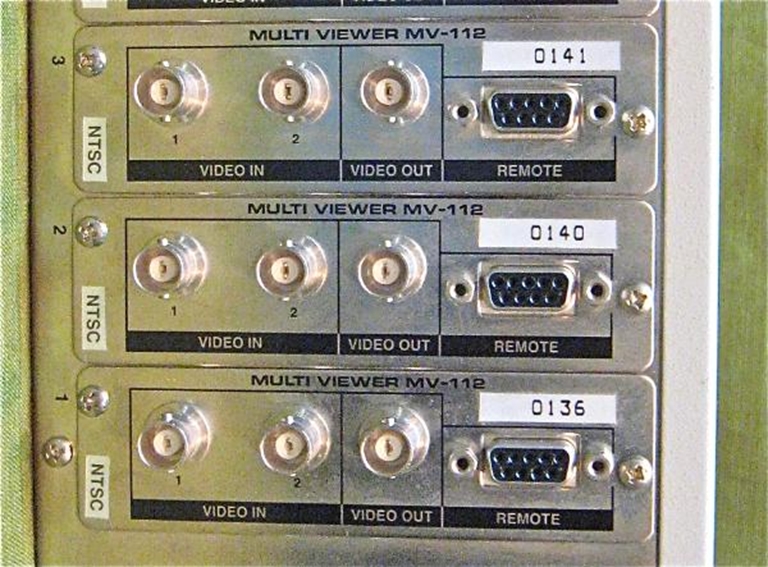

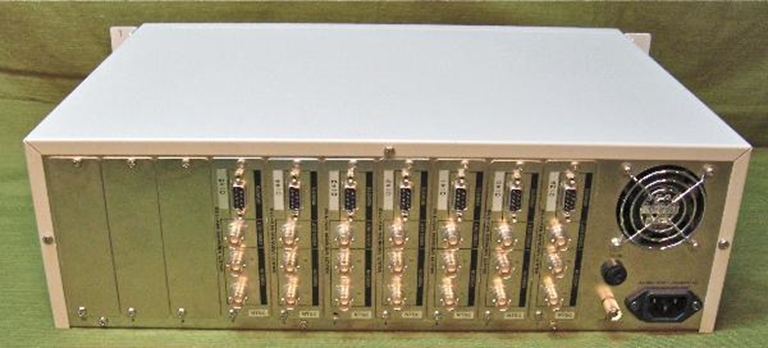

Each Module has a pair of video inputs and one output, all connectors are BNC.

The Frame itself will accept a variety of FORA modules as described below.

Support10 modules
Temperature / Humidity10ºC - 40ºC / 30% - 90%(no condensation)
Power100VAC - 117VAC or 220VAC - 240VAC±10%, 50/60Hz
ConsumptionApprox. 83VA (52W) (w/ 10 modules)
Dimensions / Weight430 (W) x 132 (H) x 301 (D) mm /Approx. 8.5kg (w/o modules)
AccessoriesOperation manual / AC cord / Rackmount brackets
OptionsFront and rear panel slot covers /Dummy board

Designed to support one of FOR.A's CCTV modular series products.
Compact 1/2" width 1RU EIA frame size. Mount one or two in one rack space
Built-in power supply for support of installed module.

The following FOR.A Module products can be mounted in the CSF-101:
  • HC-1400  Hum Canceler
  • SVS-110  Video Sensor
  • TG-110  Title Generator
  • VTC-150  Video Timer
  • MV-112  P-in-P Viewer (Included in auction)
  • TG-100  Title Generator
  • VS-141  Sequential Switcher

The MV-112 Multi Viewer (Included) is a plug-in unit designed for use in the CSF-101/103/110 CCTV System Frames. Addition of the MV-112 in the CSF-101 allows the user to display one of the two video inputs full screen or both inputs simultaneously in a picture-in-picture format.

When p-in-p mode is selected, the inset picture can be positioned to one of four fixed positions within 80% of the effective picture display area.

MV-112 Specifications:
  • Video Format: NTSC (color) or 525/60 Hz (B/W), PAL (color) or 625/50 Hz (B/W)
  • Video Input: 2 : 1 interlaced signal, composite (color or B/W), 1.0 Vp-p, 75 ohm, 2 inputs, BNC
  • Ideal for security monitoring, manufacturing observation, or any application requiring multi-viewing of dispersed areas or different source materials at one location.
MV-112 Features:
  • Designed to either display 1 of 2 video inputs full screen or both as one full screen with Picture-in-Picture display
  • Display selected view full screen or both views P-in-P display.
  • P-in-P display can be positioned to any corner of step positioned over 80% of effective picture area
  • Two P-in-P display sizes

Willing to part out this item, if you are not interested in the entire package.
