Matthey VU 360 Delay Line Package

These are precision 75Ω Video delay lines with BNC jacks. Total Delay is 325nSec. There are 12 delay lines per frame, the frames are 5.25" (3 rack units).
Beschikbaarheid:: 3 op voorraad
Bel voor prijsopgave
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

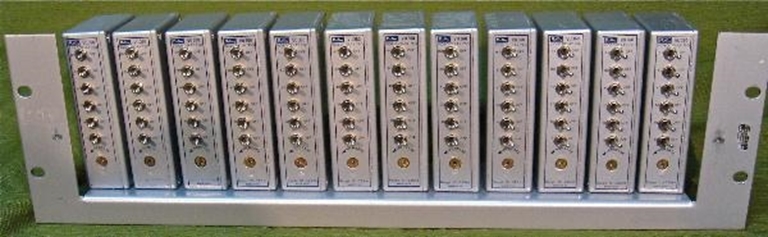

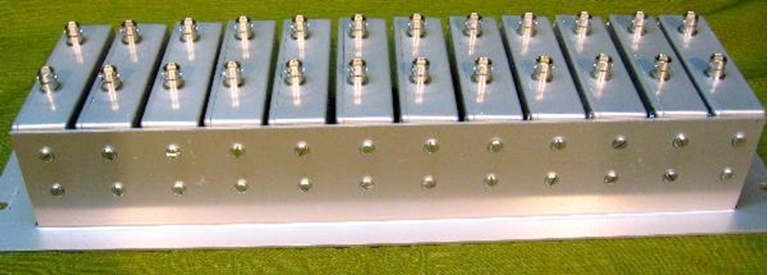

These delay lines were used in timing incoming video signals for Post production switchers and processors.  Each steel rack tray contains 12 delay lines in a 5.25" (3 Rack units) mount.

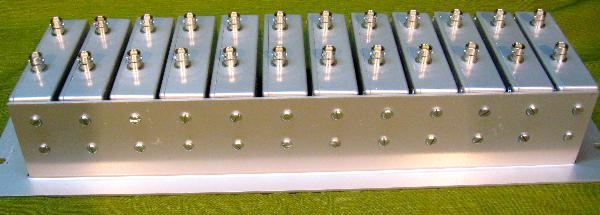

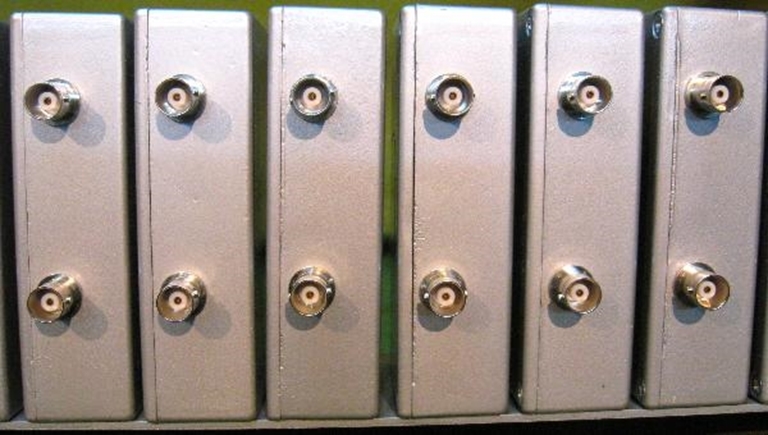

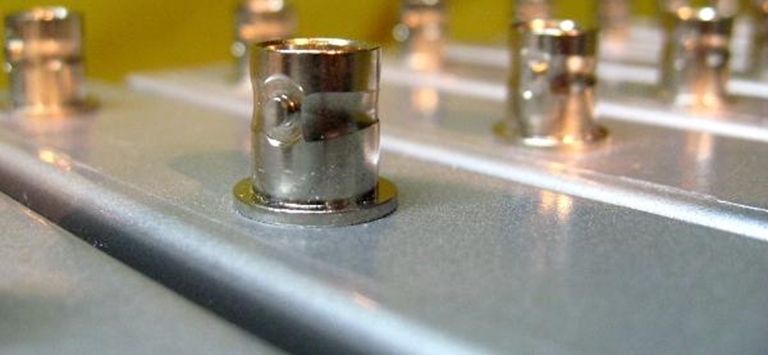

Each Delay line has a pair of BNC jacks, they can be cascaded for longer delay times.

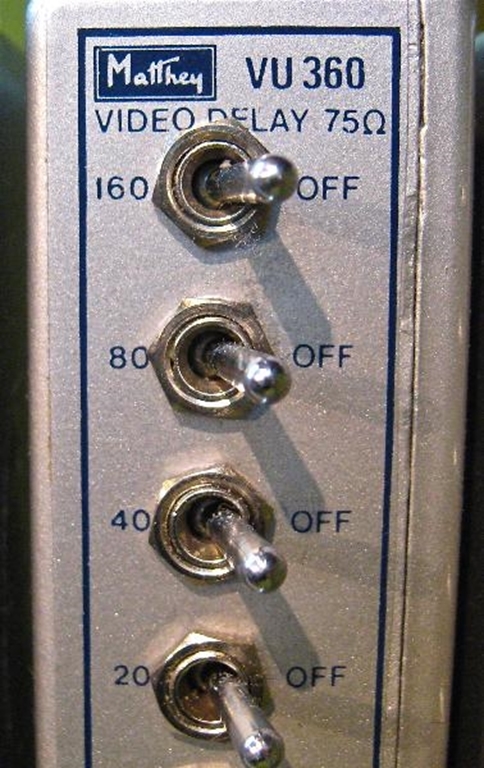

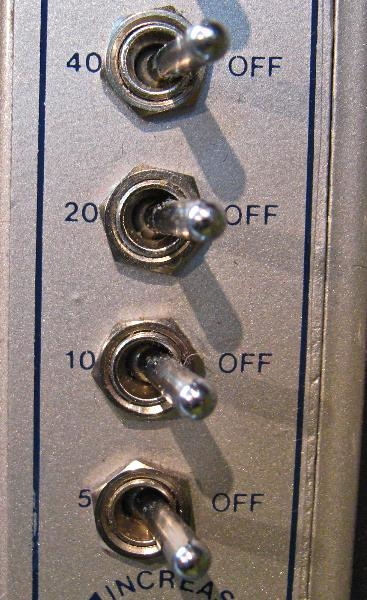

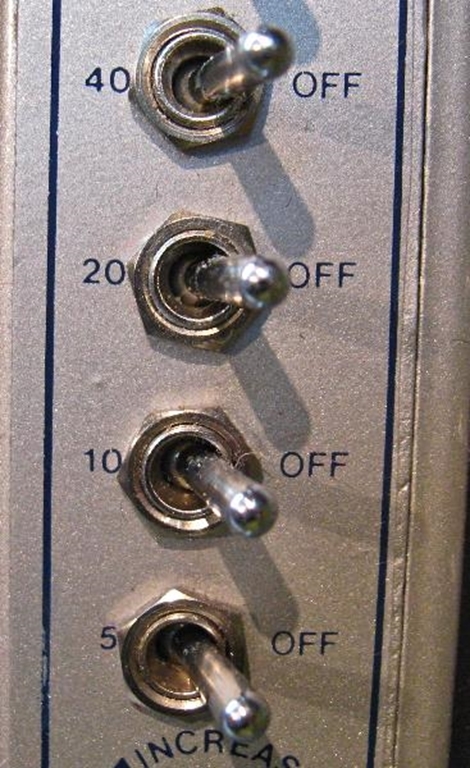

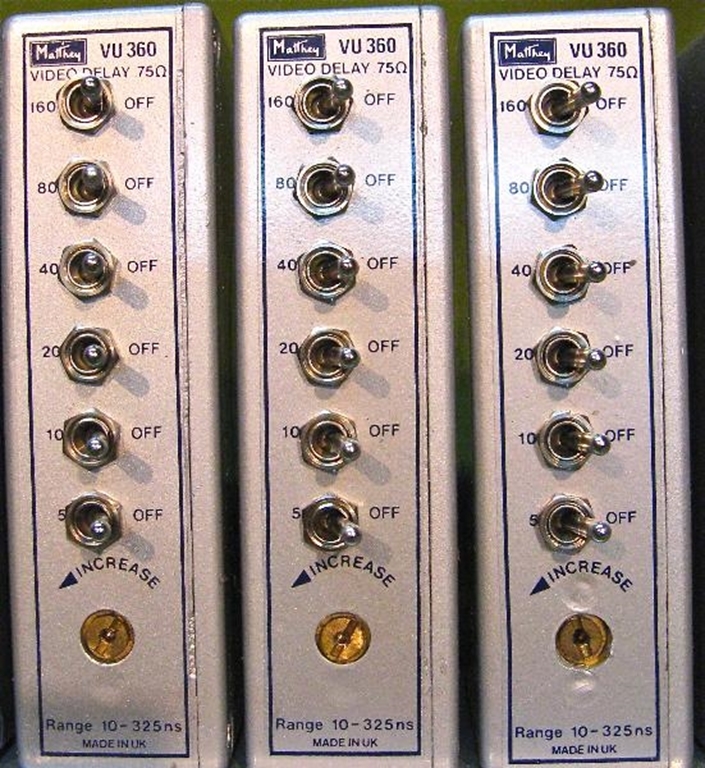

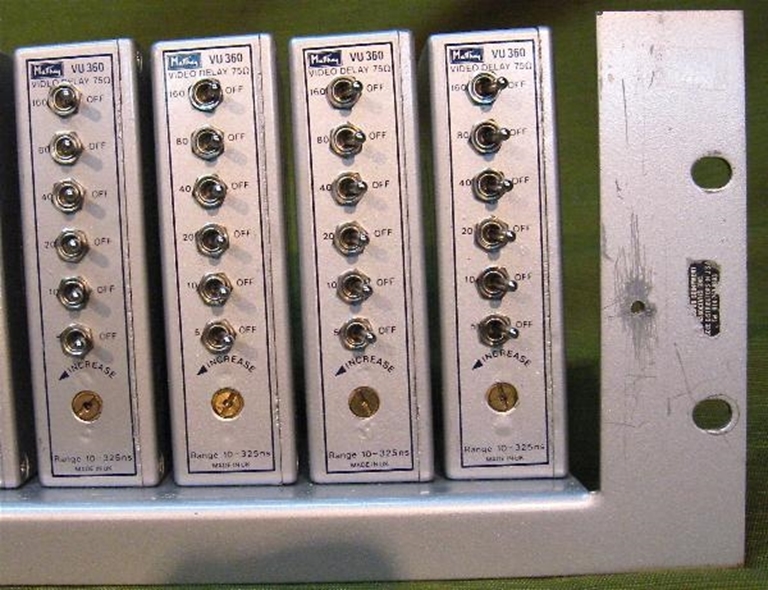

Each Delay unit has 6 separately switched delay taps at the following increments:

  • 160 nSec
  • 80 nSec
  • 40 nSec
  • 20 nSec
  • 10 nSec
  • 5 nSec

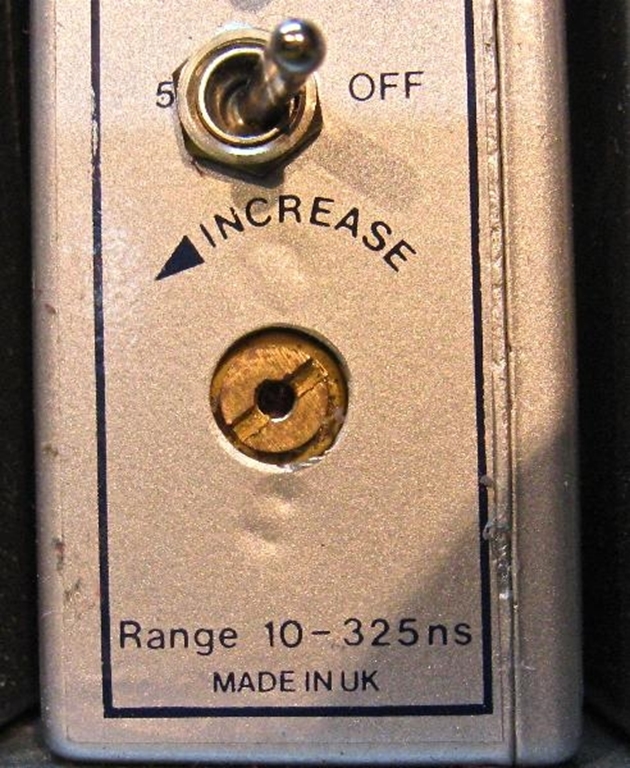

In addition there is a variable delay for a precise delay adjustment.
