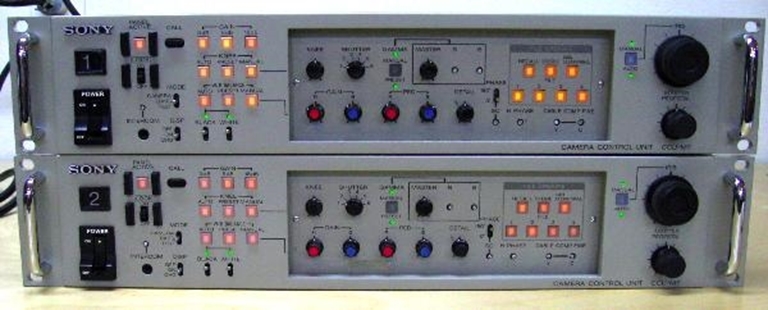

Sony CCU-M7CCUs, Reduced Price!

These CCUs connect to a variety of Sony Camera Models and provide full control of all of the necessary parameters for painting and matching cameras used in multi-camera productions.

These were tested with DXC-537s & D-30 cameras some time ago, and are being sold AS IS. They were in excellent working condition when removed from a small local corporate studio and are in very good cosmetic condition.


Model Details
Full control camera unit , includes AC power supply. Requires optional CCZ-A cable(s) for operation up to 1000'.Accepts optional RM-M7G miniature remote.
Features:
▪ Full remote control of DXC-M7 series color video camera with maximum cable length of 300m (999ft)
▪ Remote control of DXC-537,637, D30, D35 series color video camera with maximum cable length of 300m (999ft)
▪ Scene File memory for up to four shooting conditions
▪ VBS, R/G/B, Y/R-Y/B-Y, Y/C outputs

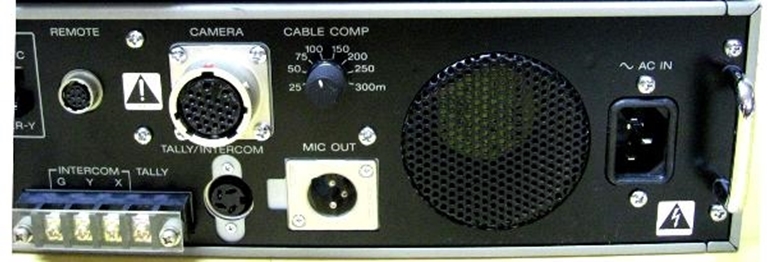

▪ XLR connector for MIC output
▪ Built-in AC power supply
▪ 19-inch rack mountable and 2-units high
▪ Power Requirements: AC-85V-138V, 50/60Hz
▪ Power Consumption: 62W
▪ Operating Temperature: -10ø to 45øC (14øF to 113øF)

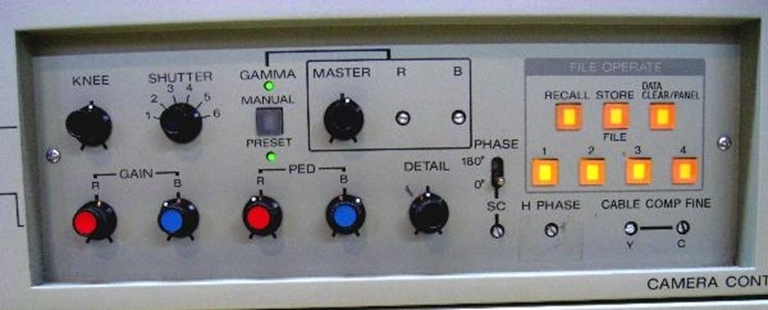

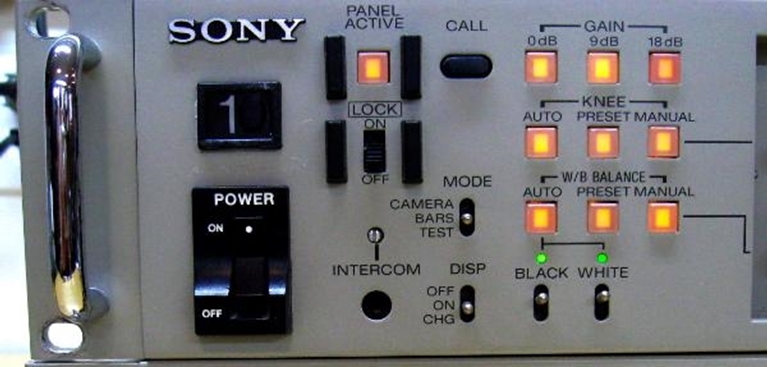

Controls:

▪ Gain select
▪ Output mode select
▪ Status display ON/OFF
▪ Shutter speed select
▪ Iris (auto/manual)
▪ White balance (auto/manual/preset)
▪ R/B gain
▪ Black balance (auto/manual/preset)
▪ Master pedestal
▪ R/B pedestal
▪ Gamma (manual/preset)
▪ Master gamma R/B gamma
▪ Knee

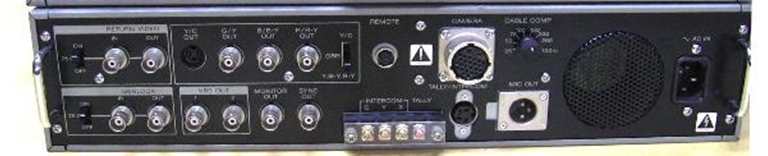

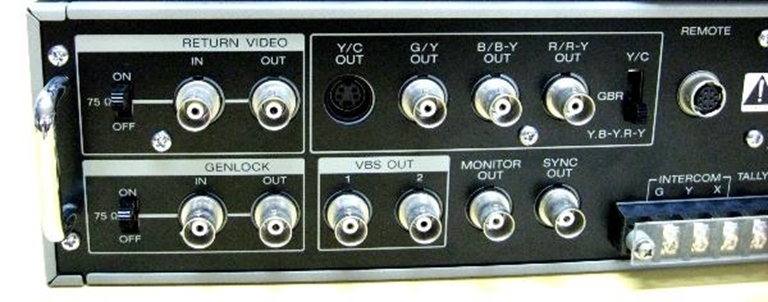

Inputs/Outputs (all BNC):

▪ VBS OUT (x 2); 1V p-p
▪ R/G/B OUT 0.714Vp-p,
▪ Y/R-Y/B-Y OUT; Y: 1.0Vp-p, sync negative, R-Y/B-Y: 0.7Vp-p (75% color bars)
▪ Y/C OUT; Y/C connector (4-pin), 1.0Vp-p,
▪ SYNC OUT; 4.0Vp-p, 7
