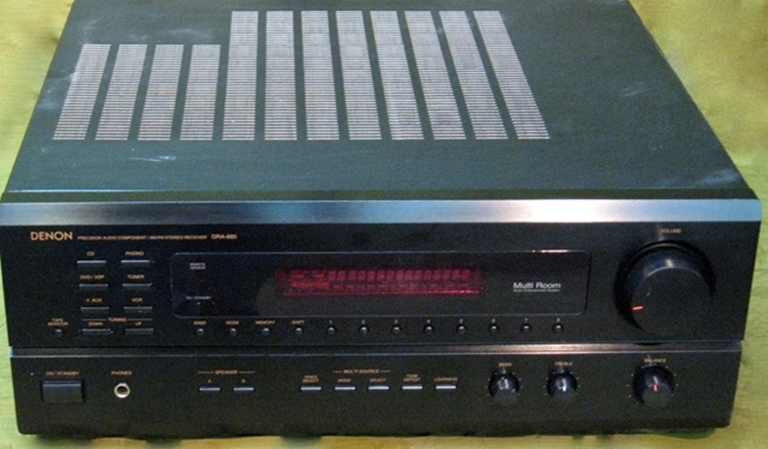

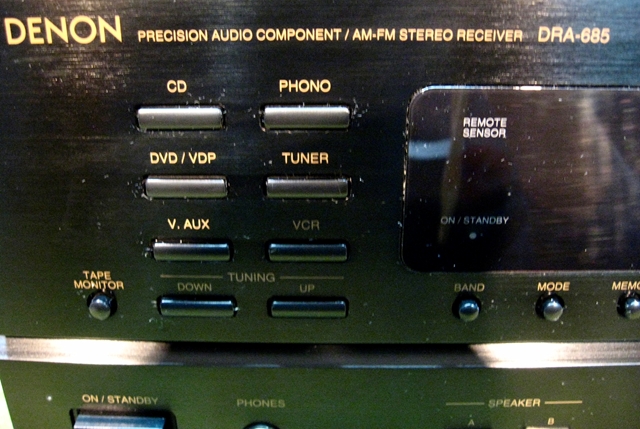

This unit is in Good cosmetic condition, and is in perfect working order. There is no remote included with this receiver.
Information From Denon:
Superb Stereo Sound and Multi-room Entertainment Convenience
Featuring a multi-room audio function, along with video selection and high power, the DRA-685 serves as the heart of a stereo music system while providing stereo sound for stereo video sources. With a prodigious 100 watts of power per channel, the DRA-685 can easily drive virtually any modern loudspeaker system with authority and clarity. A full suite of convenience and switching functions makes the DRA-685 an indispensable choice for a well equipped music system.
Signal Level Divided Construction (SLDC)
The circuit handling low-level and high-level signals have been divided into separate blocks to ensure that influences from these signals on each other are held to an absolute minimum. This new chassis design in the DRA-685 is called the Signal Level Divided Construction (SLDC). Signals for output are cleaner than before, allowing them to be reproduced with even greater fidelity and clarity.
High-Quality Power Amplifier Section
100 W + 100 W (8 ohms, 20 Hz - 20 kHz, 0.05 %)
Providing 100 watts per channel, into 8 ohms, from 20 Hz to 20 kHz, with no more than .05% total harmonic distortion, the DRA-685 provides separates class audio performance. Together, these components provide superb low impedance drive capability with tremendous dynamic reserve capacity. High speed, wideband discrete power transistors provide delicacy and impact, ideally suited to the needs of the highest quality analog and digital sources.

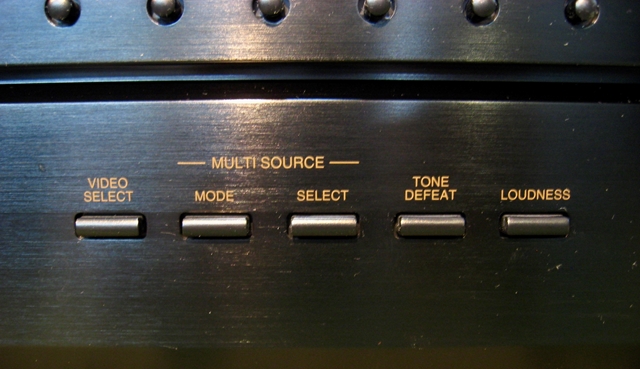

Multi Source Function
The DRA-685's Multi Source function lets you enjoy two different programs in two different rooms. For example, listen to the CD player in the main room, while another family member listens to the tuner in another room in the home. Dedicated multi-room output jacks, with variable volume level adjustment via remote control, are for connection to powered second zone speakers or a second zone amplifier.
Room-to-Room Remote Control
External remote control equipment, including IR re-transmitters and IR remote receivers, such as Denon's RC-616, 617S, 617W, and 618 devices, can be connected to the IR remote input and output terminals.
• Integral System (IS) Remote Controller (RC-872) The DRA-685 is provided with a pre-learned remote control, that con- tains codes for other Denon components, along with codes for other products from other manufacturers, such as DVD, VCR, TV, etc.
N E W
Easy Simulcast Copy
This feature not only permits reception and recording of FM/TV simulcast programs onto videotape, but it can also be used to combine, for example, the sound from a CD with the picture from a video disc.
• Record Out Selector
Let's you listen to one source (example: Tuner), while recording another source (example: CD). Ideal for making unattended tape copies.

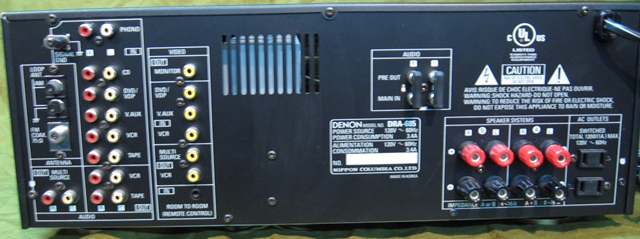

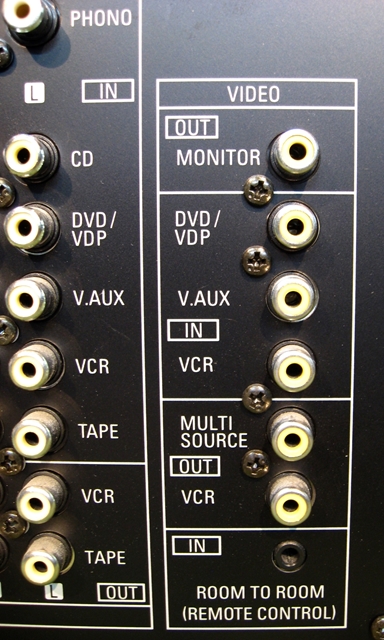

Video Terminals
Stereo video sources, such as hi-fi VCR, stereo TV, and DVD can all be easily connected to the DRA-685's VDP, VCR and Video Aux terminals.
Video Select Function
Allows you to select a video source, and then select an alternate audio input source, ideal for simulcasting, as well as watching TV sports programs while listening to radio commmentary.

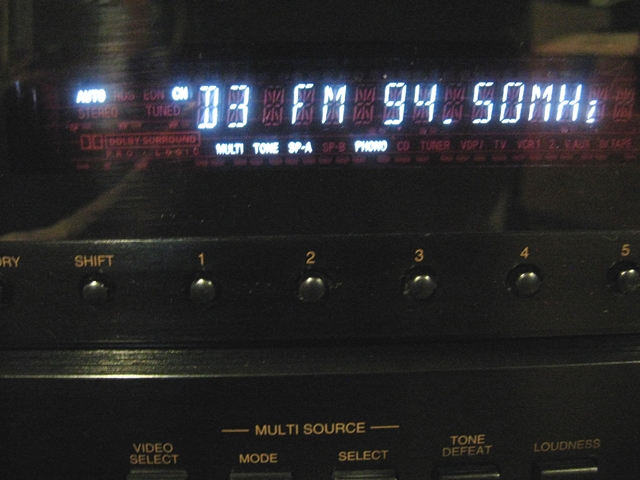

40-Station AM/FM Random Preset Memory Tuning
Auto Preset Memory
FM stations can be searched by the tuner, and automatically stored in the preset memory up to 40 stations, ideal for locales with many FM stations.
Specifications
Power Amplifier Section
Rated output ............................... 100 W + 100 W (8 ohms, 20Hz - 20kHz, THD 0.05 %)
Total hamonic distortion ........ 0.009 % (-3 dB at rated output, 8 ohms)
Frequency response.............. 10 Hz - 50 kHz ±1.5 dB (at 1 W)
Preamplifier Section

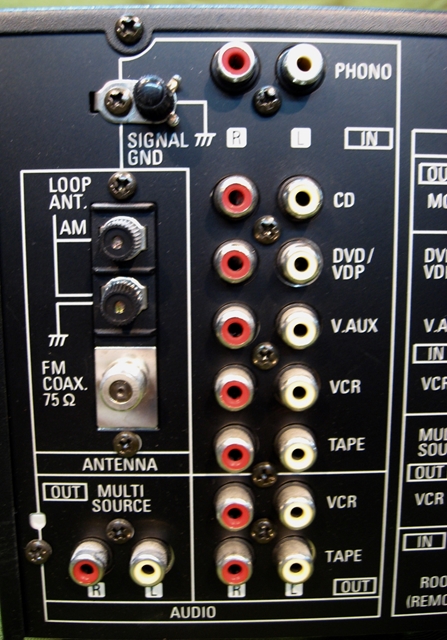

Input sensitivity/Impedance
PHONO(MM) ................. 3.0 mV/47 kohms
CD, TAPE, VDP,
VCR, V-AUX .................. 200 mV/47 kohms
RIAA deviation .................... ±0.5 dB (20 Hz - 20 kHz)
Tone control ........................ Treble: ±10 dB at 10 kHz
Bass: ±10 dB at 100 Hz
FM Section
Tuning frequency range ...... 87.5 - 107.9 MHz
Usable sensitivity ................ 1.4 µV (14.2 dBf)
S/N 50 dB sensitivity ........... Mono: 2.8 µV (20.2 dBf)
(µV at 75 ohms)
Stereo: 23 µV (38.5 dBf)
Sophisticated Tuning Circuit Design
Thanks to the PLL circuit design, reception drift is a thing of the past. The DRA-685 also has a 4-pole varactor diode in its front end to guarantee accurate input of station frequencies.
• Auto scanning of radio frequency bands
• Fast up/down manual tuning
• Manual step tuning
• Last-channel-tuned memory
Other Useful Features
• Loudness Function

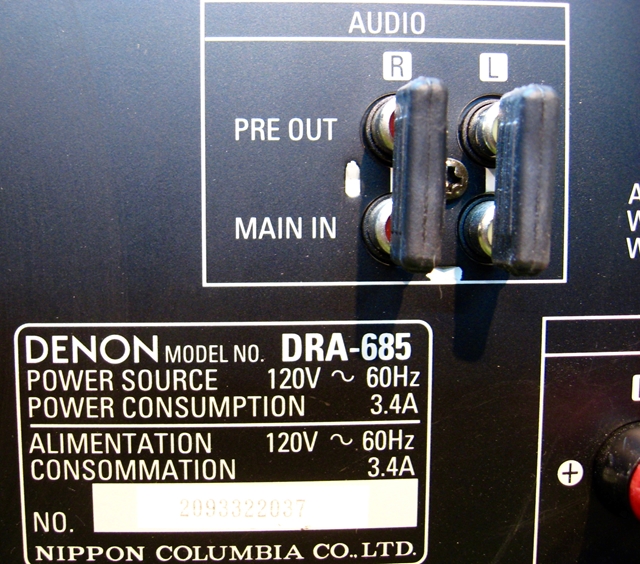

• Pre-Output and Main-Input Jacks

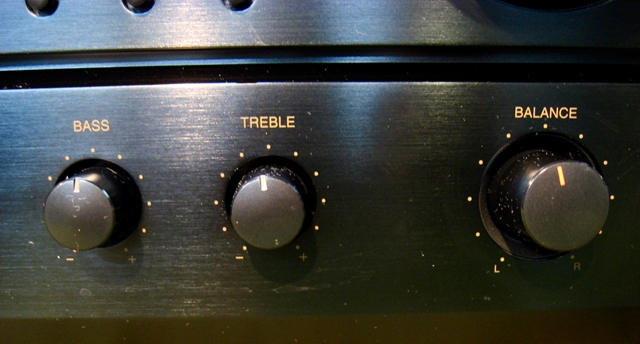

• Bass and Treble Tone Controls
• Tone Defeat
• Muting Function via remote controller
• Motor-driven Volume Control

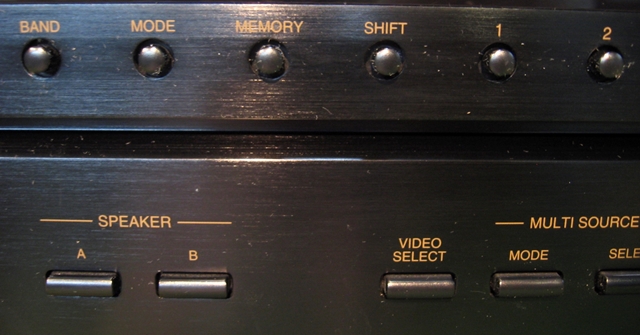

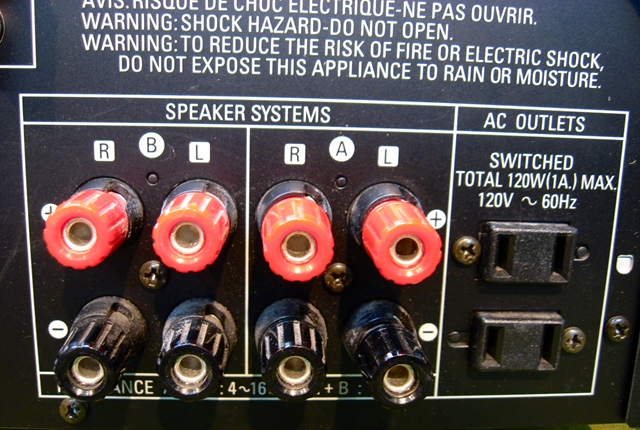

• A/B Speaker Switching
• Last Function Memory
• Switched AC Outlets
Signal-to-noise ratio (A-weighting) .. Mono: 80 dB, Stereo: 75 dB
Total hamonic distortion ..................... Mono: 0.15 %, Stereo: 0.3 %
Capture ratio....................................... 1.5 dB
AM suppression.................................. 50 dB
Image rejection ................................... 70 dB
Effective selectivity ............................. 55 dB (±400 kHz)
Freqency response.......................... 30 Hz - 15 kHz, +0.2, -1.5 dB
Stereo separation ............................ 40 dB (1 kHz)
AM Section
Tuning frequency range................... 520 - 1710 kHz
Usable sensitivity............................. 18 µV
General
Power supply ................................... AC 120 V, 60 Hz
Dimensions...................................... 434 (W) x 171 (H) x 416 (D) mm
Weight ............................................. 10.0 kg, 22.0 lbs
