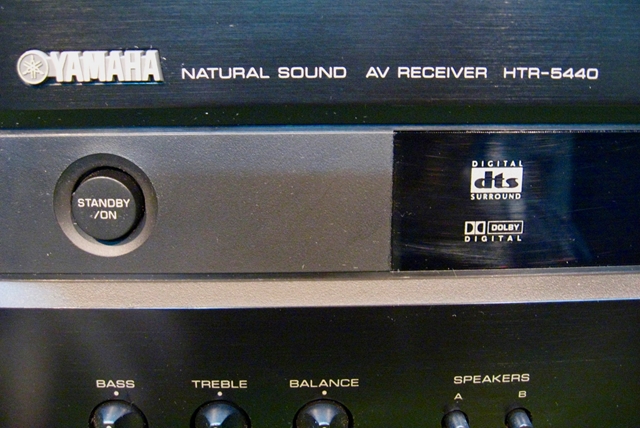

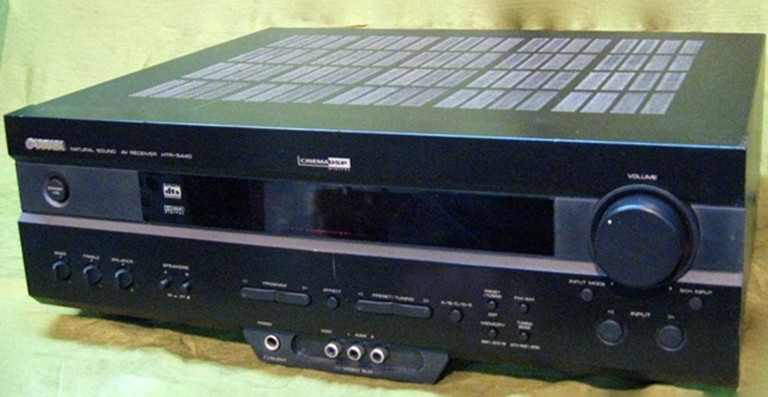

Yamaha HTR-5440 AV Receiver

Controls, Features:

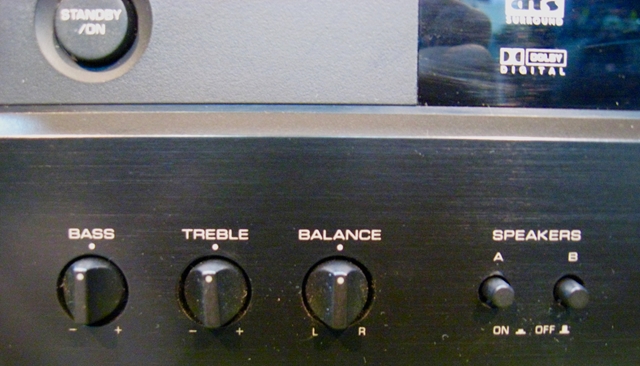

Volume, Balance, Bass, Treble

6CH INPUT

Press this button to select the source connected to the 6CH INPUT jacks. The source selected by pressing 6CH INPUT takes priority over the source selected with INPUT

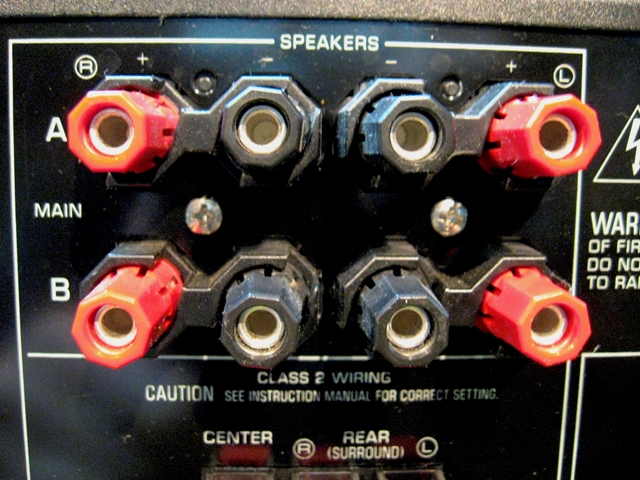

SPEAKERS A/B

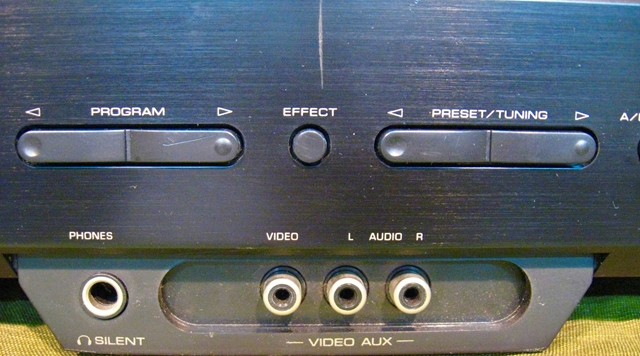

PROGRAM l / h

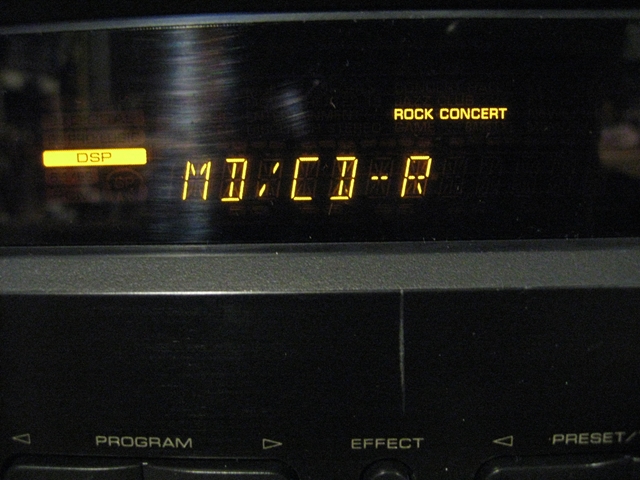

Press l or h to select a DSP program when the effect speakers (center and rear) are turned on. The name of the selected program appears on the display.

EFFECT

Press this button to turn on or off the effect speakers (center and rear). If you turn them off, all Dolby Digital and DTS audio signals except for the LFE channel are directed to the right and left main speakers. In that case, the output levels of the right and left speakers may not match.

PHONES jack

VIDEO AUX jacks

Connect an auxiliary audio or video input source such as a game console or camcorder to these jacks. To reproduce source signals from these jacks, select V-AUX as the input source.

PRESET/TUNING l / h

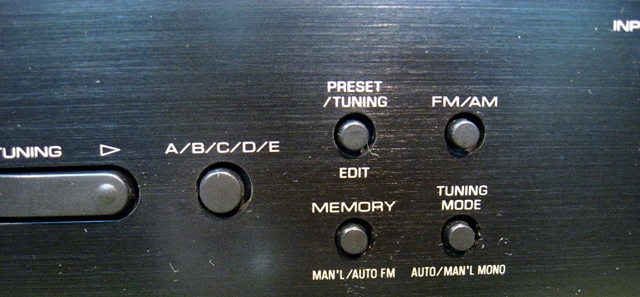

A/B/C/D/E

Press this button to select one of 5 preset station groups (A to E).

PRESET/TUNING (EDIT)

MEMORY (MAN'L/AUTO FM)

Press this button to store the broadcasting stations. Hold down this button for more than 3 seconds to begin automatic preset tuning (for FM stations only).

TUNING MODE (AUTO/MAN'L MONO)

FM/AM

INPUT l / h

Press these buttons to select the input source (DVD, AUX, MD/CD-R, TUNER, CD, V-AUX, VCR, D-TV/CBL) that you want to listen to or watch. The name of the selected input source appears on the display.
