26 Pin Multicore Camera Cable Breakout Boxes

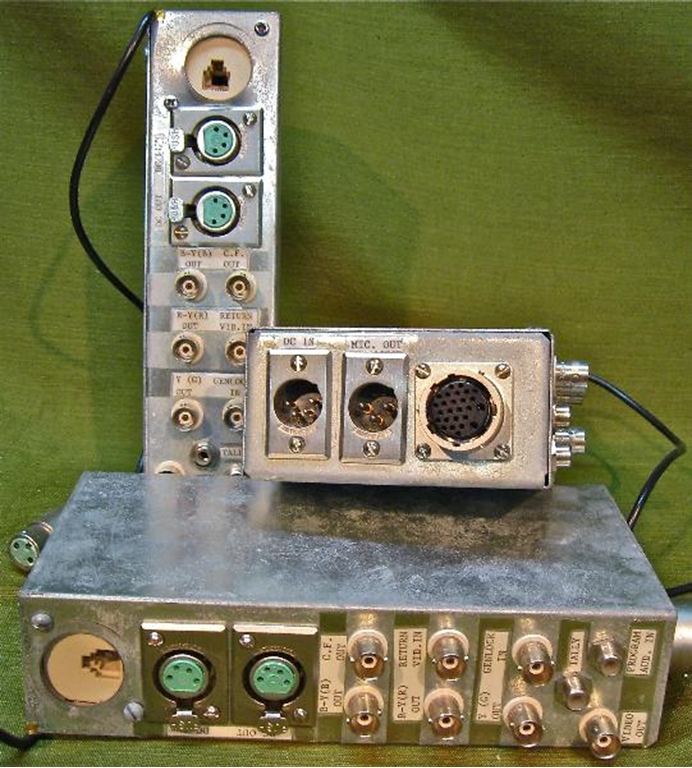

These boxes were custom built for a corporate studio we decommissioned some time ago.   These are similar to the TecNec Patchadapt series (BB-26RGB-F) and provide many more signals than just the RGB outputs.   They were used with Sony BVP7 cameras and they have:

• 26 Pin Female connector

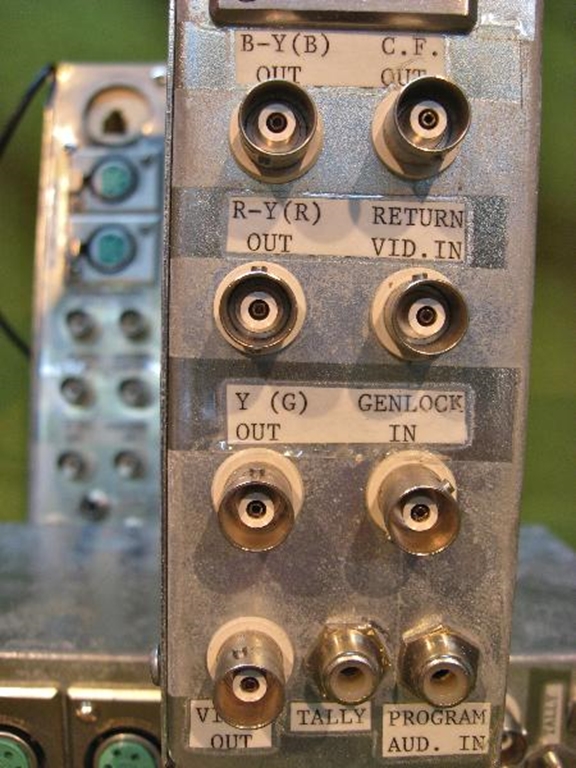

• RGB on BNC
• Genlock In
• Composite out
• Return Video In
• Program audio (RCA)

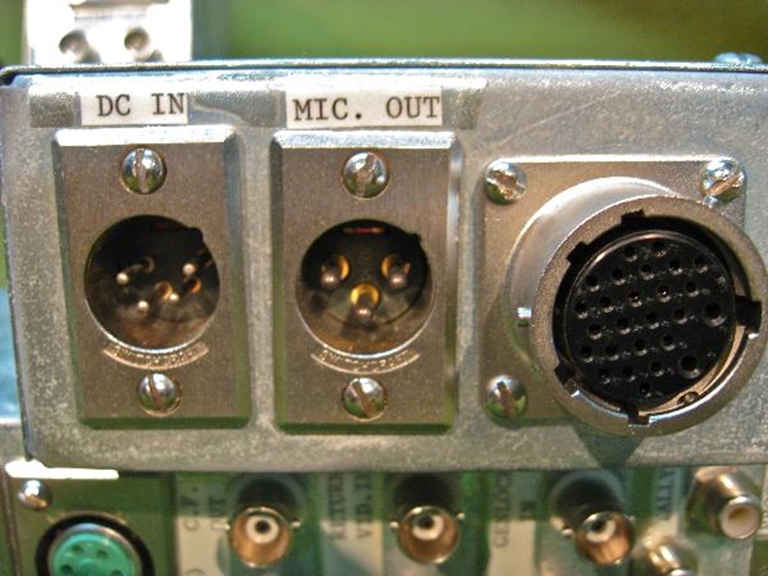

• Mic Out (A3M)
• 12 volt DC In and Out (A4F & A4M)
• Tally (RCA)
• RMP out on XLR pigtail
• 8x4x2 inch steel 2 piece shell

Unfortunately we have no way to test these breakouts, but we'd be happy to confirm any pinouts for you.
