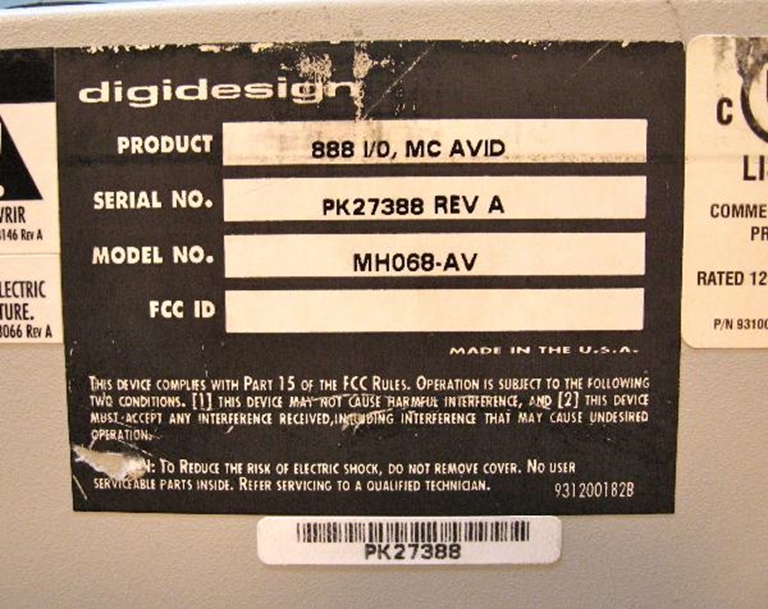

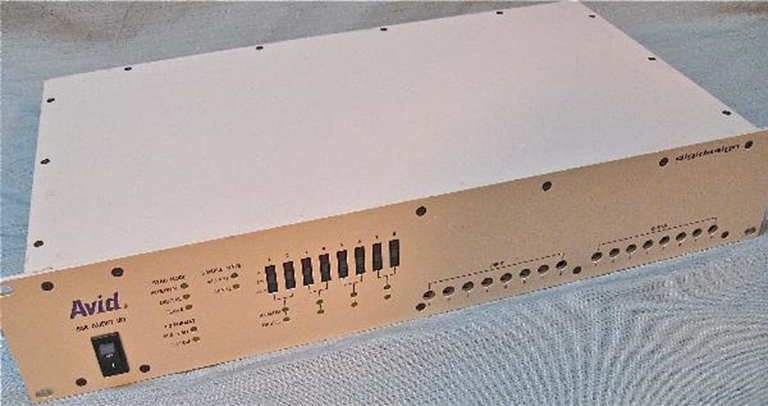

Avid Digidesign 888 Audio I/O, Model MH068-AV

This interface was removed from a working edit suite (with Avid 0020-00365-01 BoB), and is in VVG cosmetic condition.

The Manual for the Digidesign 888/24 can be found here:

http://akarchive.digidesign.com/support/docs/888_24_IO_Guide.pdf

Additional Product Info from Avid website:

Technical Specifications

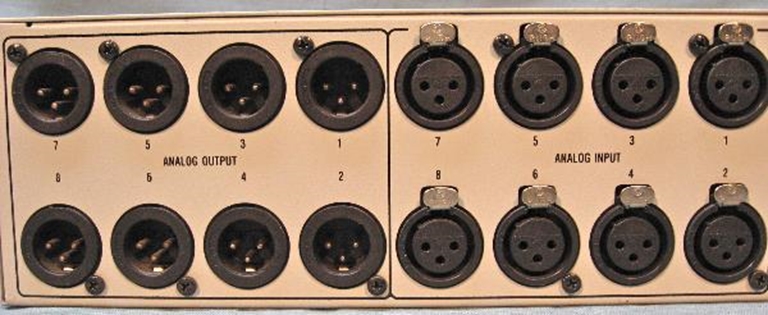

Analog Inputs/Outputs: Actively balanced XLR connectors, outputs internally switchable between
+4 dBu and –10 dBV line levels
Analog Level Trimming:

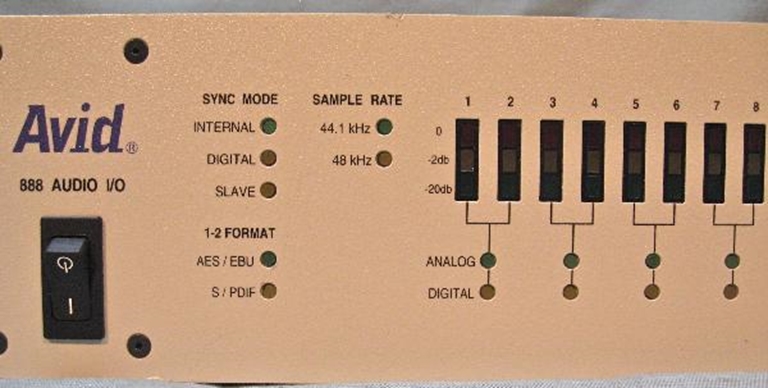

- Accessible from front panel

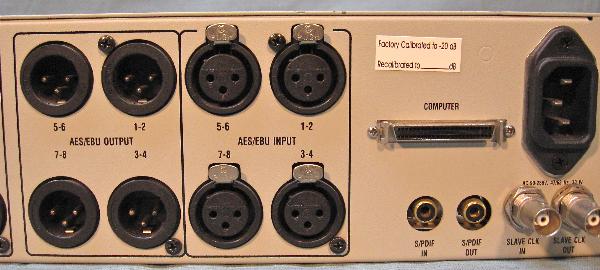

Digital I/O AES/EBU:
- 8 channel; balanced XLR connectors
Digital I/O S/PDIF:
- 2 channel; coaxial RCA connectors
Sample Rate:
44.1 kHz or 48 kHz, ±10ppm
Clock Reference:
- Super Clock (256x) sample clock In/Out;
BNC connectors; additional clock references
supported via Digidesign's Universal
Slave Driver, SMPTE Slave Driver, Video
Slave Driver and other optional synchronizers
Nominal Operating Level: +4dBu; factory calibrated at –18dB headroom

A/D Specifications
SNR (signal-to-noise ratio):
- 113 dB (balanced, A-weighted)
- 110 dB (unweighted)
THD: 0.003% –0.01 dB @ 1kHz; 20 Hz-20 kHz (band-limited)
Maximum Input Level: +26dB
Frequency Response: ±1 dB, 20 Hz–20 kHz
Clock jitter: < 40pS RMS 22Hz-22kHz BW

888/24 I/O D/A Specifications
SNR (signal-to-noise ratio):
- 110 dB (balanced, A-weighted)
- 107 dB (unweighted)
THD:0.003% –0.01dB @ 1kHz; 20 Hz- 20 kHz (band-limited)
Maximum Output Level: +26 dB/channel (bridging loads)
Frequency Response: ±1dB, 20 Hz–20 kHz

Physical Specifications
Power requirements: 90–260 VAC, 47 63 Hz; 30 VA; auto-switching
Weight: 7.6 lbs (4.1 kg)
Dimensions: 2U external rackmount device 19" x 3.5" x 9.75" (48.26 cm x 8.89 cm x 24.77 cm)
