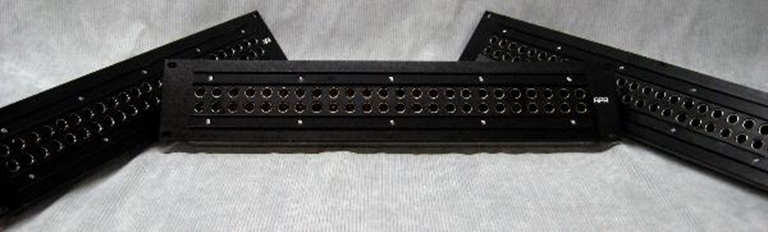

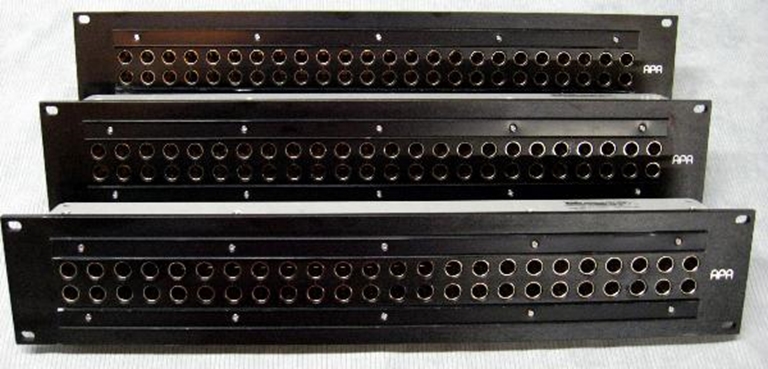

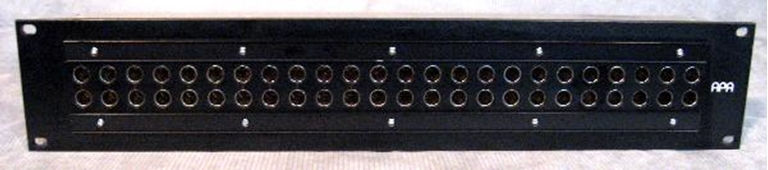

Bittree 48 point HD Weco Video Patch Panel

24 Normalling Bittree Jacks in an insulated Audio Accessories frame. Standard Weco (.090) pin size.
Manufacturer: Bittree
Availability: 2 in stock
Call for pricing
PRICE BREAKS - The more you buy, the more you save
Quantity 2+ 3+
Price $229.00 $189.00

Each 48 position panel contains 24 Normalling Bittree 2WHD/S WECO Jacks in an insulated Audio Accessories panel.  These panels are currently selling for over $750.

These are precision milled, high quality panels with wide designation strips.  The Bittree jack specifications are outstanding and will work in any environment: HD, SDI, RGB or Composite--AES/EBU audio patching.

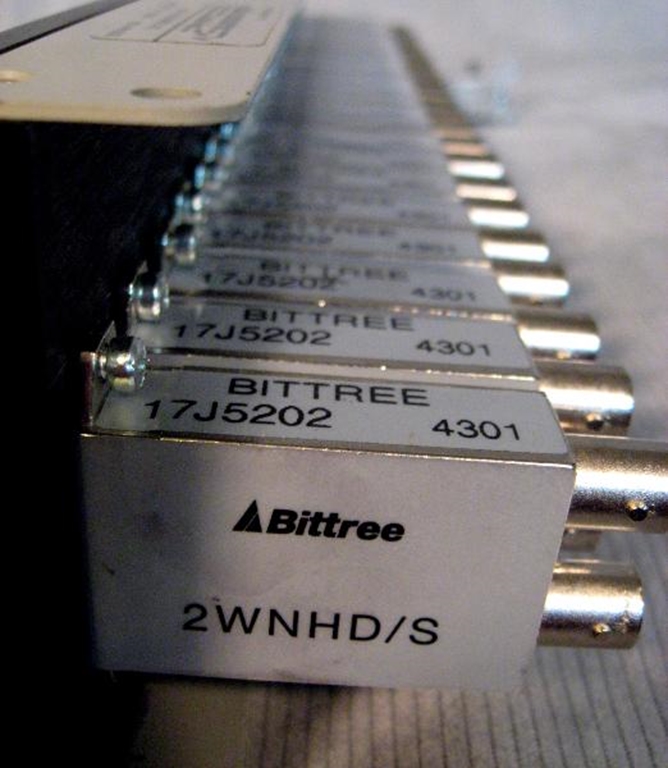

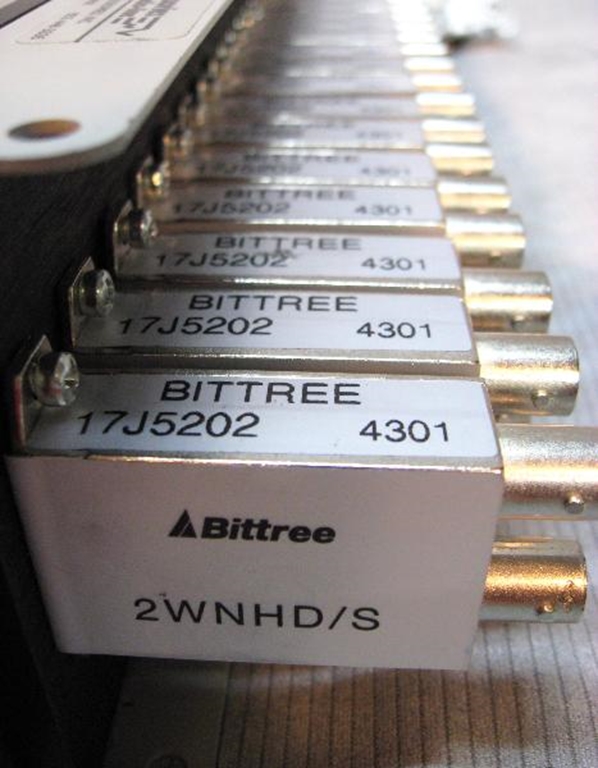

Bittree video jacks feature a 75-ohm high-frequency and BNC rear interface, and are designed for exceptional performance in conventional analog applications such as monitor routing, primary routing, re-routing, router backup and video distribution, as well as in high bit-rate applications such as HDTV, SDI, AES and high-resolution computer graphics.

Jack Specifications

30,000 minimum insertion cycles
True 75ohm impedance with low return loss
High-bandwidth performance
Jacks conform to SMPTE 259M and SMPTE 292M
BNC rear interface
Jacks rated from DC to 3 GHz
