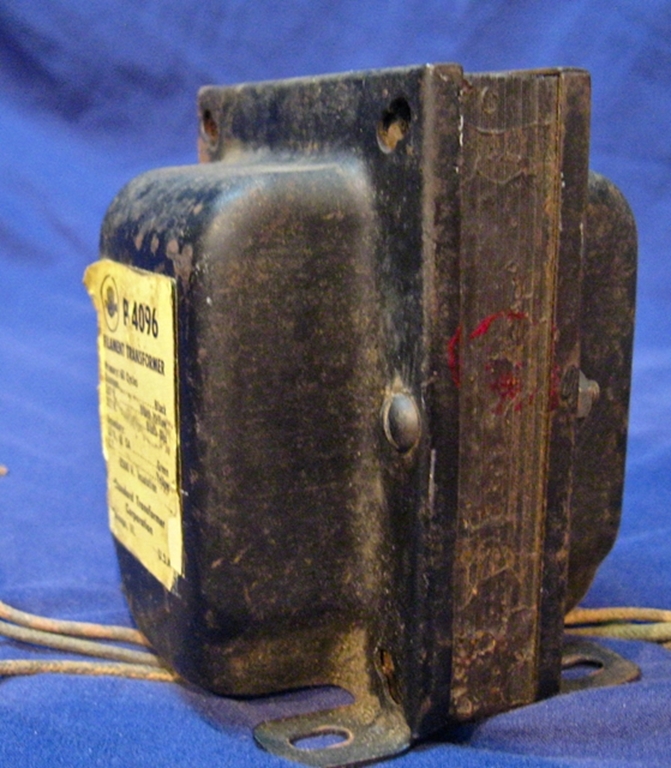

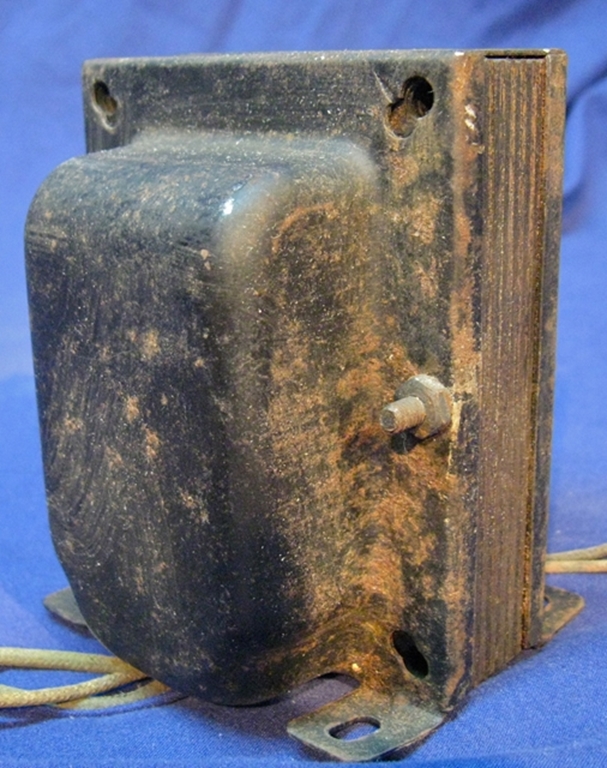

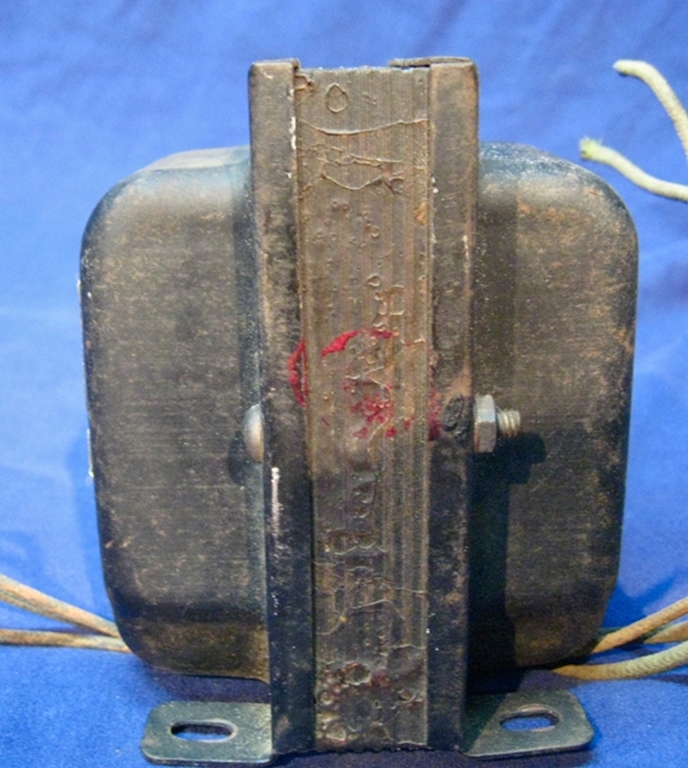

Chicago Transformer Company P-4096 Filament Transformer

This is a Dual Voltage Chicago Transformer power transformer, Model P-4096 , in Fair condition with cotton covered leads.   Used for Ham radio filament applications.   It measures 3.25" x 3.25" x 4" (H), and has 4 flanges on the bottom of the case.

The specifications are as follows:

• 107/117 Volt Primary
• 10 Volt  5.5A  Secondary, center tapped

• Test Volts 2500
• ~4 pounds
• Wire leads
• 4 bolt mount flanges on 2" centers
