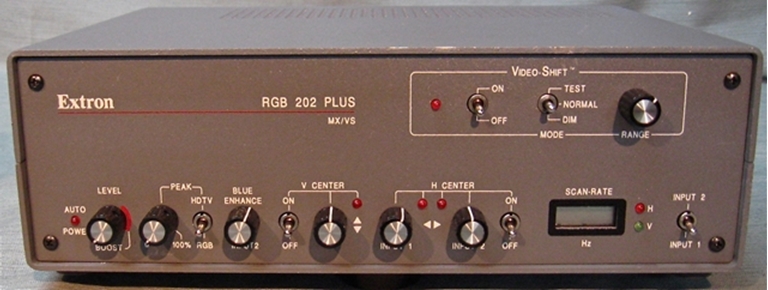

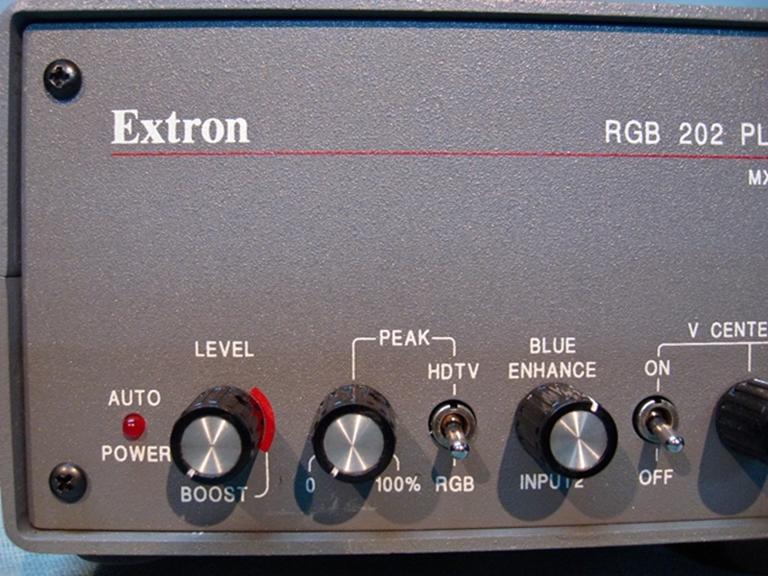

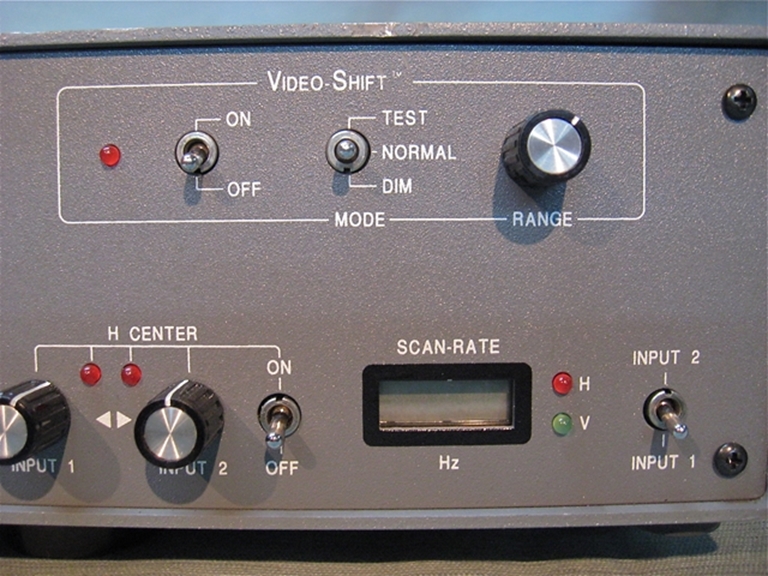

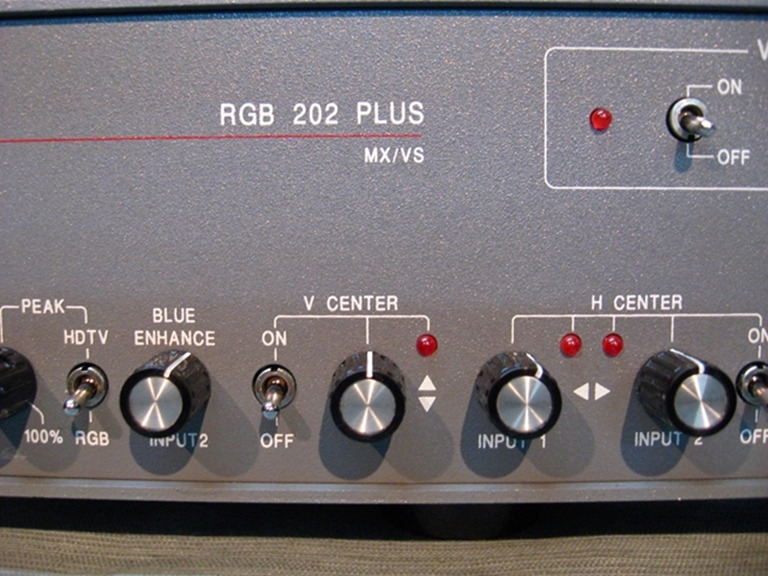

Extron RGB 202 Plus MX/VS sn206077

Computer video interface for Projectors, Monitors, and Panels. Retired by Extron, this is an early model with 2 9 pin inputs and RGBHV output. In VVG condition, untested.

Availability: Out of stock

$35.00

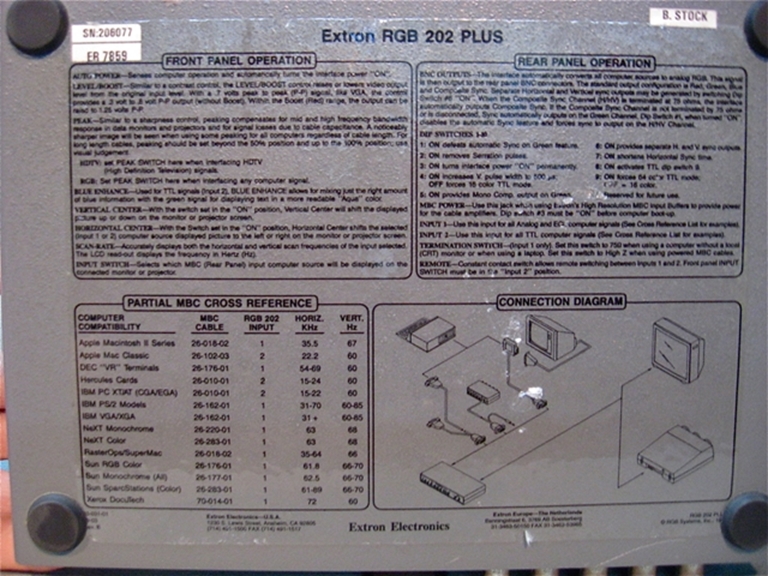

Extron does not list this particular model on their website. The information we do have has been gleaned from the RGB 202 Rxi, which has similar features. One of the primary differences is that this unit does not route Audio signals.

At the time of this posting, we were unable to fully test this unit, owing in part to a lack of suitable test signals, but all indications are that this unit functions perfectly.

If you are interesested in the RGB 202 Plus, we'd be happy to answer any questions you might have prior to making a desision.

Specifications — RGB 202 Rxi

Video Routing .......................................... 2 x 1 router

Gain ............................................... 0.5 V to 1.45 Vp-p

Bandwidth .................................... 300 MHz (-3 dB)

Rise time ........................................ 1.5 ns

Video inputs Number/signal type ................... 2 analog RGBHV, RGBS, RGsB, RsGsBs

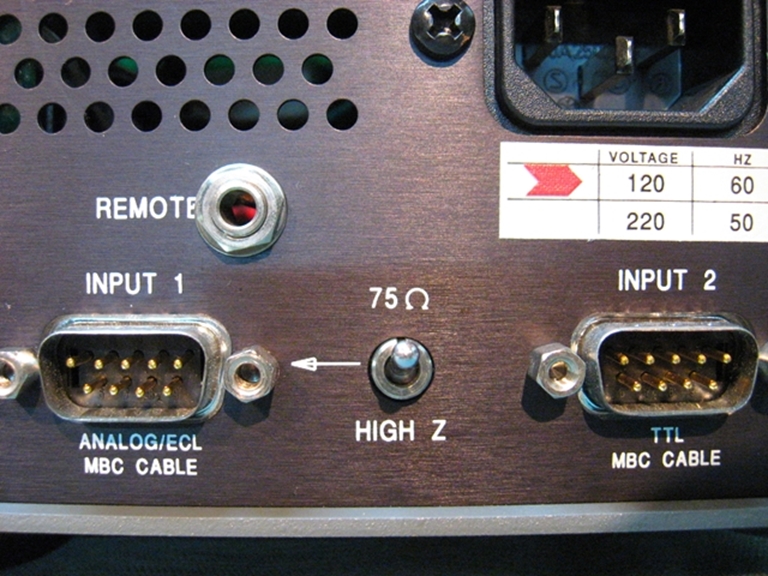

Connectors .................................... 2 male 9-pin D for MBC/LBC cable or buffer

Nominal level ............................... 0.7 Vp-p for RGB

Minimum/maximum levels ...... Analog: 0.3 V to 1.45 Vp-p with no offset at unity gain

Impedance .................................... 75 ohms or high Z, switchable (set to 75 ohms if no local monitor is connected)

Horizontal frequency .................. 15 kHz to 150 kHz

Vertical frequency ....................... 40 Hz to 140 Hz

Return loss .................................... <-30 dB @ 5 MHz

DC offset (max. allowable) ......... 4 V

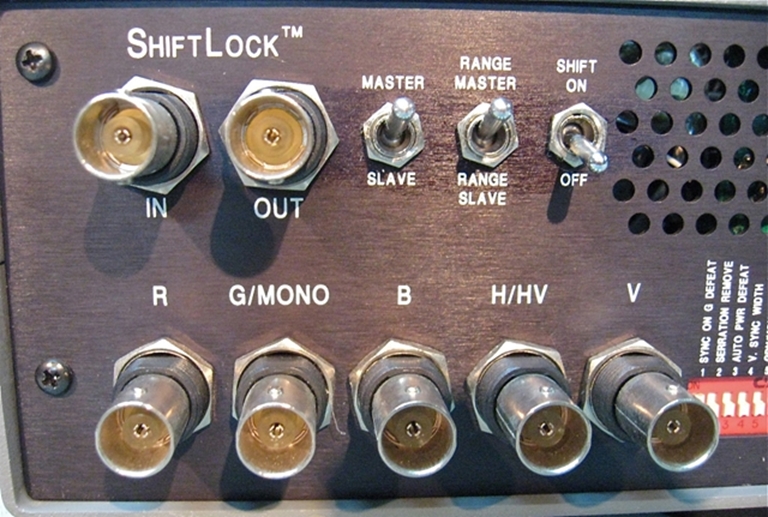

Video output Number/signal type ................... 1 analog RGBHV, RGBS, RGsB

Connectors .................................... 6 BNC female

Nominal level............................... 0.7 Vp-p for RGB

Minimum/maximum levels ...... 0.3 V to 1.30 Vp-p with 0.7 Vp-p nominal input level

Impedance .................................... 75 ohms

Return loss .................................... -30 dB @ 5 MHz

DC offset ....................................... ±5 mV with input at 0 offset

Sync Input type ..................................... RGBHV, RGBS, RGsB, RsGsBs

Output type .................................. RGBHV, RGBS, RGsB

Input level ..................................... 2 V to 5.5 Vp-p with ±0.2 VDC offset max.

Output level ..................................

TTL: 4 V to 5 Vp-p, unterminated

Input impedance .......................... 510 ohms

Output impedance ...................... 75 ohms

Max. propagation delay .............. 85 ns

Max. rise/fall time ....................... 2 ns

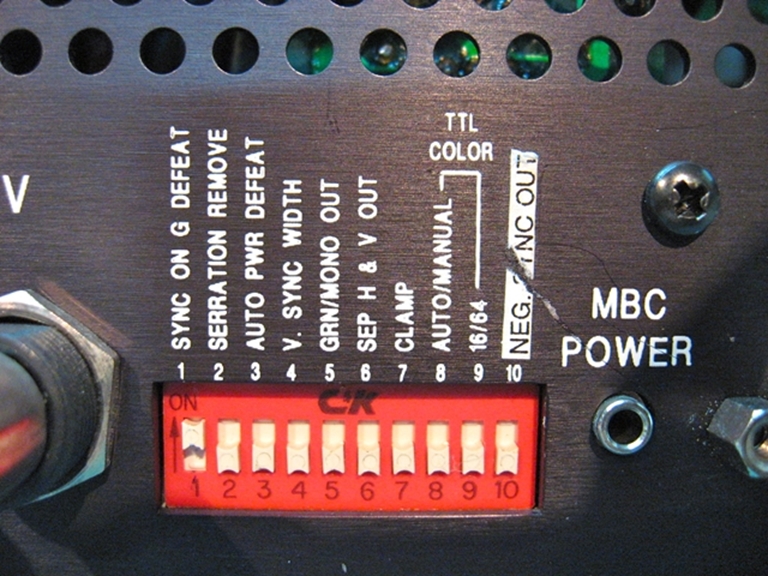

Polarity .......................................... RGBHV: tracks polarity (or force negative sync via DIP switch) RGBS, RGsB: negative
