Hickok 292X Crystal Controlled Microvolt Generator.SOLD.

This generator is in good condition, and the output section has been tested with a scope to confirm ranges, etc. Due to Age, this piece is Available Strictly As Is.

Availability: Out of stock

$149.00

Hickok corporation is known for building Tube Testers, Oscillators and other types of high quality electronic test equipment for manufacturing, labs, and the professional electronic service industry.

This generator was introduced in the early 1950s, as far as we can determine.

The generator covers frequencies in several bands:

125~325 KC
325~890 KC
890 KC~2.400 MC
2.4~6.9 MC
6.9~20 MC
20~70 MC
70~120 MC
150~220 MC

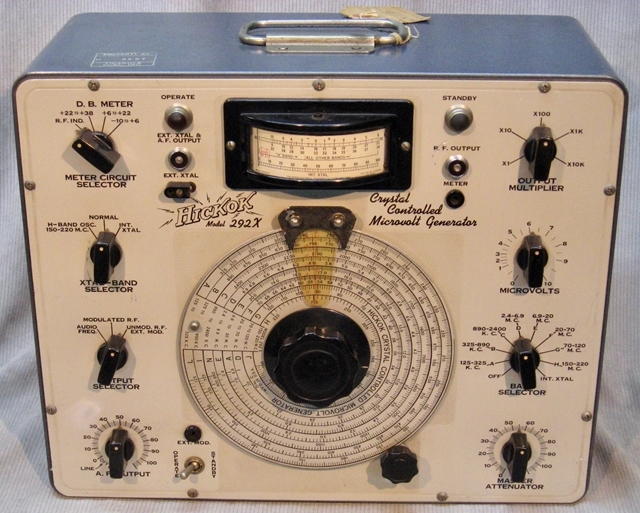

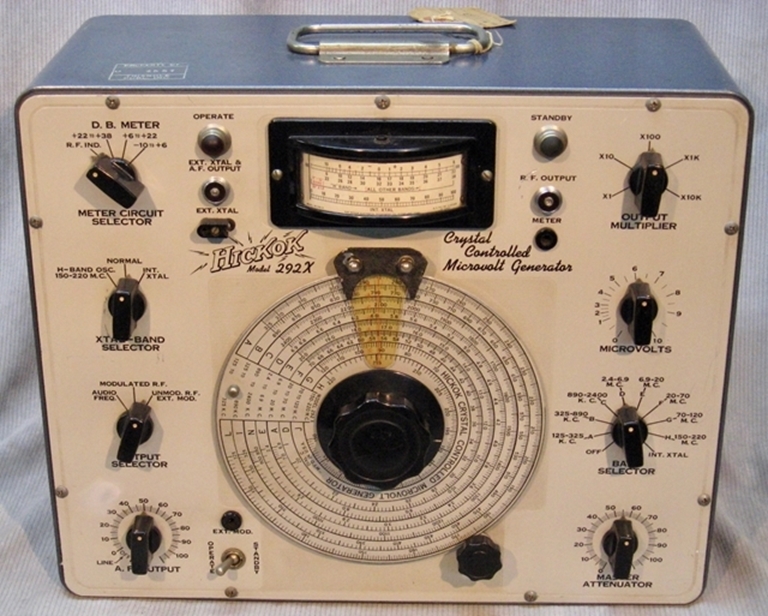

It generates Audio, Modulated RF and Unmodulated RF, with adjustments for:

Audio output level
Output Selector
Crystal Band selector
DB Meter Range select
Band Selector
Master Attenuator
Microvolt Adjustment
Ouput Multiplier
Vernier Frequency Dial

External Crystal and Audio Output Jack
RF Output Jack
Operate and Standby Lamps
Standby Switch.

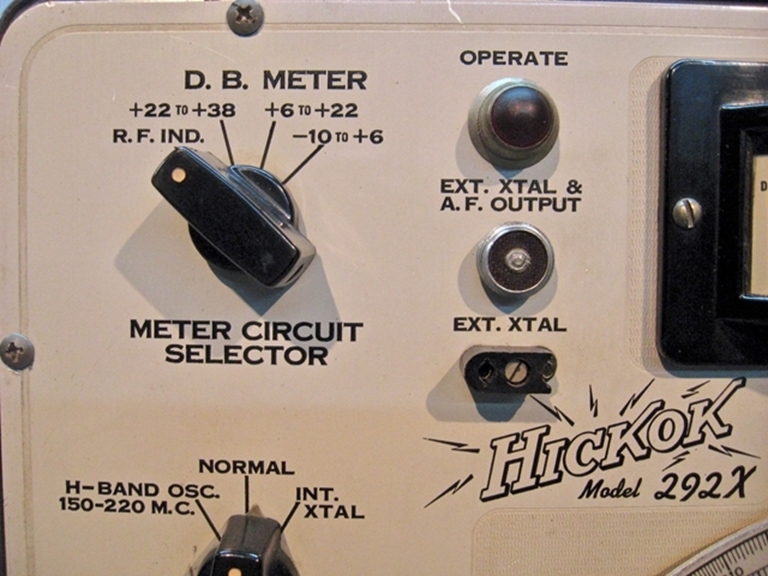

Defects of note:

Portion of External Crystal plastic mount is missing
scratches to the front panel below standby light,below Band selector and along the lower right corner. (please see photos)
worn paint area above left of AF output Pot.
