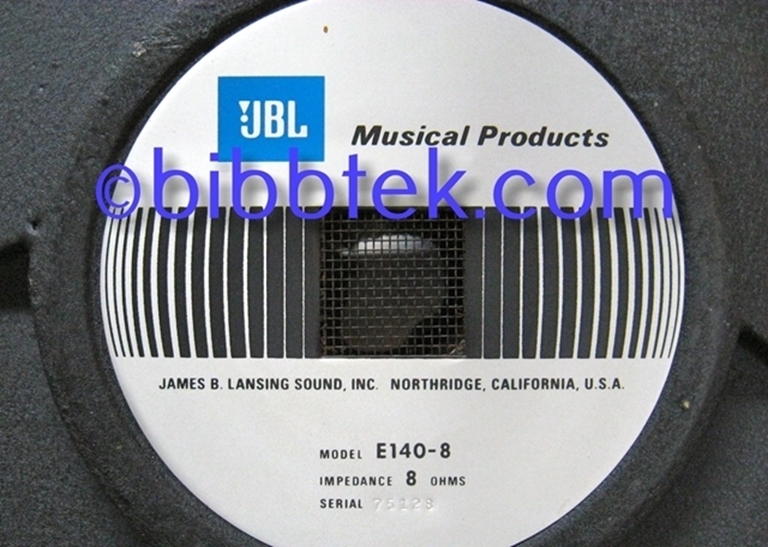

JBL E140-8 15" Bass Driver, sn 75128 SOLD OUT

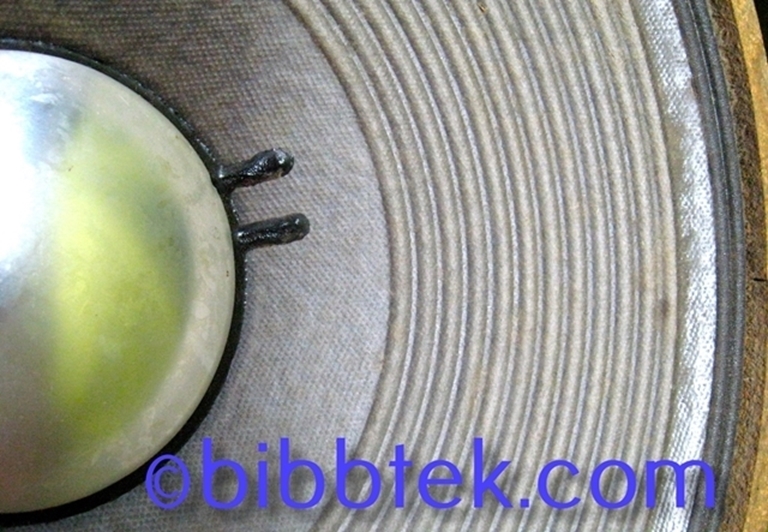

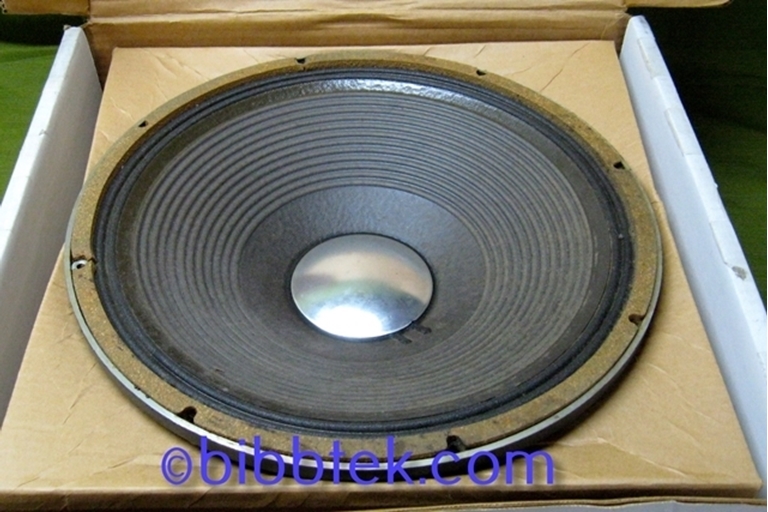

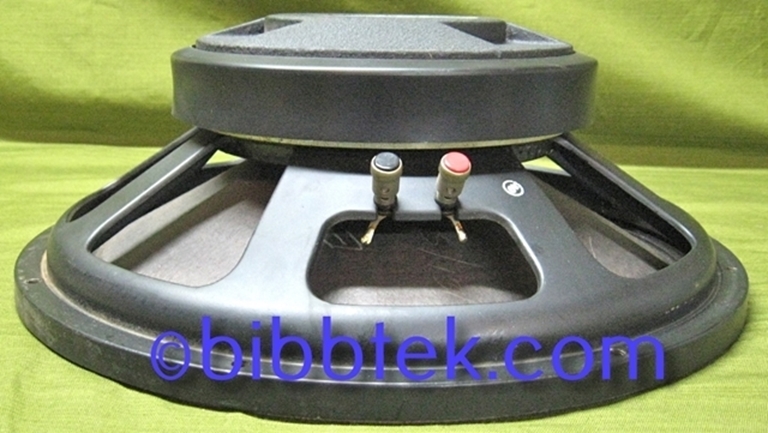

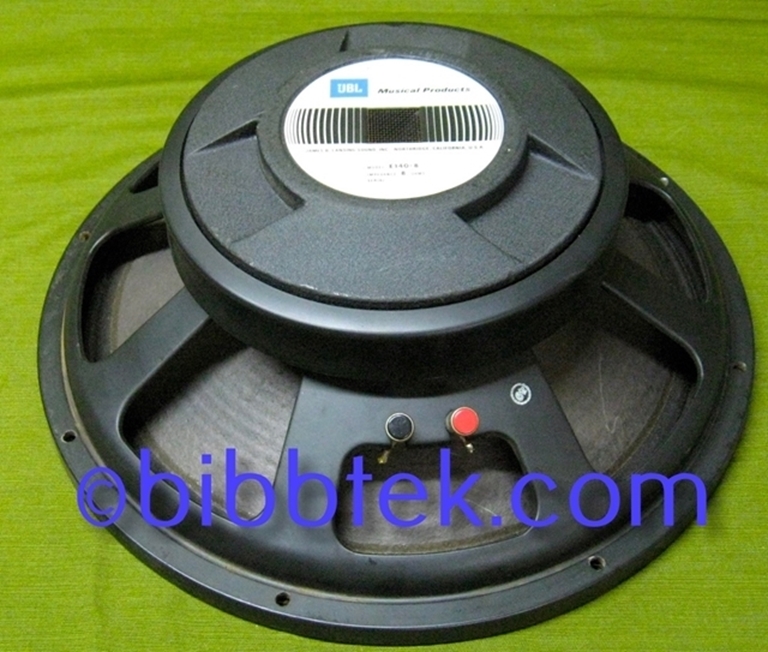

This driver is one of a pair that was purchased some time ago for a customer's project that has been abandoned.   This driver is in Very Good condition.

The E140 is the successor to the very powerful and popular D-140, which was used extensively in low frequency cabinets for Bass guitar, Organ, Synths, and subwoofers.   Somehow, JBL managed to improve on the D140 with its replacement.

Here's some information from JBL:

El40 380 mm (15 in)
The El40 is specially designed for the bass guitarist or keyboard player who wants a bright, sharply defined sound.  Bass notes are projected with an incredibly strong punch, and overtones are crisp and clear. The El40 is capable of producing extremely high sound pressure levels with efficiency that’s unmatched by any other bass speaker except our own El45.

El40-8

• Electric bass, organ low frequency reinforcement
• 380 mm 15 in
• 8Ω
• 400 Watts Continuous Program,  200 Watts Sine wave
• High Sensitivity: 100 dB SPL 40-2500 Hz, 1 Watt @ 1 Meter
• High Output:  >128 db 400 Watts @ 1 Meter

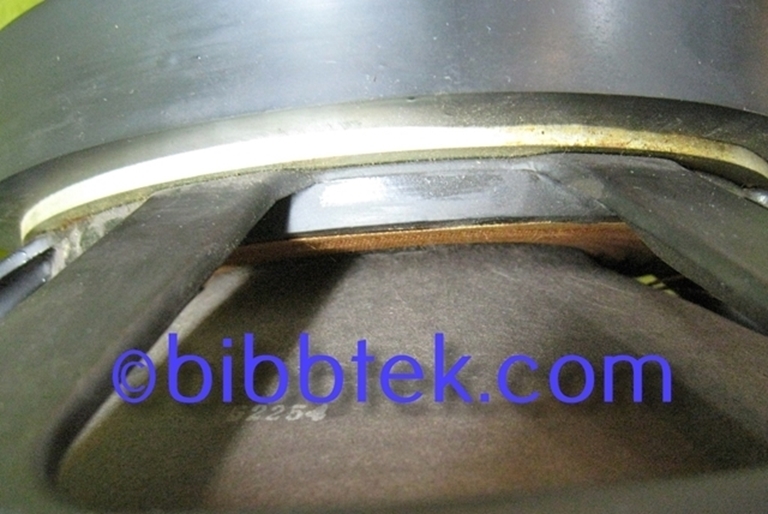

• 102 mm 4 in Voice Coil
• Edge Wound Copper
• Vented Pole Piece
• Precision Cast Frame
• 18lb Magnetic assembly
• 1.35 tesla (13,500 aauss)
• Cutout for Front mount:  14"
• 22 lb

ThieleSmall Parameters

• fs(Hz)  32
• R, (ohms) 5.5
• Qms   5.0
• Qts:  .17
• Qes:  .19
• Vas ft3:  10.5
• Sd: in2:  138
• Vd  (In3):  19
• Le mH:    1.1
