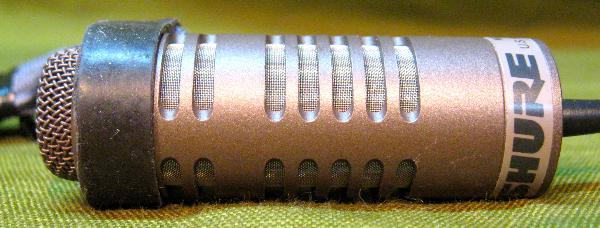

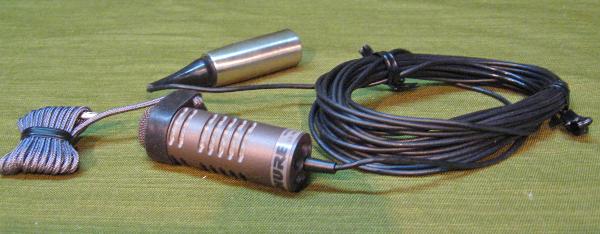

Shure AMS28 Lavalier Microphone

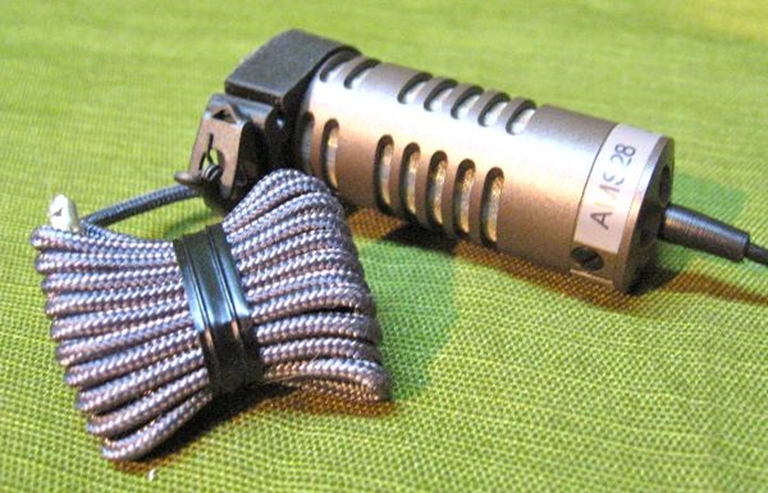

Many of these microphones are unused NOS and still have the original ties on the lanyards.

Features:

-Microphone only activates for sounds originating within + 65° of front axis

-Low vibration and hum sensitivity

-Frequency response tailored for voice

-Cardoid polar pattern

-Acoustically optimized for chest-worn operation

-Extremely flexible long-life cable

Installation:

sembly, place the lavalier cord around the user's neck and se-

cure the free end of the cord in the slot at the side of the assem-

bly.

2. Adjust the cord length so that the AMS28 is 200 to 250 mm

(8 to 10 in.) below the user's mouth.

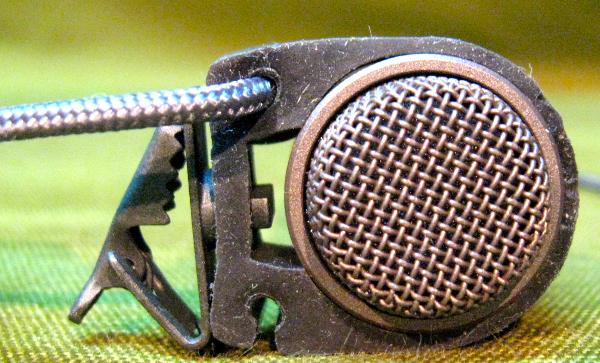

3. Fasten the clip to the user's clothing and pull the cord through

the slot to take up slack. If desired, the clip can be rotated for

left or right fastening, or it can be removed by turning it to the

vertical position and pulling straight out.
