Symetrix 525 Compressor/Limiter

Symetrix 525 Dual Gated stereo compressor limiter, 1 RU, with metering. Excellent Condition.

Availability: 1 in stock

Old price: $229.00

Price: $195.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

FEATURES

Simultaneous compress/limit, expand/gate, automatic program controlled operation
Program-controlled system analyzes incoming signals
Adjusts attack and release times accordingly
Controls very wide dynamic range signals
Reduces noise
Stereo or two-channel operation
Used for live sound reinforcement, high level stage monitors, recording, video post production, audio duplication, and video transfer

SPECIFICATIONS

Comp/Limiter: Max gain reduction: 40dB

Ratio: 1:1 to 20:1

Threshold: -50dBm to +20dBm

THD: <.035%

Exp/Gate: Max attenuation: 60dB

Ratio: 4:1 (soft knee)

Threshold: 0dBm to -60dBm

THD: <.035%

Overall: Frequency Response: 20Hz - 20kHz +0, -1dB

Dynamic Range: >100dB

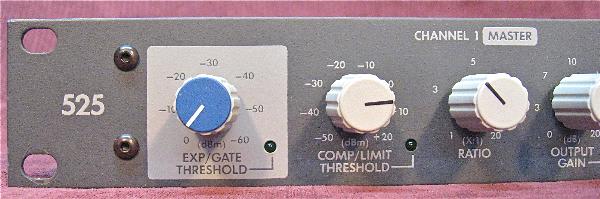

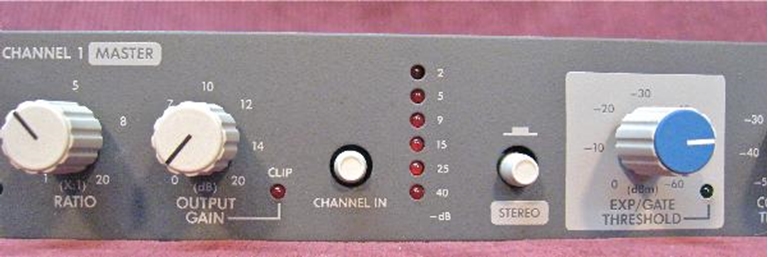

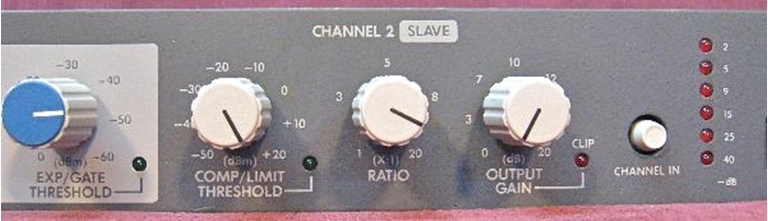

Controls: (x2) Exp/Gate Threshold, Comp/Limit Threshold, Ratio, Output Gain

Switches: (x2) Channel In

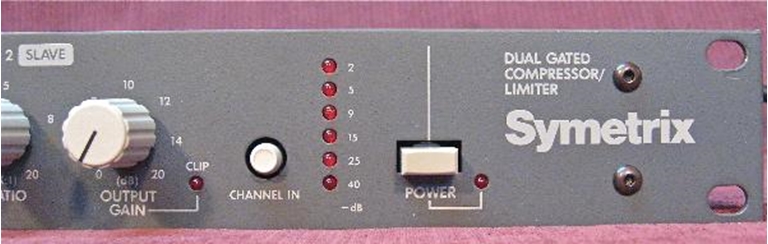

Overall: Stereo, Power
