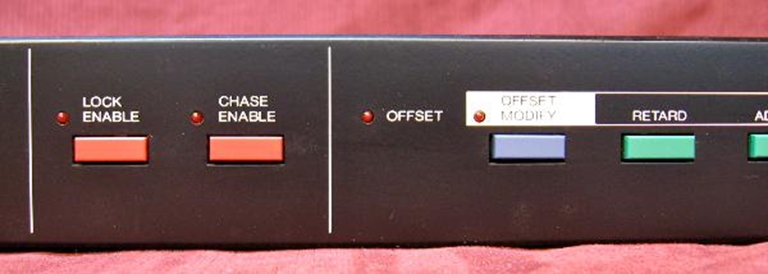

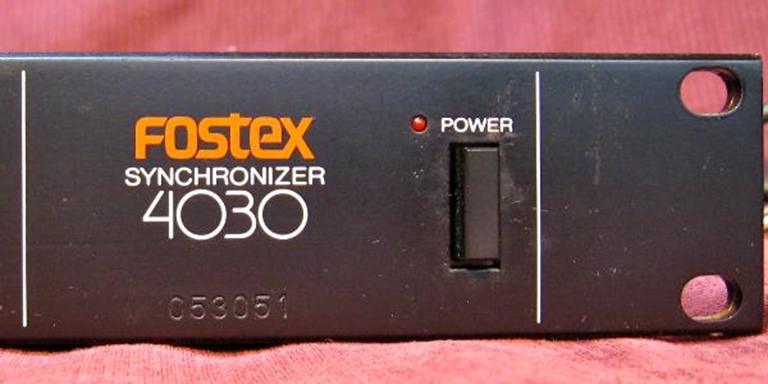

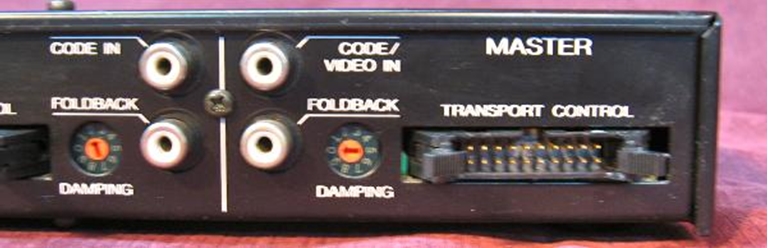

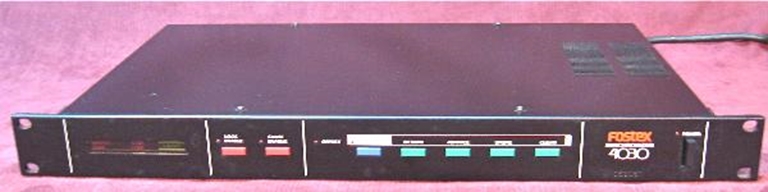

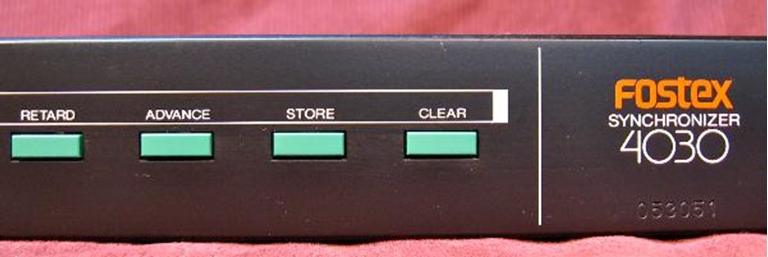

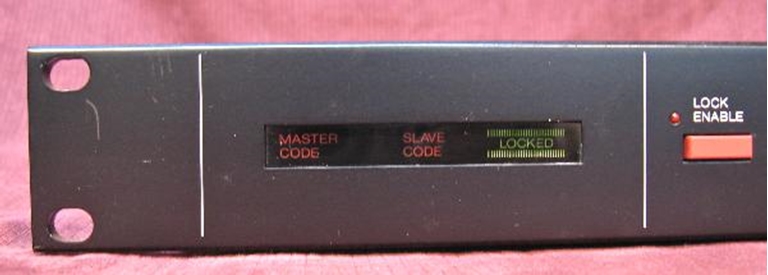

Fostex 4030 Synchronizer

This unit was tested when listed and was functioning fine, the overall cosmetic condition is Very Good.

Please note:  The lack of accessories for this unit makes testing beyond powering up the unit impossible.

Synchronizer system for precise synchronization of audio and video decks. Professional, flexible and comprehensive subframe synchronization. Fast and precise locator function.

Specifications

• Typical lock-up time rate: 5 secs. from stop
• Lock-up rate: 1/2 ~ 2 times of play speed
• Time-code signal: SMPTE 30 F.P.S., SMPTE Drop Frame, EBU 25 F.P.S. and Film 24 F.P.S.
• Level: 100mV p-p ~ 10V p-p
• Read Speed Range: 1/2 ~ 2 times
• Machine status: Play, Stop, F.Forward, Rewind, Record

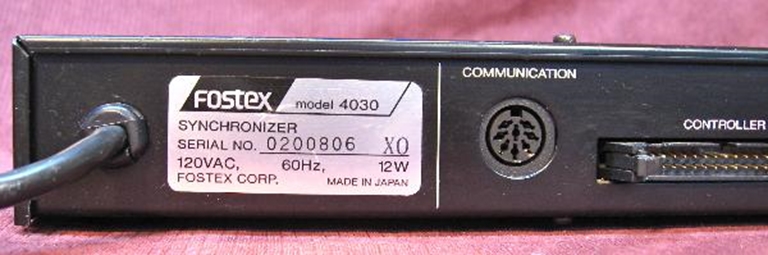

• Communication Bus: Quasi-RS232C, DIN 8 connector

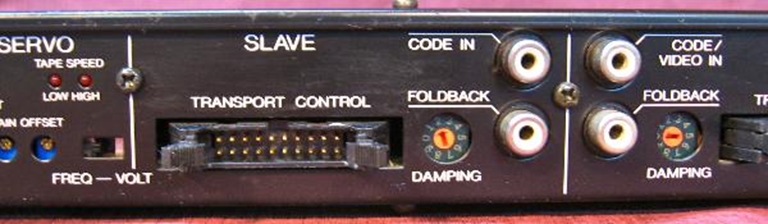

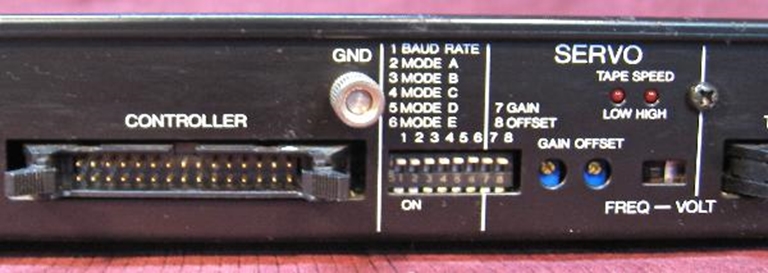

• Controller I/O: 30 pin flat cable connector
• Power: 85 ~ 132V AC, 50/60Hz, 12W
