ADC 48pt Long Frame patch panels, Normals brought out, 2 RU, Model PPA3-18MKIINO.
Fully enclosed, in an 18 inch deep package for easy access from the rear of the rack.

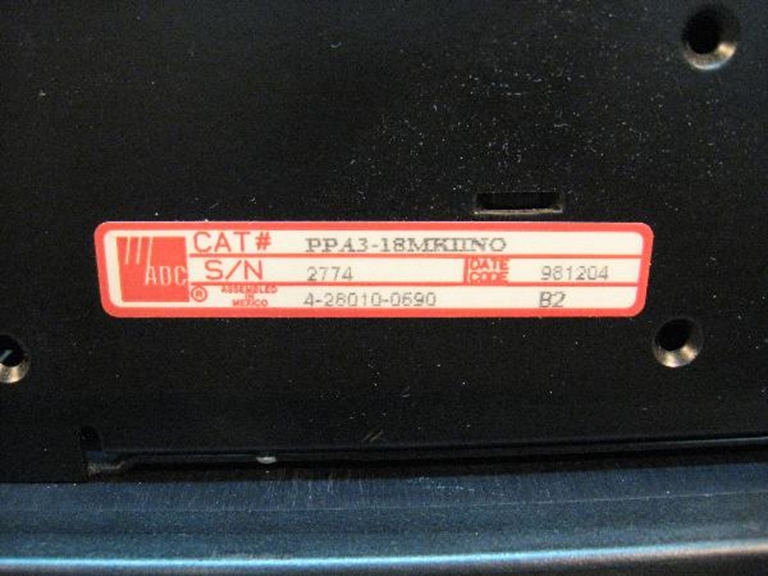

ADC Part number is 4-26790-0020.
The ADC Model PPA3-18MKIINO , these are designed for professional studios using balanced (or unbalanced) wiring. The panels terminate in ADC punch down panels with all of the normals brought out. This allows for any type of normalling required; full, half, none or wired mults at any position along the panel. Grounds are isolated on these panels.
These panels have been carefully removed from service or in some cases, storage, and are in very good physical and cosmetic condition. It's easy to damage the punch down terminals by just carelessly ripping the old wiring off.
These panels list for more than $995 and are selling for over $800.
Save a bundle on your studio or remote truck installation with these panels.

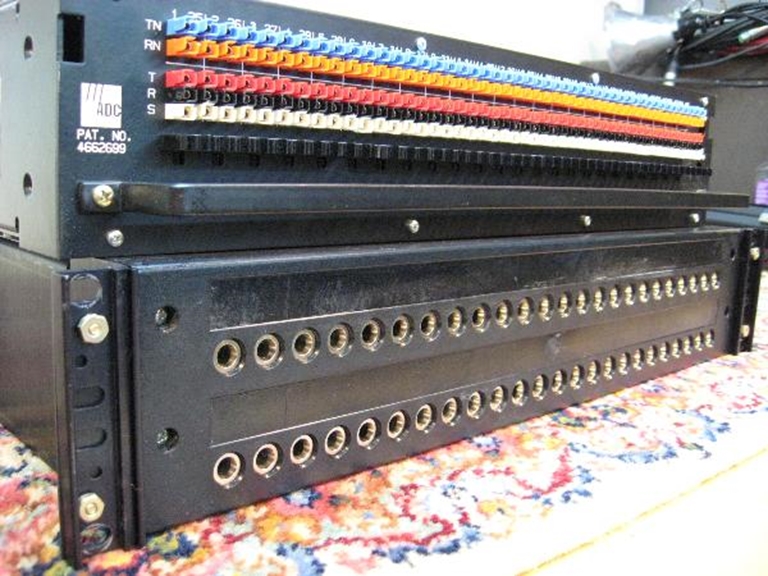

The panels are 2 rack units high, with a total of 48 jacks in 2 rows of 24. The punch panels are on the rear of an 18 inch deep closed black metal case. This protects the jack field and wiring from dust and physical damage. All Normals are brought out on QCP terminals with a tie bar.
The Net weight is 16 pounds per panel. Shipping weight is approximately 21 pounds.
You can see the latest version here: https://www-wsp.adc.com/ecom/catalog/hierDisplay.do?ITEM=OND83898&PREV=OND63475
The following copy is courtesy of the ADC website:
The PPA3-18MKIINO is a two rack unit, 3.5-inch, 2 by 24 longframe Pro Patch™ patchbay with QCP MKII termination, 18-inch chassis, and normals-out audio normalling.
Ready to meet any audio patching requirement, Pro Patch professional audio patchbays offer an extensive selection of options. Models are available with standard or stereo-spaced longframe jacks, bantam jacks, and a variety of backplane connector types. MK II models come with QCP II, EDAC, or AMP backplane connectors and fixed cable support bars. All models offer a wide choice of normals, a tough powder coated chassis, and solderless internal wiring for outstanding reliability.
Features
Rigorously tested to meet exacting military and telecommunications industry standardsExcellent reliability and durability

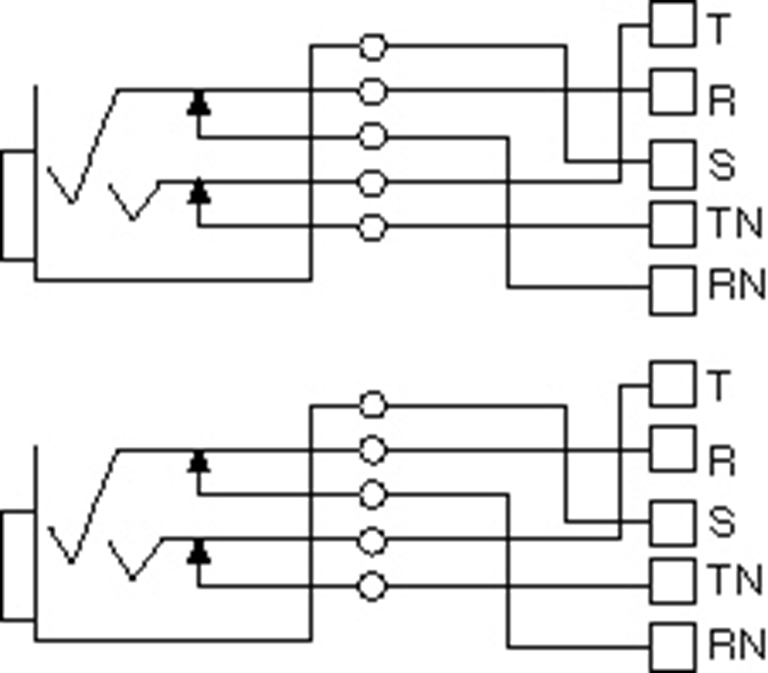

Audio Normalling
All contacts from top and bottom jacks are brought out to the rear termination panel or connectors. The installer can choose any combination of normals strapped, half normalled, or no normals at the rear of the panel.
|
High-quality longframe WECO jacks with self-cleaning wiping action
|
Superior reliability
|
|
|
|
QCP MKII or QCP MKIV punchdown system with split cylinders for gastight connections
|
Quick and easy termination
|
|
|
|
Epoxy powder-coated steel chassis
|
Exceptional protection and durability
|
|
|
|
|
|
Product Drawing
|
|
Audio Normalling
All contacts from top and bottom jacks are brought out to the rear termination panel or connectors. The installer can choose any combination of normals strapped, half normalled, or no normals at the rear of the panel.
|
