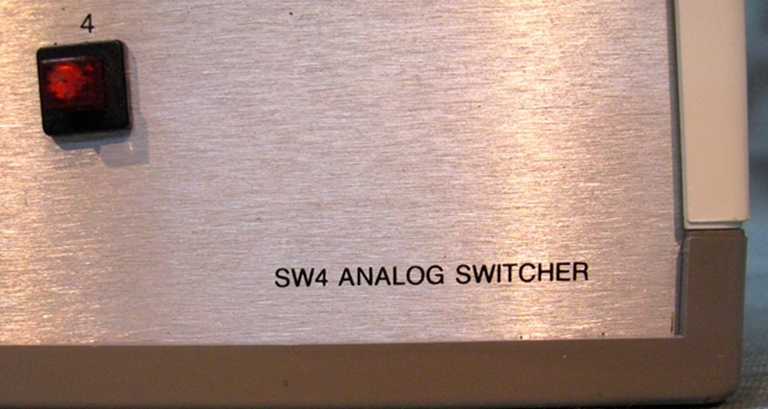

Extron SW4

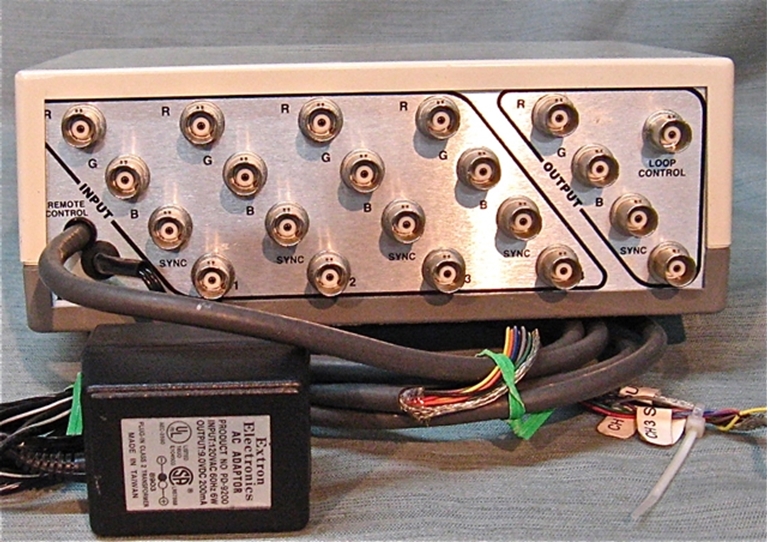

A Four Input RGBS Switcher with External Power Supply & a cabling for a wired remote. In Gd condition. Please Note the remote cable is stubbed off.
Availability: In stock
$19.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

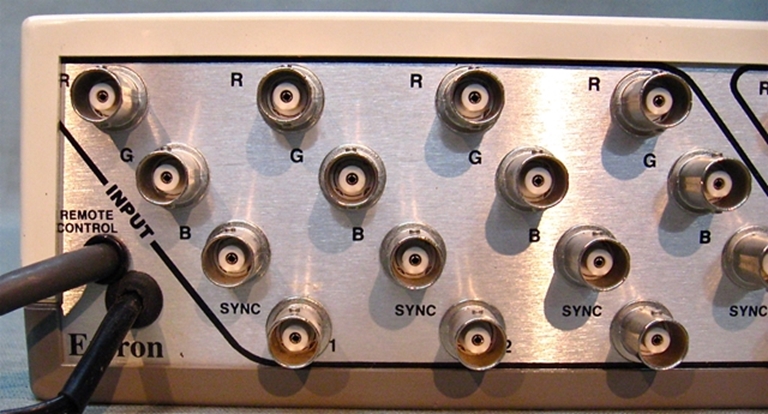

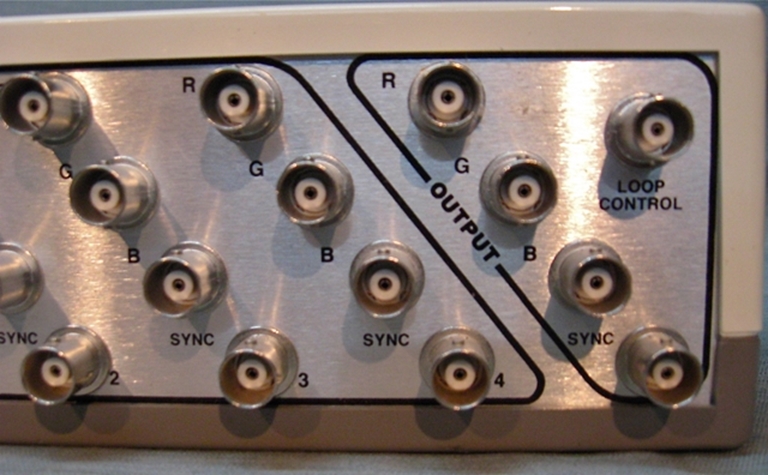

This Extron Model is a 4 x 1 Switcher; it has 4 RGBS inputs (BNC Connectors) with a single RGBS output, and stubbed off wiring for an external remote.

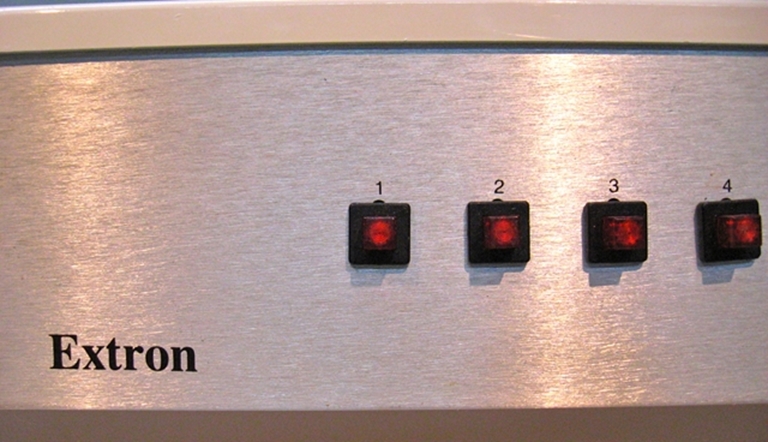

This unit has been tested with Combined composite signals and is working perfectly in Manually switched mode.

If you are interested in the SW4, or any of the Extron Products on bibbteck.com, we'd be happy to answer any questions you might have prior to making a selection.

The SW4 is an early version of the SW4ARMX series, and there is no data available for the SW4.

Here is the manufacture's Data For the SW4ARMX:



Video
Gain Unity
Bandwidth 600 MHz (-3dB), fully loaded
Crosstalk -70dB @ 10 MHz
Video input
Number/signal type 2, 4, or 6 analog VGA-UXGA RGBS, RGsB, RsGsBs, component video, S-video
 or NTSC/PAL/SECAM composite video
Connectors 2, 4, or 6: x 4 BNC female
Impedance 75 ohms
Horizontal frequency 15 kHz to 145 kHz
Vertical frequency 30 Hz to 170 Hz
Return loss -30dB @ 10 MHz
External sync (genlock) SW 4 and 6 AR MX only: 0.3V to 0.4V p-p
Video output
Number/signal type 1 analog VGA-UXGA RGBS, RGsB, RsGsBs, component video, S-video
 or NTSC/PAL/SECAM composite video
Connectors 4 BNC female
Minimum/maximum levels Analog: -5.0V to +5.0V p-p
Impedance 75 ohms
Return loss -30dB @ 5 MHz
DC offset ±5mV maximum
Sync
Input type 2, 4, or 6 analog RGBS, RGsB, RsGsBs
Output type 1 analog RGBS, RGsB, RsGsBs
Standards NTSC, PAL, SECAM
Input level 0.5V to 5V p-p
Output level Same as input
Input impedance 510 ohms
Output impedance 75 ohms
Max. propagation delay 40 ns
Max. rise/fall time 4 ns
Polarity Positive or negative
Control/remote — switcher
Serial control port RS-232, 9-pin D female connector
Baud rate and protocol 9600, 8-bit, 1 stop bit, no parity
Serial control pin configurations 2 = TX, 3 = RX, 5 = GND
Contact closure 25-pin D female connector
Extron remote key pad control Extron KP 10 keypad: connects to the 25-pin D female connector
IR controller module Extron IR 101: connects to the RS-232 9-pin D female connector
Program control Extron's control program for Windows®
 Extron's Simple Instruction Set™ _ SIS™
General
Power 100VAC to 240VAC, 50/60 Hz, 10 watts, internal, auto-switchable
Temperature/humidity Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, non-condensing
 Operating +32° to +122°F (0° to +50°C) / 10% to 90%, non-condensing
Rack mount Yes, with optional 2U front panel #60-141-01 or 2U universal rack shelf #60-032-01
Enclosure type Metal
Enclosure dimensions 3.4" H x 8.5" W x 6.25" D: (2U high, 1/2 rack width)
 8.5 cm H x 21.6 cm: Wx 15.9 cm D
 (Depth excludes connectors.)
Product weight

     SW 4 AR MX 3.9 lbs (1.8 kg)
